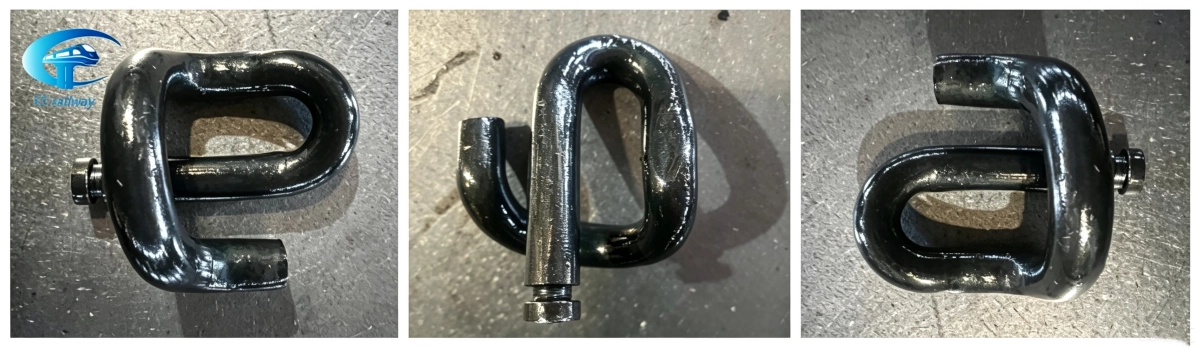

We manufacture Anti-Vandal ERC Mark-V Elastic Rail Clips strictly as per customer drawings. It is used in the concrete sleeper fastening systems of Indian Railways and is compatible with both 60 kg UIC and 52 kg rails. Our Anti-Vandal ERC Mark-V elastic rail clip is used in combination with a dedicated cir-clip, and features an anti-vandal mechanism, which effectively prevents prying-off or unauthorised dismantling. Our Anti-Vandal ERC Mark-V elastic rail clip is made of 60Si2Mn spring steel and hot-forged, with a hardness of 40–44 HRC and a clamping force ranging from 1200 kg to 1500 kg. And It is in compliance with the latest IRS/T-31 specification.

As a dedicated manufacturer of railway elastic rail clips, our elastic rail clips can also be manufactured to meet UIC, EN, AREMA, GOST and TB/T standards. And we have won broad recognition across global markets for reliable high quality and competitive prices.

Anti-vandal ERC Mark-V Elastic Rail Clip

Anti-vandal ERC Mark-V Elastic Rail Clip Specification

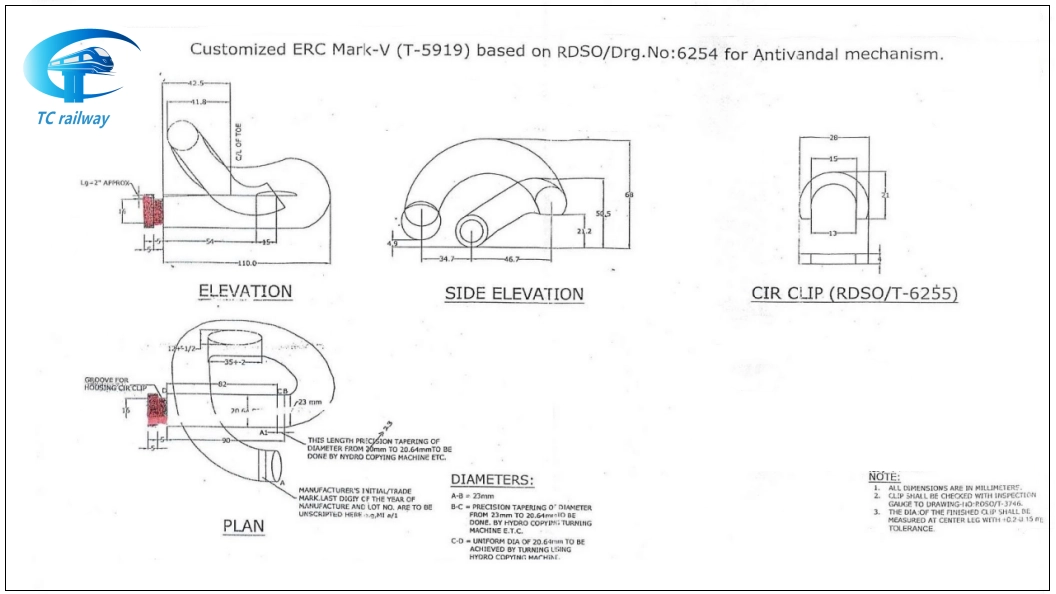

Anti-vandal ERC Mark-V Elastic Rail Clip Drawing

Anti-vandal ERC Mark-V Elastic Rail Clip Technical Requirements

Diameter Specifications：

A-B = 23mm. B-B-C: Precision tapering of diameter from 23mm to 20.64mm, to be done by hydro copying turning machine etc. C-C-D: Uniform diameter of 20.64mm to be achieved by turning using hydro copying machine.

Inspection Requirements：

All dimensions are in millimeters. Clip shall be checked with inspection gauge per drawing 110-POSO/T-3746.

Tolerance Requirements：

The diameter of the finished clip shall be measured at center leg with ±0.24 mm tolerance.

Accessories:

Cir Clip (RDSO/T-6255), with groove for housing the cir clip.

Marking Requirement:

Manufacturer’s initial/trade mark, last digit of the year of manufacture and lot no. shall be inscribed here.

Note: The technical content is derived from the original RDSO drawing.

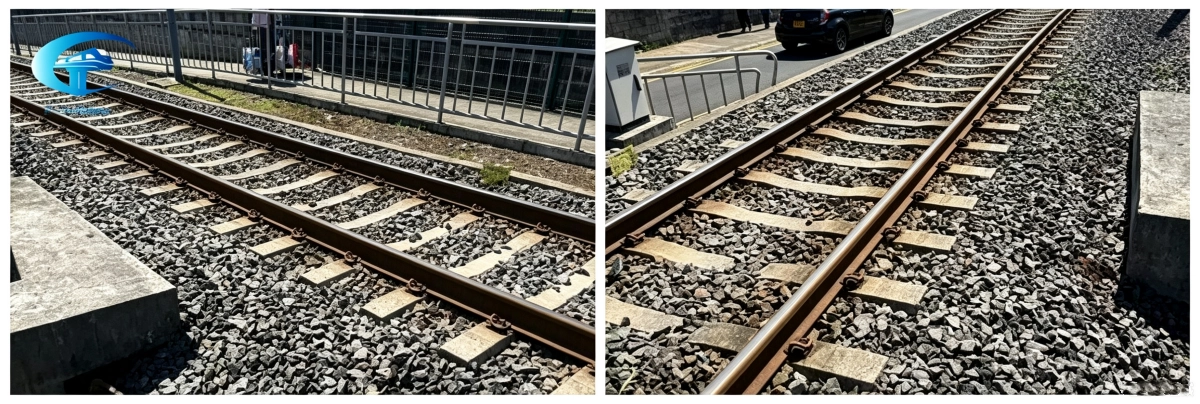

Anti-vandal ERC Mark-V Elastic Rail Clip Application

Professional Anti-vandal ERC Mark-V Elastic Rail Clip Manufacturer

As a professional manufacturer of Anti-Vandal ERC Mark-V elastic rail clips, we carry out the complete production process from raw material processing to finished products. After the round bar stock is cut to length, clamping grooves are pre-machined in it. Then send it to the heating process for hot forging. We maintain strict controls throughout production, to ensure the clamping grooves do not deform during heating and forging. And we then carry out surface anti-corrosion treatment and final inspection, to guarantee the dimensional accuracy of rail clips.

Therefore, as a specialist manufacturer, we produce rail clips of various specifications and can meet international railway standards including RDSO, IRS and UIC. It should be noted that production for this product is relatively slow since clamping grooves need to be pre-machined. Kindly take the lead time into consideration if you require this product.

Certificate

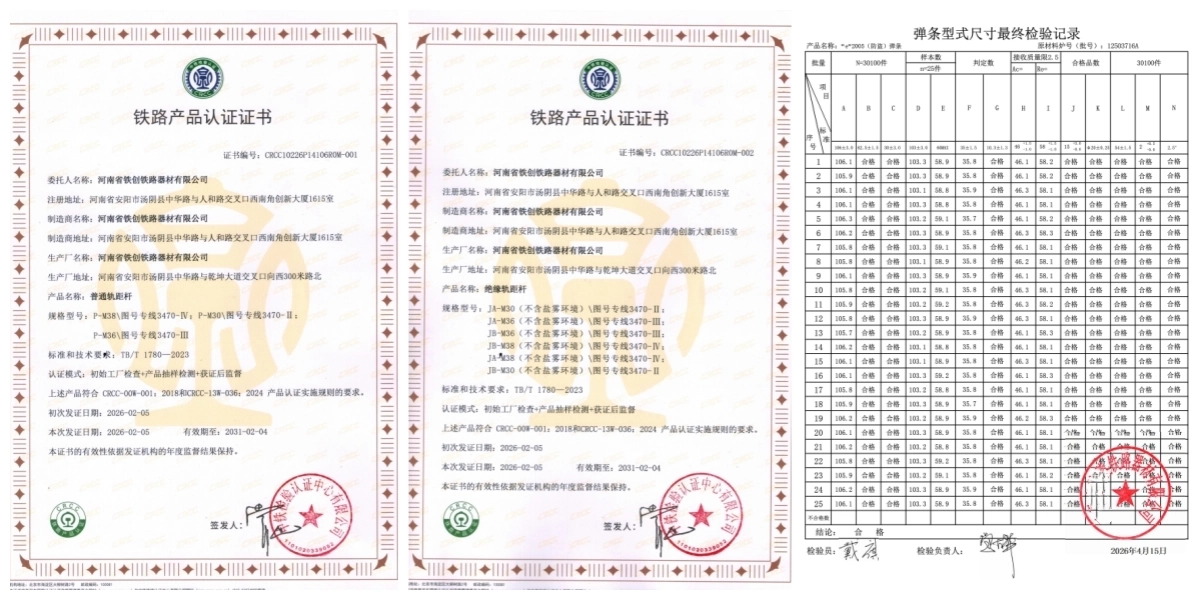

We conduct thorough quality inspection across all production stages for elastic rail clips, with full testing of raw material composition, metallurgical structure, hardness and finished clip geometric dimensions. And all our railway products are approved by official CRCC railway certification. We can provide complete test reports of raw materials and finished geometric dimensions for every batch, so you can fully trust the quality of our rail clips for your railway projects. Please feel free to contact us for further details.
