Screw Spikes for Railway Turnouts | Custom Turnout Spikes Supplier

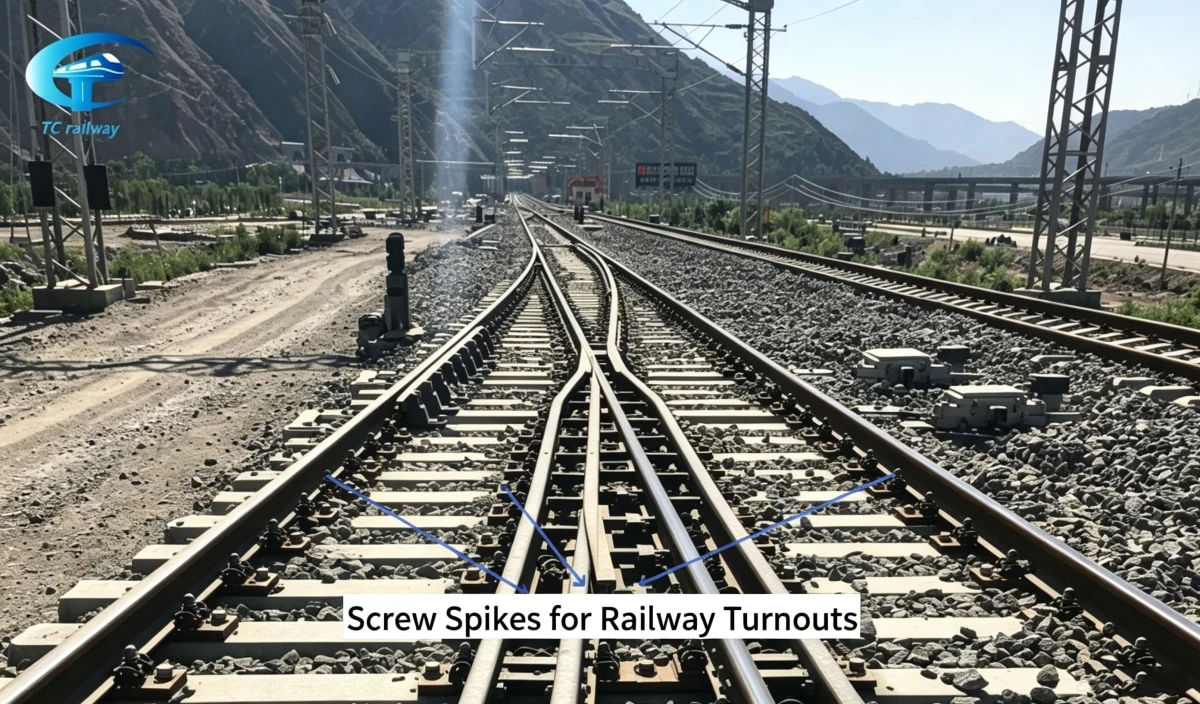

Introduction

We specialize in manufacturing full range of railway turnout components, including the screw spike for railway turnouts. It serves to deliver preload force, for fastening the steel rail via pressure plates or elastic clips and preserving rail stability. Railway turnout works under complex stress and sustains repeated alternating impact and vibration loads. For this reason, the screw spike for railway turnouts is designed with a larger diameter for higher performance compared with ordinary track screw spikes.

As a professional manufacturer of railway fasteners, we supply high performance rail screw spikes for railway turnout lines. Our turnout screw spikes are fabricated from ordinary carbon steel or high‑quality carbon steel. Available steel grades: Q235B, 35#, 35K, 45#, 40Cr. We supply various anti‑corrosion treatments including Dacromet, hot‑dip galvanizing and sherardizing. Customization is available per customer specific requirements. Below are our railway screw spikes for concrete or wooden switch sleeper, 50kg/m or 60kg/m rail turnout, supplied to our European clients. Please refer to the drawing and technical requirements below for details.

1. Screw for Concrete Switch Sleeper, 50kg/m Rail Turnout

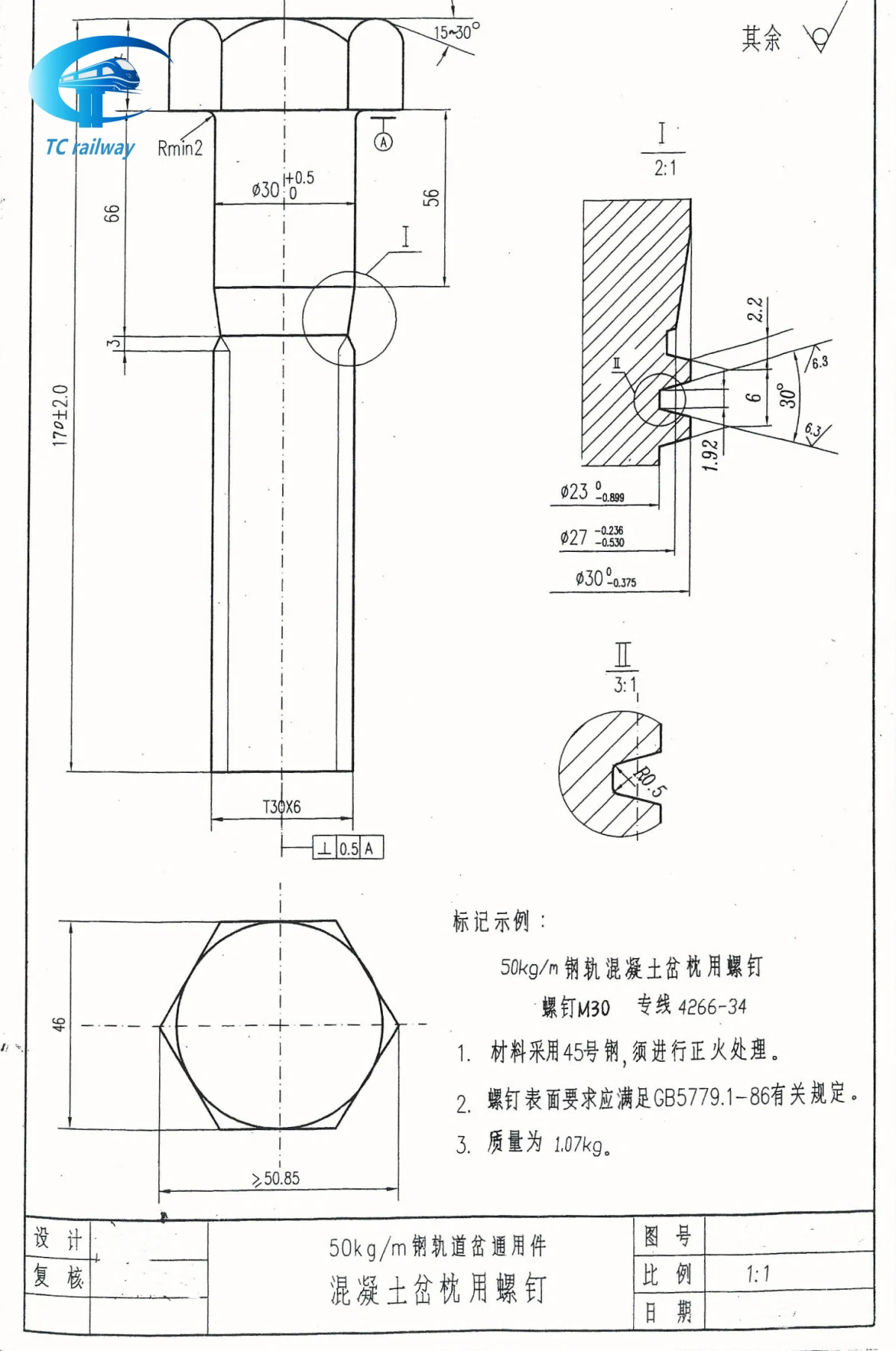

M30 Screw for Concrete Switch Sleeper, 50kg/m Rail Turnout, Technical Drawing

M30 Screw for Concrete Switch Sleeper, 50kg/m Rail Turnout, Technical Requirements:

Marking Example:

The M30 screw is used for concrete switch sleeper for 50kg/m rail, Drawing No. ZX4266‑34

Material:

The raw material shall be 45# steel, normalizing treatment is required.

Surface:

The surface conditions of the screw shall conform to relevant specifications of GB5779.1‑86.

2. Screw for Concrete Switch Sleeper, 60kg/m Rail Turnout

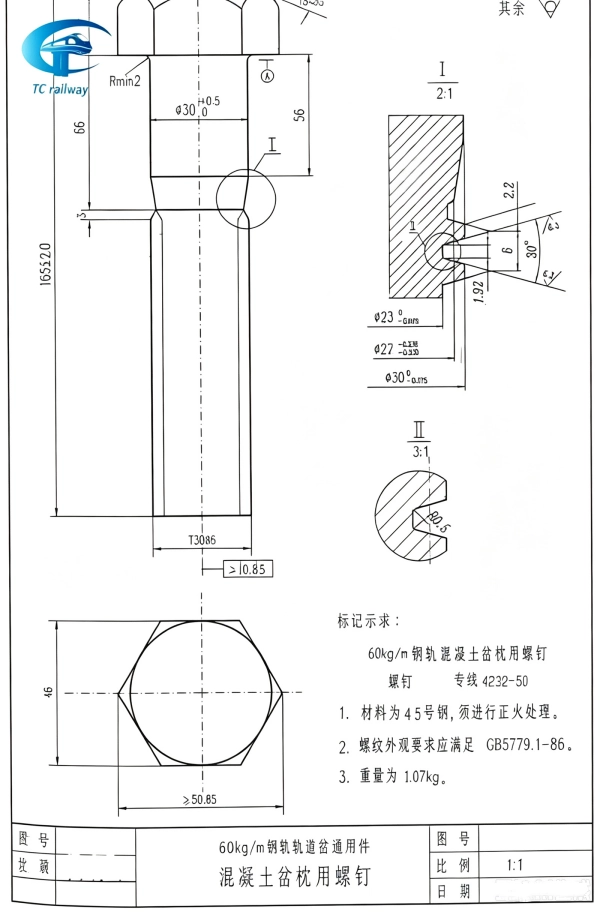

Screw for Concrete Switch Sleeper, 50kg/m Rail Turnout, Technical Drawing

Screw for Concrete Switch Sleeper, 60kg/m Rail Turnout, Technical Requirements:

Marking Example:

Screw for concrete switch sleeper of 60kg/m rail, Drawing No. ZX4232‑50

Material:

The screw is fabricated from 45# carbon steel, normalizing treatment is required.

Thread appearance:

Thread visual inspection shall meet the requirements of standard GB5779.1‑86.

Weight:

1.07 kg.

3. Long Screw Spike for Wooden Switch Sleeper, 60kg/m Rail Turnout

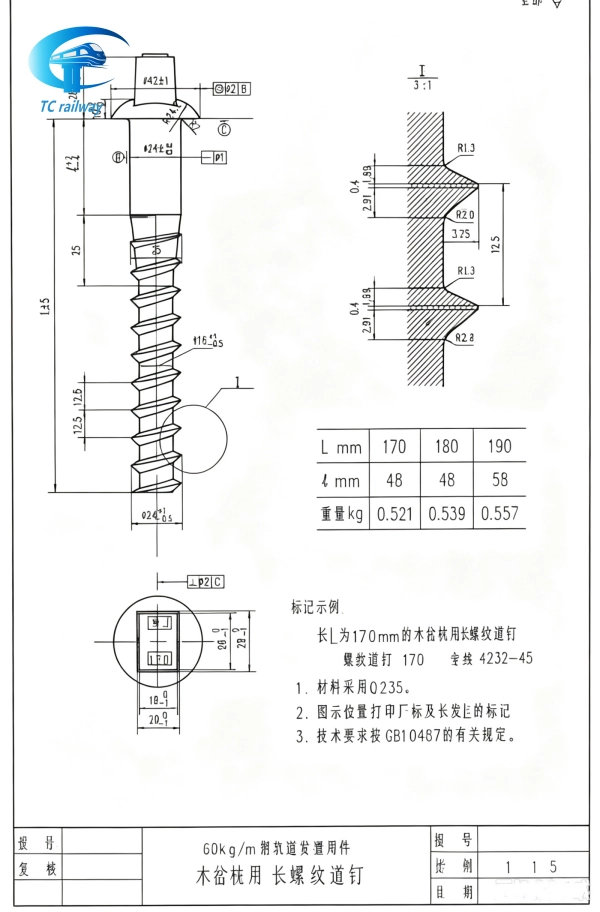

170 mm Long Screw Spike for Wooden Switch Sleeper, 60kg/m Rail Turnout, Technical Drawing

Long Screw Spike for Wooden Switch Sleeper Specifications

170 mm Long Screw Spike for Wooden Switch Sleeper, 60kg/m Rail Turnout, Technical Requirements:

Marking Example:

Long screw spike for wooden switch sleeper with length L=170 mm Screw Spike 170, Drawing No. ZX4232‑45

Material:

The raw material shall be Q235 carbon steel.

Marking:

Manufacturer’s mark and length‑L marking shall be stamped at the position shown in drawing.

Technical Requirements：

The technical requirements shall comply with relevant provisions of GB10487.

Application of Screw Spikes for Railway Turnout

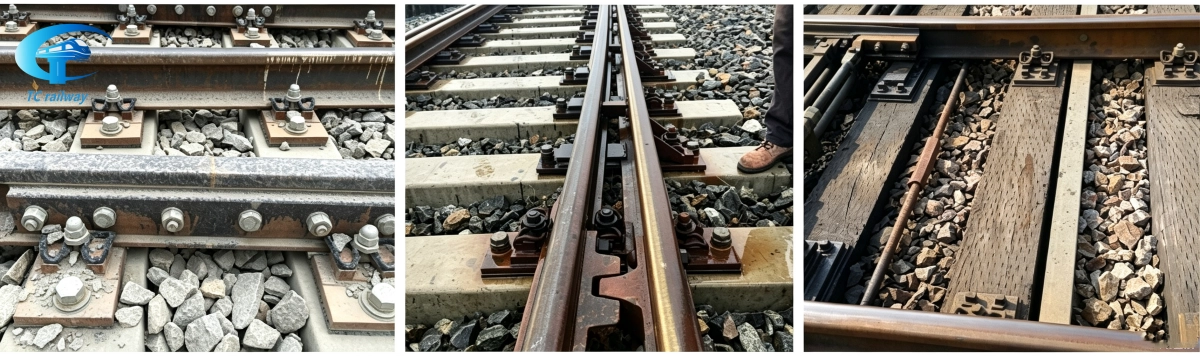

As a professional manufacturer of railway switch screw spikes, we supply screw spikes for concrete switch sleepers and wooden switch sleepers. Our spikes feature high strength and stable performance, they deliver excellent pull out performance and fatigue resistance, ensuring safe operation of railway lines. And our railway switch screw spikes have a wide range of applications. As shown in the pictures below, the two left hand images show the spikes applied to concrete switch sleepers, and the far right image shows their application on wooden switch sleepers. We also support custom made services in line with your project requirements. Feel free to contact us for any needs, and we look forward to establishing cooperation with more overseas clients.

Reliable and Professional Manufacturer of Screw Spikes for Railway Turnout

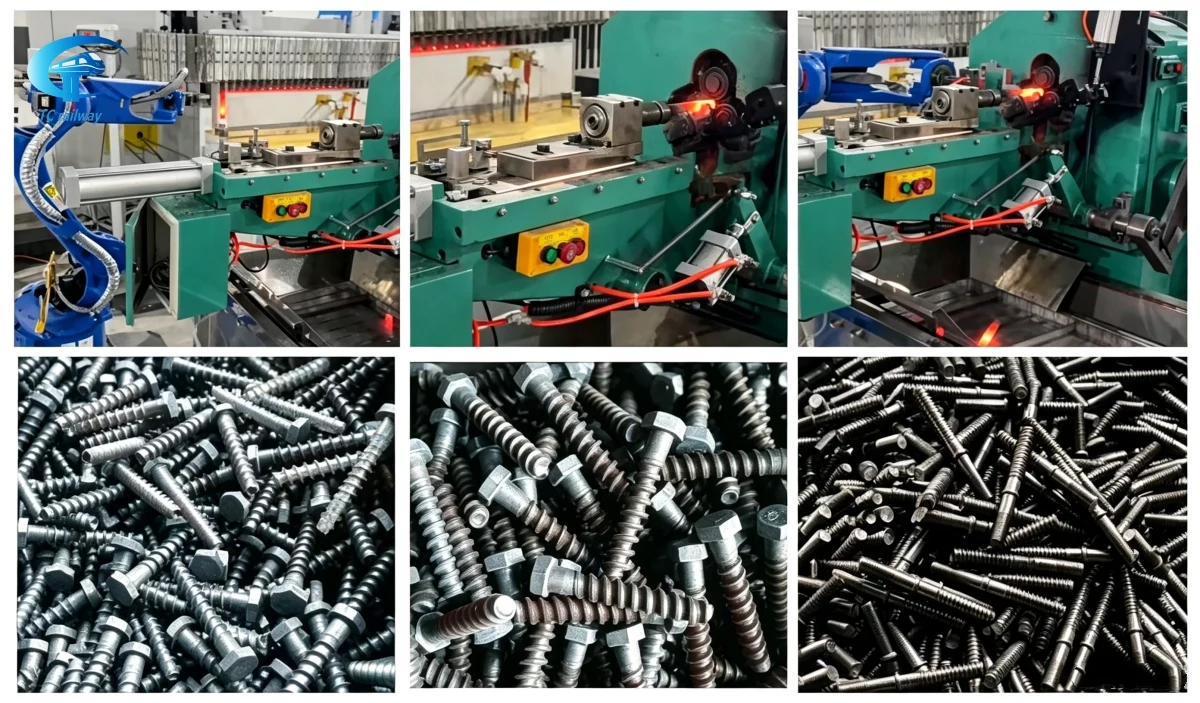

As a reliable and professional manufacturer of screw spikes for railway turnouts, we own complete automated manufacturing facilities with robotic‑arm hot‑forging lines. The photos below display our hot‑forging procedure and finished heat‑treated railway screw spikes. Through precise heating, forging and heat‑treatment processes, our screw spikes obtain superior pull‑out resistance, fatigue performance and fastening performance. We ensure consistent, reliable railway switch screw spikes product quality. In addition to screw spikes, we also supply dog spikes and other rail fasteners for railway turnout systems, such as rail fish plates, rail elastic clips, rail bolts and nuts, rail pads, and other components. And we can provide custom solutions tailored to your specific requirements. Please feel free to contact us with your inquiries.

Quality Control of Screw Spikes for Railway Turnout

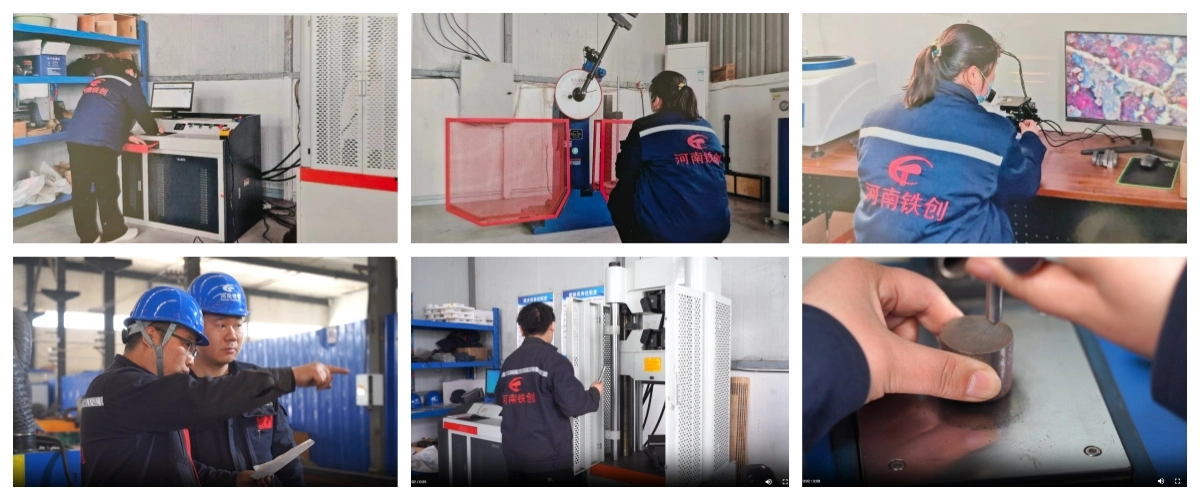

We attach great importance to quality testing, we carry out tests on key properties of screw spike for railway turnout: tensile strength, bite performance, anti-corrosion performance, hardness index and fatigue resistance. Through these tests, we assess the fastening capacity, adaptability and service life of rail fasteners, ensuring the connection stability of track assembly, mitigating risks of loosening and fracture, and eliminating potential operational safety hazards arising from screw spike defects. Therefore, you can trust the quality of our screw spikes. The pictures below show our complete testing equipment. We carefully check and record every production step from order review and raw materials to finished products to guarantee optimum product quality. Feel free to contact us.
