No.12 Single Turnout for UIC60 (60kg/m) Rail | Full Set Supplied

No.12 Single Turnout for UIC60 (60kg/m) Rail

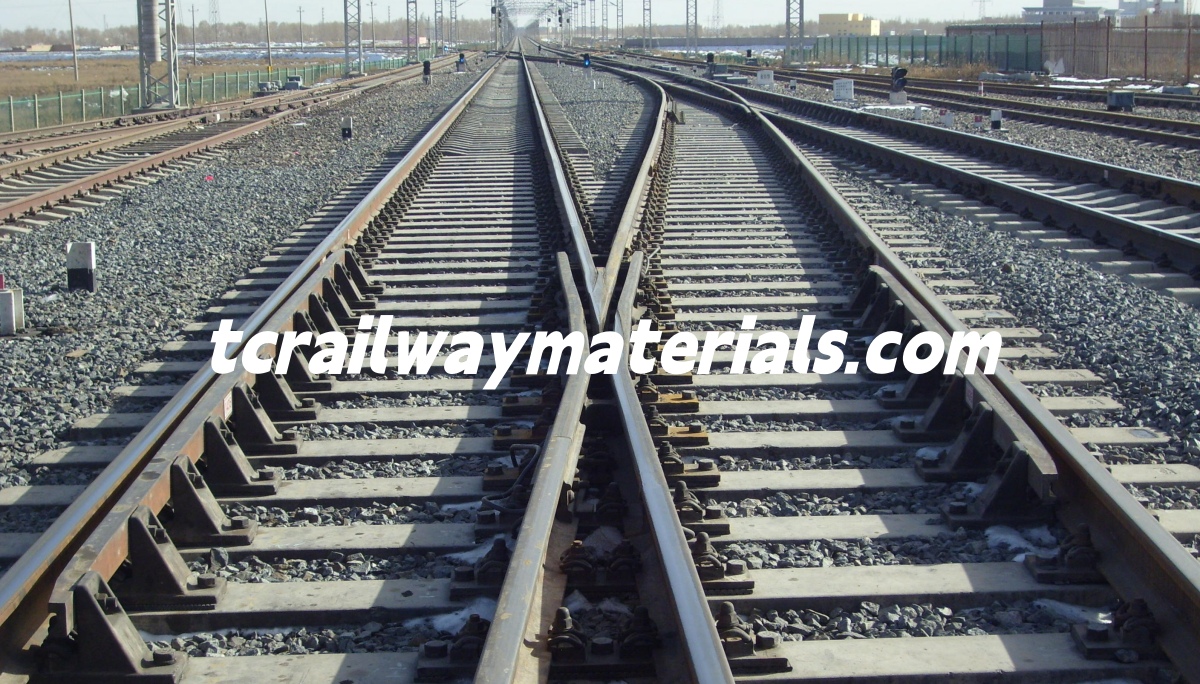

Rail turnout, also called track turnout, railroad switches or rail switch, is a vital component of the railway track, which allow rolling stock to switch or cross from one track to another. Single turnouts are the most widely used type of turnout, accounting for around 95% of all installed turnouts. Our reliable No.12 single turnout for 60kg/m rail is widely used on main railway lines. It consists of switch rail, stock rail, frog, guard rail and complete rail fasteners. The No.12 crossing frog offers smooth transition, stable train movement and high through speed. It is widely used on domestic main lines, intercity railways, rail yards and overseas standard-gauge railway projects.

We are a leading Chinese supplier specializing in rail turnout maintenance spare parts. With rich experience in turnout production, installation and maintenance, we have exported metre-gauge and 1520mm broad-gauge turnouts worldwide. We supply custom-made railway turnout components, full turnout sets and comprehensive technical support. Our annual turnout capacity exceeds 1,000 tons. We have established long-term stable partnerships with many domestic and overseas clients. We also offer turnout maintenance, spare parts and breakdown repair services. Please reach out to us if you have any needs.

Railroad Switch Components

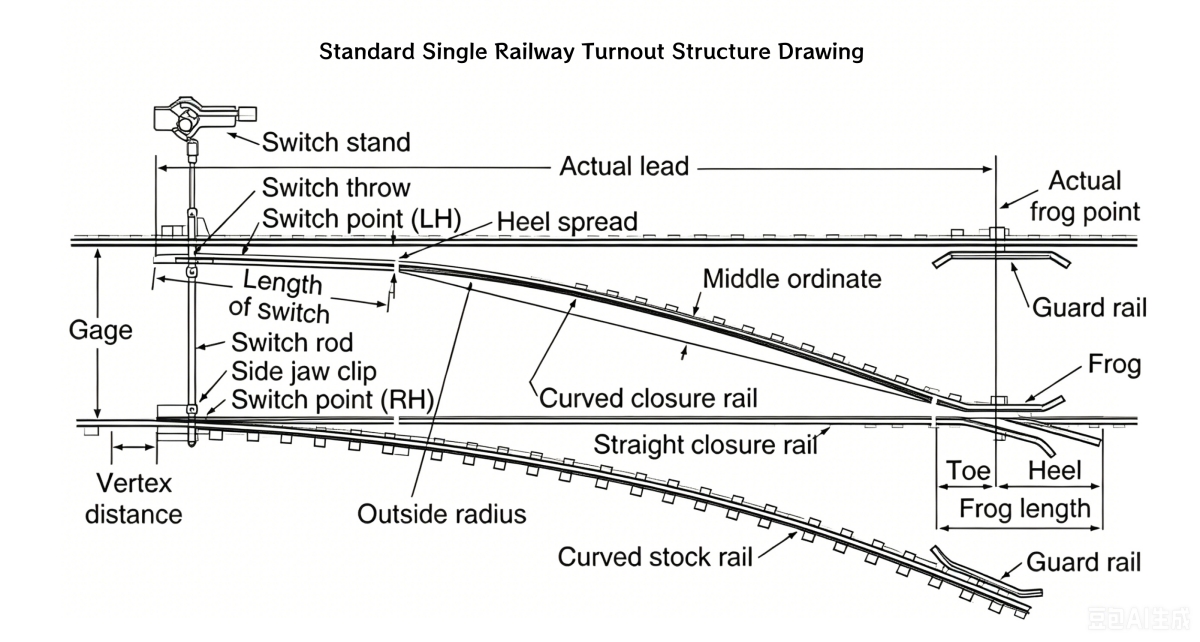

This is the structural drawing of standard single rail switch. All core fittings are clearly marked on the diagram, helping you customers fully understand the layout of every component. Major parts consist of switch stand, switch points, switch rod, curved and straight closure rails, curved stock rail, frog and guard rail. Please refer to the drawing above to learn about the turnout’s structure and all component parts.

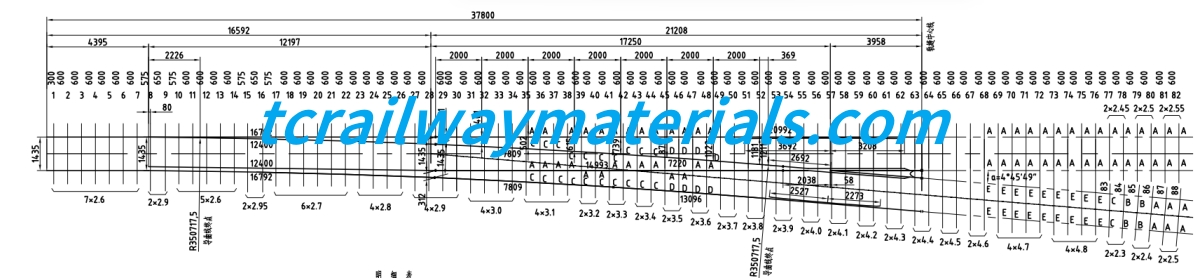

No.12 Single Turnout for UIC60 (60kg/m) Rail Layout Drawing

No.12 Single Turnout for UIC60 (60kg/m) Rail Technical parameters

Train Passing Speed Parameters

Track Installation Dimension Parameters

Switch Blade and Switch Machine Parameters

Guard Rail Structural and Dimensional Parameters

Gauge Block Configuration Parameters

Rubber Pad Thickness Parameters

Supporting Drawings and Implementation Standards

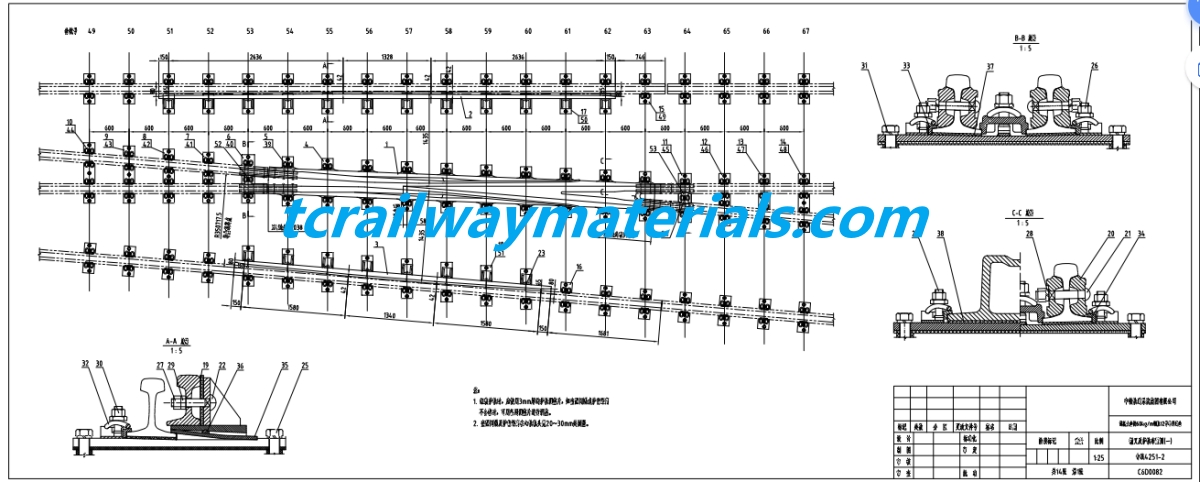

Switch and Guard Rail Fastening Structure Drawing, No.12 Single Turnout (UIC60/60kg/m Rail)

Main Structural Features of No.12 Single Turnout for 60kg/m Rail

The turnout switch uses 12.4 m 60AT elastically bendable switch rails featuring a hidden tip design and a stop assembly at the rail heel. 2. The switch rail has two drive points and split external lock units. The first drive point has a designed travel of 160 mm and the second is 75 mm, with an overall theoretical switching force of 3330 N under normal use. 3. Guard rail tie plates use spring clips to fasten stock rails.

4. We use the split adjustable Type I elastic clip fastening system. Gauge block arrangement: Working rail: No.13, Non-working rail: No.11, High manganese frog: No.13 on one side, No.11 on the opposite; Insulated joints: insulated gauge blocks on both sides; Spare: No.7~17 gauge blocks for field adjustment. 5. The switch is equipped with spring strip slide plates. 6. 5 mm thick rubber pads are placed under rails and guard rail tie plates, while 10 mm rubber pads are installed beneath all other base plates. 7. All turnout rail components feature full-length rail head hardening.

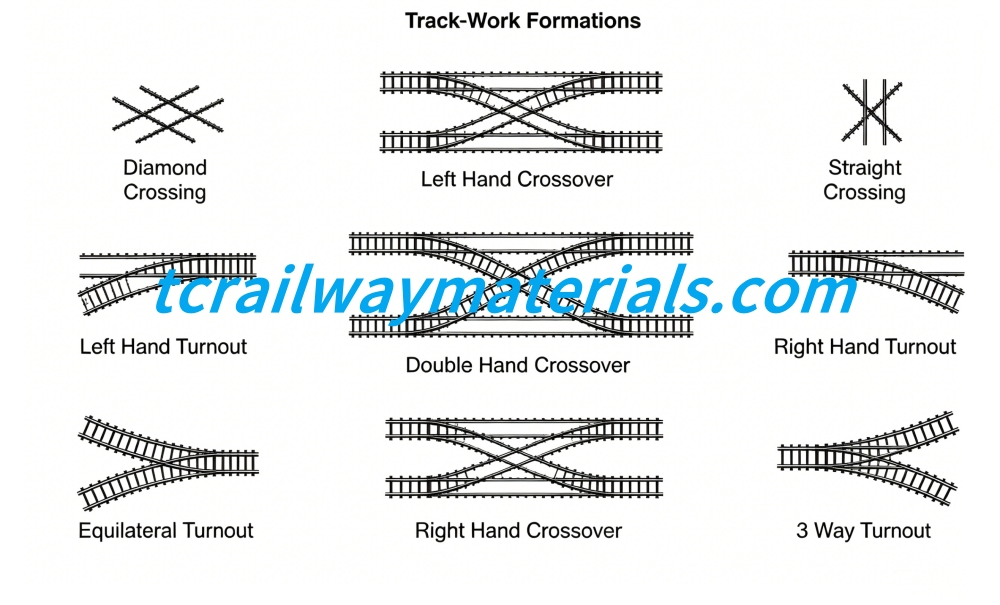

Railway Turnout Types

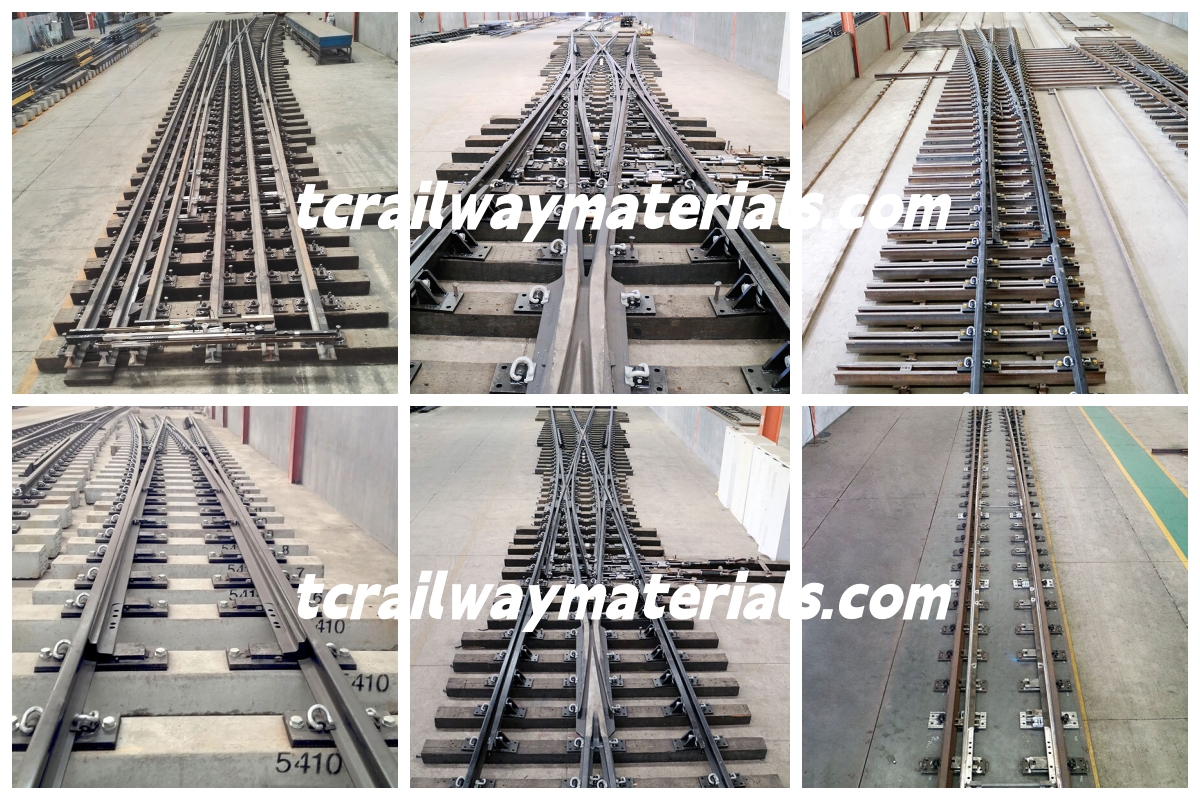

Various Types of Turnouts in Railway for Sale

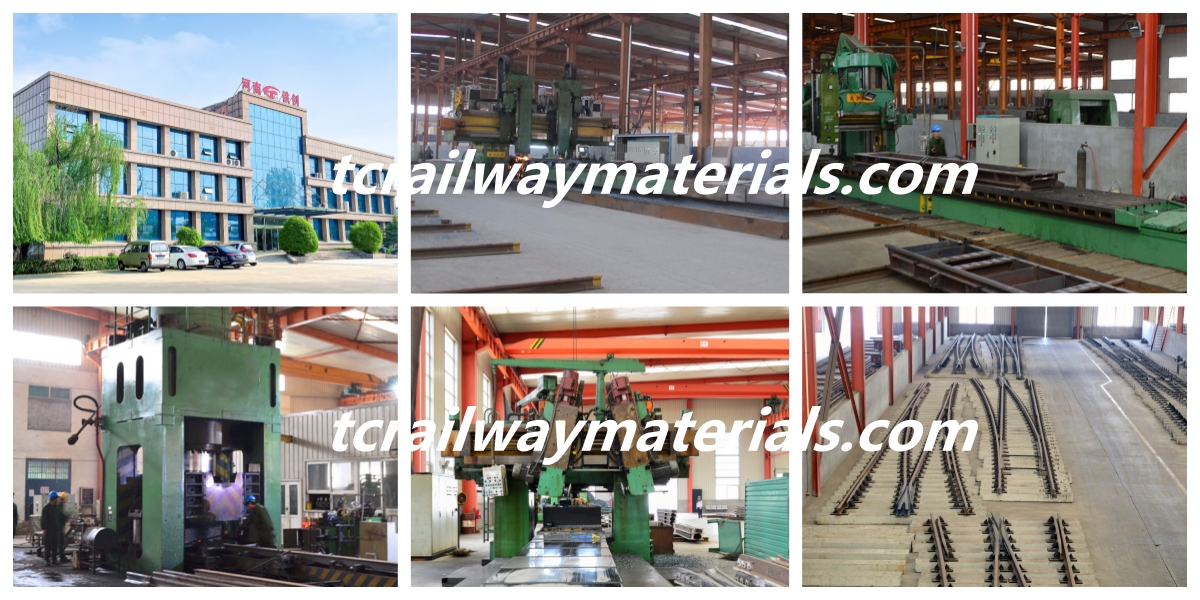

Since 2015, we have been engaged in the development, design and production of railroad turnouts and track accessories. We own three professional workshops for turnout production, high manganese steel casting and forging machining. Equipped with 83 sets of top-class large equipment and more than 300 sets of medium and small production equipment, our annual turnout output exceeds 1,000 tons. We offer various types of turnouts in railway, including single, symmetrical, three-way and crossover designs with full-range supporting components, delivering full-set one-stop solutions for worldwide railway turnout construction. We are a reliable and experienced manufacturer of railway turnouts, if you have any needs, feel free to contact us. We look forward to establishing long-term cooperation with you.

We are the relaible and trustworthy railway turnout supplier

We are an professional and experienced manufacturer of railway products. We have been manufacturing railway products for 10 years. Our factory occupies 80 acres, equipped with modern production equipment and mature technology, with an annual output of 20 million pieces. We sincerely welcome customers from all over the world to visit and inspect our factory. We can produce various railway products, including Rail fasteners: rail clips, rail fish plate, Frozen joint bar, Glued joint bar, Rail brace, Gauge rods; Railway turnouts and parts: rail base plates, slide plates, spacer blocks, Machined Turnout Parts, Complete Turnout. We also supply rail milling trains and railway maintenance tools. We can also customize railway products as your needs. Feel free to contact us anytime.

Certification

We are dedicated to developing, producing and marketing railway supplies, and we own more than 20 technical patents. At the same time, We have passed ISO9001, ISO14001, ISO45001 certification and China CRCC railway product certification. And we have obtained admission certification from railway bureaus and can provide railway inspection reports. We are indeed a trustworthy railway product supplier, Please contact us anytime if you have any needs.
