Russian GOST Standard Track Bolts and Nuts

Russian GOST Standard Track Bolts and Nuts

We supply Russian GOST standard track bolts, with available specifications of M22×75, M22×175 and M27×160, complete with matching nuts. They are compatible with P50, P65 and other standard rails, and are ideal for all GOST railway construction projects in the CIS countries and Eastern Europe. Our bolts are available in a variety of materials and multiple strength grades, and all threads are machined in accordance with ISO specifications. We apply strict visual inspection to all finished products to eliminate surface flaws. Traceable stamp marks are pressed onto each bolt. We supply complete certified inspection reports that meet the demands of overseas railway tenders and bulk engineering procurement.

Russian GOST Standard Track Bolts and Nuts Types

1. M22×175 Rail Bolt, GOST 16017

We offer M22×175 rail bolt, GOST 16017. It is a dedicated fastener applied to the middle part of tracks, and used for clamping rail bases and reinforced concrete sleepers. Full sets are supplied with matching nuts, single washers and double washers. Warranty terms: The product is warranted for a cumulative track traffic volume of no less than 100 million tons, with a maximum 3-year warranty after installation.

M22×175 Rail Bolt Drawing, GOST 16017

Specification:

Size: M22×175

Raw material: Low-carbon structural steel

Surface treatment: Zinc plating with zinc chromate passivation, coating thickness: 9 μm to 18 μm

Mechanical strength grades: 4.8 and 5.8

Thread tolerance: 8g

Theoretical weight: 635 kg / 1000 pcs

Matching Nut Specifications:

Standard: GOST 16018

Coating: Identical to that of matching bolts

Strength Class: Grade 5, Grade 8

Thread Tolerance: 7N (7G is acceptable as alternative)

2. M22×75 Railway bolts, GOST 16016

We specialize in manufacturing M22×75 track fastening bolts supplied with complete matching nuts, complying with GOST 16016. It is a separate fastener used to secure steel rails to sleeper bases, available in three styles: Type 1 standard head, Type 1 light head and Type 2.  Warranty: Valid for a cumulative traffic volume of no less than 100 million tons, with a maximum 3-year warranty after installation. Storage requirements: Uncoated components shall be stored with anti-rust treatment for a minimum of 1 year; coated products must be stored separately.

M22×75 Railway bolts Drawing

Specification:

Size: M22×75

Strength grade: 4.8, 5.8

Coating layer: Zinc chromate coating 9~15 μm,

Thread tolerance: 8g

Nominal weight per thousand pieces:

Type 1 Standard Head: 345 kg, Type 1 Light Head: 320 kg, Type 2: 320 kg

Matching Nut Specifications:

Standard: DSTU GOST 16018:2017,

Coating: Same coating as bolts

Strength: Grade 5 / Grade 6

Thread Tolerance: 7N

3. M27×160 Fish Plate Bolt, GOST 11530

Our M27×160 fish bolts are applied to clamp double composite rail joints and insulated rail joints for P65 steel rails specified under DSTU 4344, fully conforming to the requirements of GOST 11530. GOST 11530: Joint bolts warrantied for cumulative tonnage ≥100 million tons, max 3-year warranty after installation. The rail bolts with nuts must be stored by coating type in sealed or ventilated warehouses. Anti-rust treatment keeps them free of rust for at least one year.

M27×160 Fish Plate Bolt Drawing

Specification:

Thread Spec: M27,

Total Length 160 mm, structure as shown in Figure 1

Material: 35 steel (8.8 grade), 40X steel (10.9 grade), alternative steels meeting 8.8 / 10.9 strength available

Tolerance: 8g

Matching Nuts Specifications:

Standard: GOST 11532

Nut strength class: Grade 5 / Grade 8;

thread tolerance: 7N / 7G.

Russian GOST Standard Track Bolts and Nuts Application

We supply the GOST standard railway bolts and nuts cover sizes M22×75, M22×175 and M27×160, which are designed to fasten rail joints together with GOST fishplates. They are compatible with P50 and P65 standard rails, and they are suitable for new construction and routine maintenance of trunk lines, industrial mine tracks and station sidings for all GOST railway projects across the CIS and Eastern Europe. Custom specifications can be produced in accordance with clients’ technical demands. Please do not hesitate to get in touch with us for further details.

We Are A specialized Manufacturer of Fish Bolts and Nuts

We are an professional and experienced manufacturer of railway products. We have been manufacturing railway products for 10 years. Our factory occupies 80 acres, equipped with modern production equipment and mature technology, with an annual output of 20 million pieces. Our bolts and nuts feature stable mechanical performance and excellent anti-corrosion coating. Multiple strength grades are available to fit different load conditions. All they are manufactured in full compliance with GOST specifications, strict factory inspection guarantees consistent quality, while sufficient inventory enables short lead times for your large railway projects. Feel free to contact us.

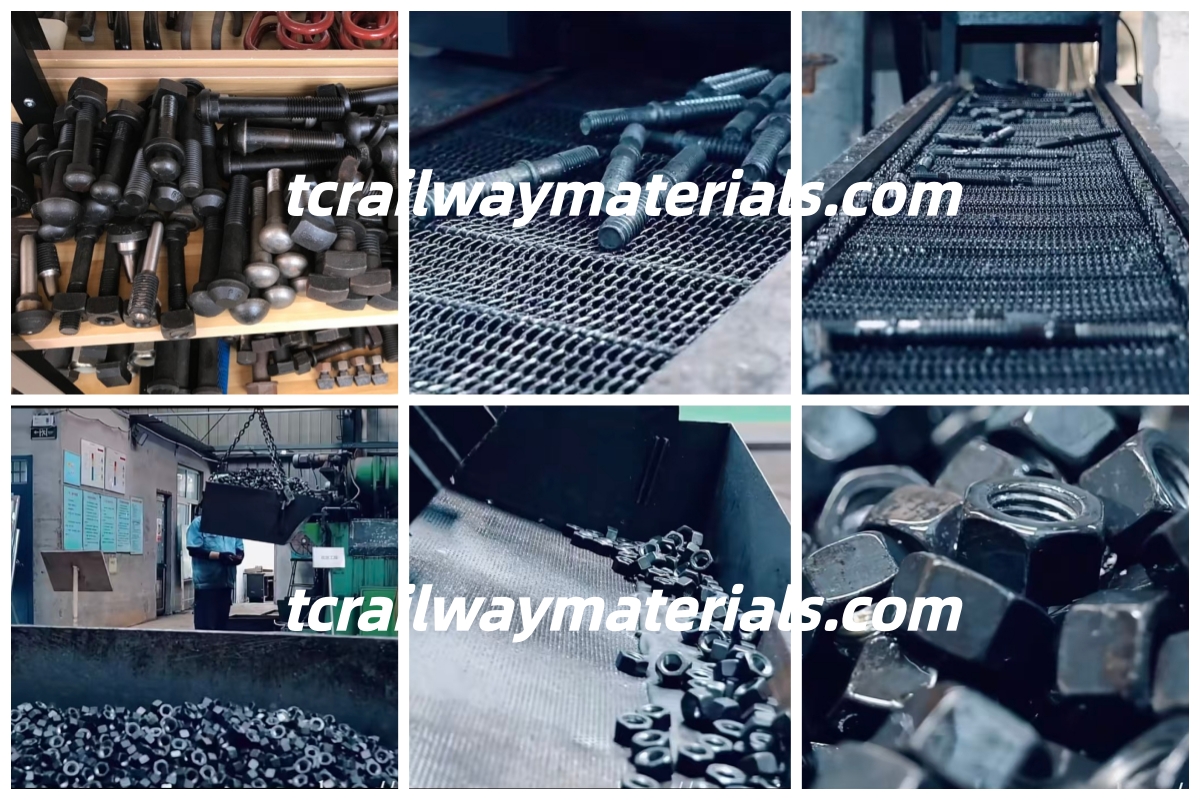

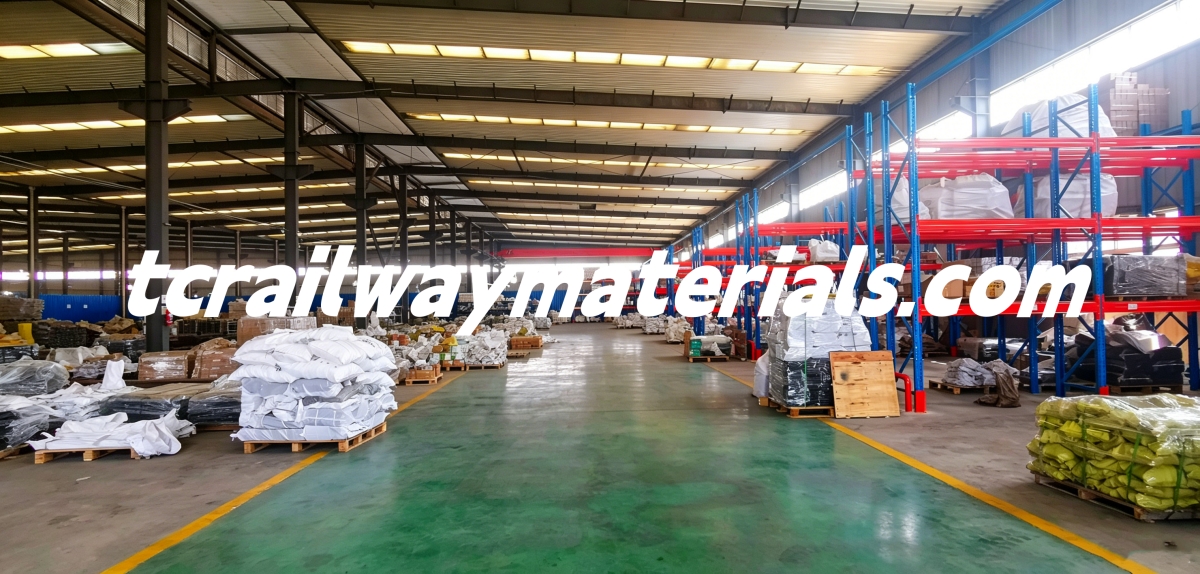

Our Workshop

We are an professional and experienced manufacturer of railway products. We sincerely welcome customers from all over the world to visit and inspect our factory. We can produce various railway products, including Rail fasteners: rail clips, rail fish plate, Frozen joint bar, Glued joint bar, Track bolts and nuts, Rail brace, Gauge rods; Railway turnouts and parts: rail base plates, slide plates, spacer blocks, Machined Turnout Parts, Complete Turnout. We also supply rail milling trains and railway maintenance tools. We can also customize railway products as your needs. Feel free to contact us anytime.
