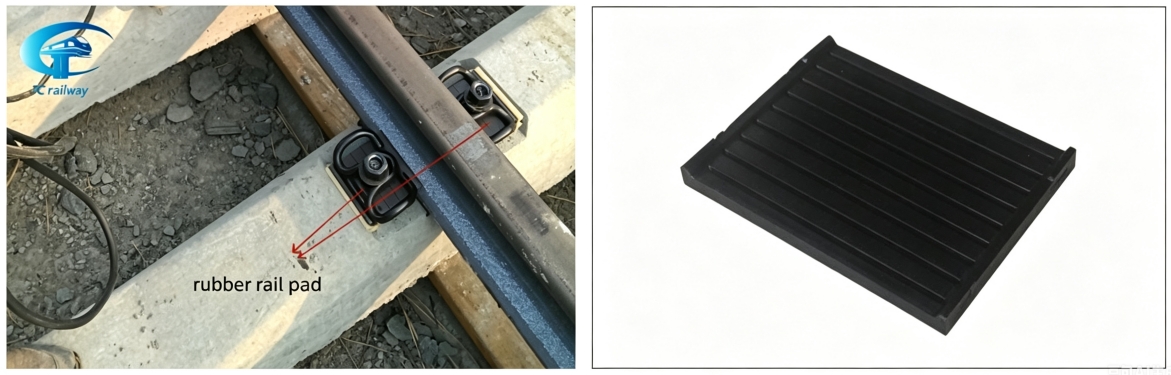

Rubber rail pad，rail rubber pad, or railway rubber pad, as an essential core component of railway track systems, elastic rubber rail pads are laid between steel rails and concrete sleepers, Our elastic rubber rail pads absorb vibration and shock from passing trains, minimize wear on subgrade and concrete sleepers, and provide excellent electrical insulation to ensure stable operation of railway signal systems. As elastic rubber rail pads are exposed to outdoor environments for long-term operation, they have outstanding weather aging resistance as well as excellent high and low temperature resistance.
Types of Rubber Rail Pads

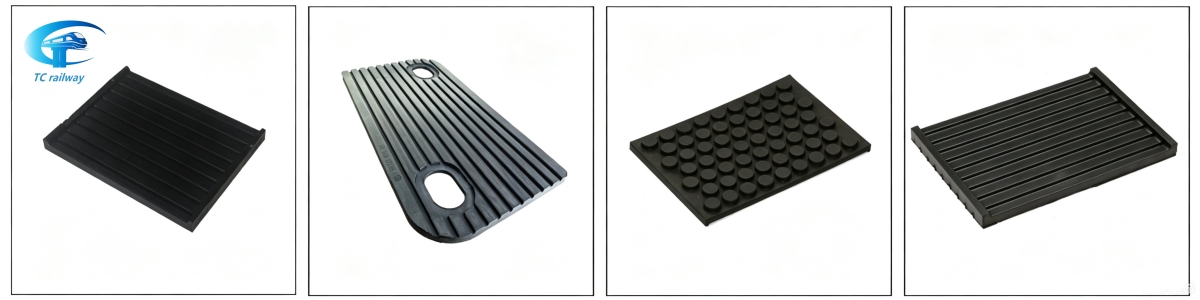

We specialize in manufacturing various rubber pads in railway, including Plain Flat Rubber Rail Pads, Grooved Rubber Rail Pads, as well as other types such as EVA pads and Polyethylene rail pads. Let’s take a closer look below.
1. Plain Flat Rubber Rail Pad
We specialize in manufacturing plain flat elastic rubber rail pads. Each pad has a smooth and flat surface, with no grooves, studs, or corrugations. They are made from premium rubber compound with stable resilience and compression resistance, and delivers consistent shock absorption and buffering performance. They feature excellent cost-effectiveness and are suitable for laying low-speed, light-load tracks. They are widely applied to general railway branch lines, factory sidings and existing track improvements projects. All specifications and dimensions can be customized upon request.

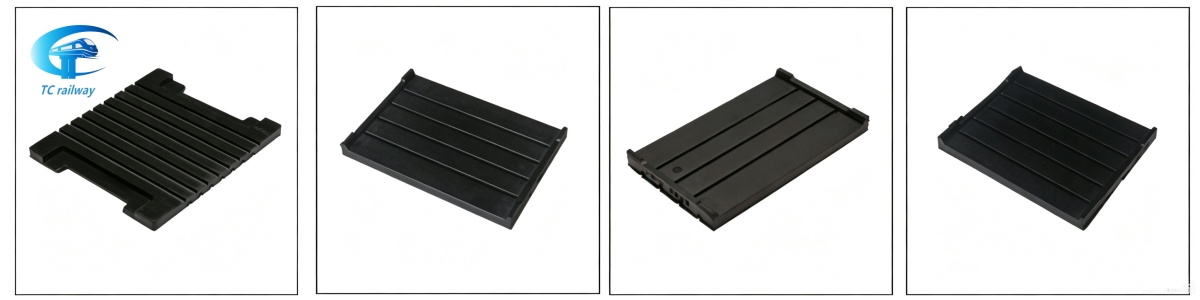

2. Grooved Rubber Rail Pad
We manufacture grooved rubber rail pads, and its surface is designed with diversion grooves, which rapidly drain accumulated water and silt, effectively protecting the rail foot from corrosion. We manufacture our Grooved rubber rail pads via integral compression molding from a wide range of elastic materials. They feature reliable elasticity and compression resistance, buffer train impacts, reduce vibration and noise, evenly distribute track loads, and minimize wear on rails and sleepers. Below is the grooved rubber pad we supply for Myanmar Railway tender projects, detailed specifications are set out below.
Introduction to Grooved Rubber Rail Pads for Myanmar Railway:
Application: Grooved rubber pads (MT rubber shims) for Myanmar railway lines with track gauges ranging from 1000 mm to 1435 mm.
Manufacturing Requirement: Custom-manufactured in strict accordance with technical drawings officially approved by Myanmar Railways.
Raw Material Description: Compression-molded from natural rubber, synthetic rubber or composite rubber blends; material formulas can be fully customized as customer requirements.

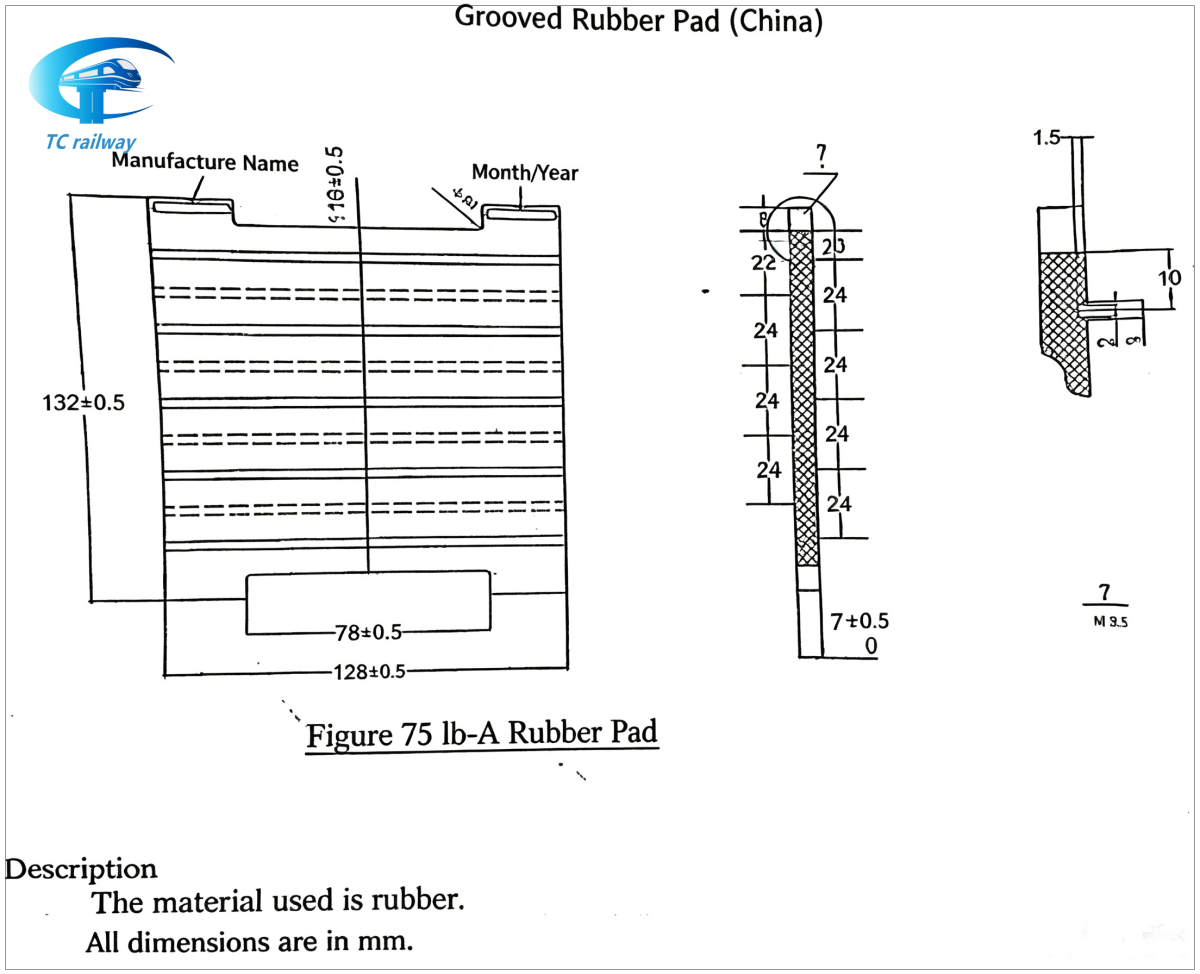

Drawing of Grooved Rubber Rail Pads for Myanmar Railway
Physical Properties of Grooved Rubber Rail Pads for Myanmar Railway
| Performance Index | Minimum Standard | Test Standard |
|---|---|---|
| Hardness | Min 70 Shore A | ASTM D2000 / D412 |
| Tensile Strength | Min 10 MPa | ASTM D3200 / D412 |
| Elongation at Break | Min 250% | ASTM D2000 / D412 |
| Tensile Stress at 200% Elongation | 7.5 MPa | ASTM D2000 / D412 |
| Compression Set (100°C, 24h) | ≤28% | ASTM D2000 / D412 |
| Akron Abrasion Loss | ≤0.6 cm³ / 1.61 km | ASTM D2000 |
| Tensile Strength after Hot Air Aging (100°C, 72h) | ≥8 MPa | ASTM D2000 or equivalent standards |
| Elongation at Break after Hot Air Aging (100°C, 72h) | ≥180% | ASTM D2000 or equivalent standards |
| Brittleness Temperature | -20°C | ASTM D2000 or equivalent standards |
| Ozone Aging (100 PPM, 40°C, 72h, 40% Pre-Strain) | No Cracks | ASTM D2000 or equivalent standards |
Notes: All physical properties comply with ASTM and ISO international rubber testing standards. We are able to provide official factory material test certificates for inspection before shipment.
Visual Appearance Requirements:
The surface of grooved rubber pads shall be flat and smooth, without any defects including air bubbles, visible scratches, bulges, voids, cracks or delamination. All edges are well-trimmed and free of burrs and warpage, showing our rigorous quality control management.
Marking Requirements:
Each rubber pad shall be clearly marked with 4mm characters, including manufacturer abbreviation, brand trademark and production year, to satisfy the traceability requirements of overseas railway projects.
Sampling Inspection:
We implement strict sampling inspection for all mass production batches. Dimensions are verified by random sampling from every 100 pieces. 3 finished pads are randomly selected daily for physical property testing. Any unqualified batches will undergo full inspection and isolated separately to ensure all goods meet standard requirements.
Standard export packaging:
2 pads per bundle, 10 bundles packed into plastic woven bags and secured with plastic ropes. The moisture-proof packaging is suitable for both sea and land transportation.
Performance Test Report of Our Rubber Rail Pads
The table below presents complete actual test data of our finished rubber rail pads; all indicators pass inspection and the measured values surpass the specified technical requirements.
| No. | Test Item | Unit | Technical Requirement | Test Result | Judgment |
|---|---|---|---|---|---|
| 1 | Insulation Resistance | Ω | ≥1×10⁶ | 1.18×10⁹ | Pass |
| 2 | Hardness (Shore A) | Shore A | ≥65 | 71 | Pass |
| 3 | Tensile Strength | MPa | ≥12.5 | 16.6 | Pass |
| 4 | Elongation at Break | % | ≥250 | 310 | Pass |
| 5 | Tensile Stress at 200% Elongation | MPa | ≥9.5 | 12.2 | Pass |
| 6 | Compression Set (100℃×24h, 50% Compression) | % | ≤20 | 7 | Pass |
| 7 | Tensile Strength after Hot Air Aging (100℃,72h) | MPa | ≥10 | 17 | Pass |
| 8 | Elongation at Break after Hot Air Aging (100℃,72h) | % | ≥150 | 245 | Pass |
| 9 | Mass Change Rate (Immersed in 46# Engine Oil, 23℃×24h) | % | ≤20 | 6 | Pass |
| 10 | Static Stiffness | kN/mm | 55~80 | 67 | Pass |
| 11 | Dynamic-static Stiffness Ratio | — | ≤2 | 1 | Pass |

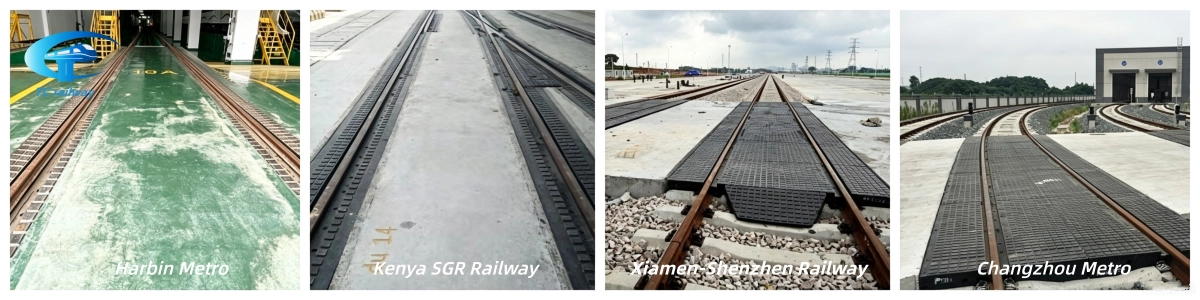

Successful Cases of Our Rubber Rail Pads for Railway Projects
We are a professional manufacturer of rubber rail pads and other railway products. Our products are widely used by multiple railway bureaus including Beijing, Shenyang, Harbin, Taiyuan, Zhengzhou, Xi’an, Lanzhou, Wuhan and Nanning Railway Bureau, as well as CREC, CRCC, CSCEC, CCCC, POWERCHINA, urban metro operators, port authorities, steel, mining and petrochemical enterprises, municipal projects and military supply depots. And we have earned widespread recognition with stable field performance. Our solutions are also supplied to railway projects in Myanmar. Feel free to contact us.
We Are One of the Trusted Railway Rubber Pad manufacturers

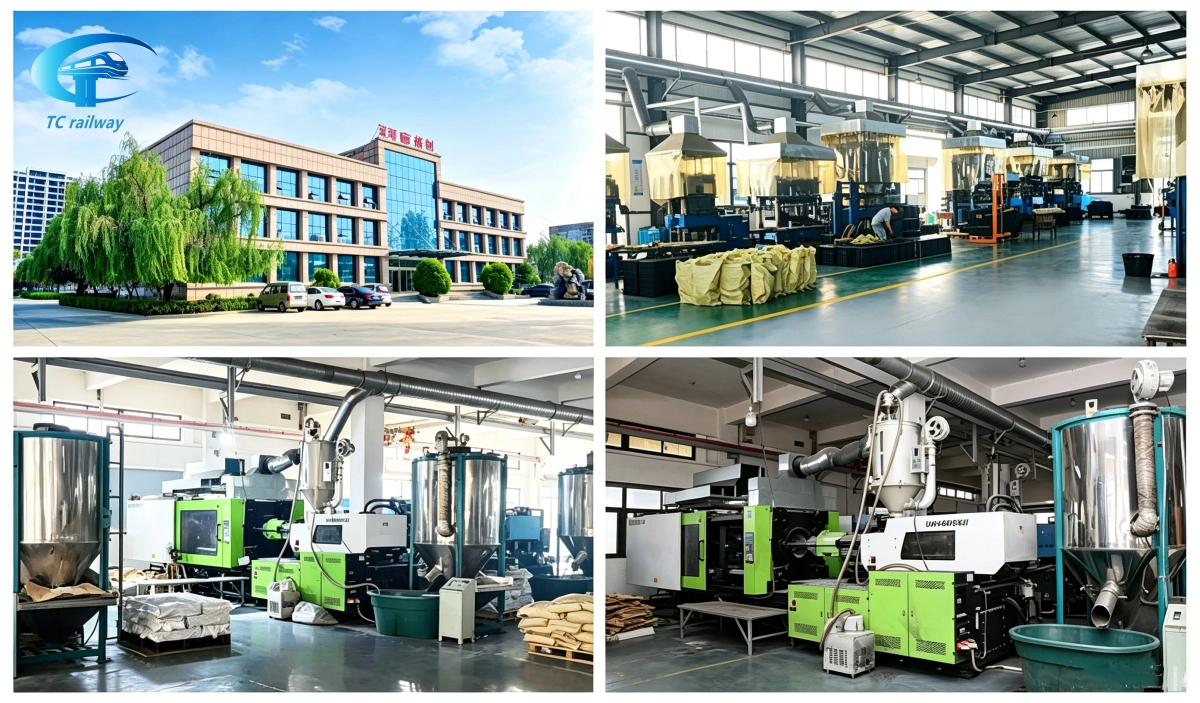

We specialize in manufacturing rail pad in railway. We can supply rubber rail pads in a full range of specifications and models, all available from ready stock. We place great importance on product quality, and we carry out strict inspections at every stage, from raw material procurement and precision machining to on-site railway track installation. Compressive resistance and elastic resilience tests are performed for each batch of elastic rubber rail pads. Full formal test certificates will be provided, and large-volume mass purchasing is acceptable. We have maintained long-term cooperative ties with metro and high-speed railway projects worldwide. We warmly welcome overseas customers to contact us for consultation and procurement.
Inspection and Testing Center

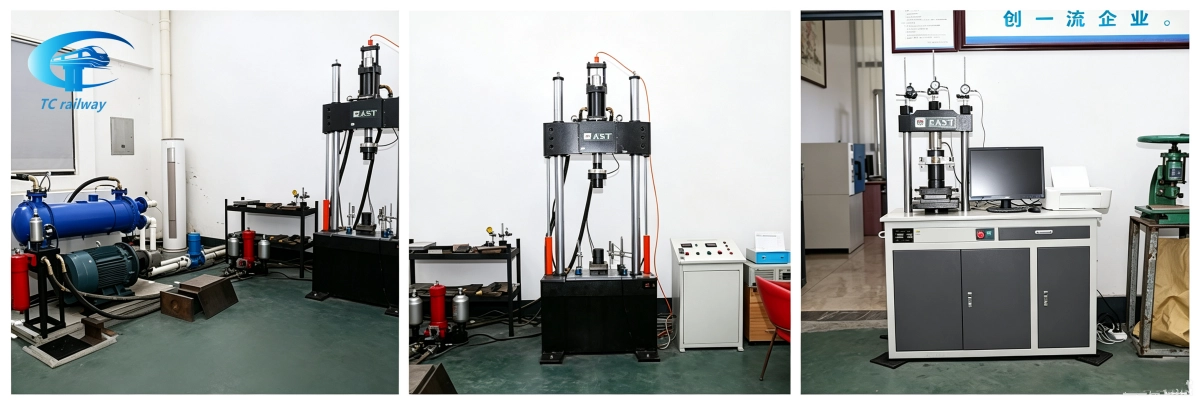

We always attach great importance to product quality control, and strictly follow the ISO9001 quality management system. We adhere to the philosophy of "Quality First, Premier Service". From order review and material sourcing to finished product inspection, we carry out strict inspections and maintain full records at every stage to ensure qualified factory output quality. We are equipped with full sets of testing equipment, professional inspectors and a mature standardized quality control system. Every production batch undergoes strict in-process inspection and finished product outgoing inspection throughout manufacturing. In addition, we send samples annually to CNAS-accredited third-party testing institutions for comprehensive testing according to our annual production output.
Certification

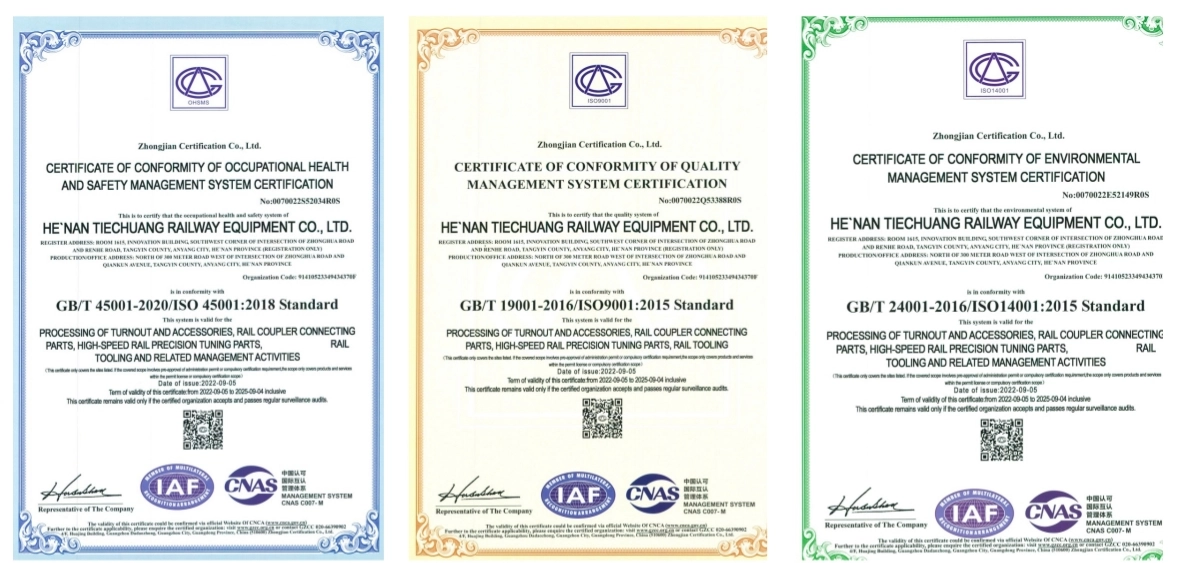

We are an experienced and reliable manufacturer of railway products, we emphasize quality control, and we have our own professional inspection center and a comprehensive quality management system. Also, our products have passed the ISO9001 quality management system, ISO14001 environmental management system and ISO45001 occupational health and safety management system triple certification, and we have also passed the product certification of China CRCC.
