Rail Spike, Dog Spikes and Screw Spikes
Rail Spike

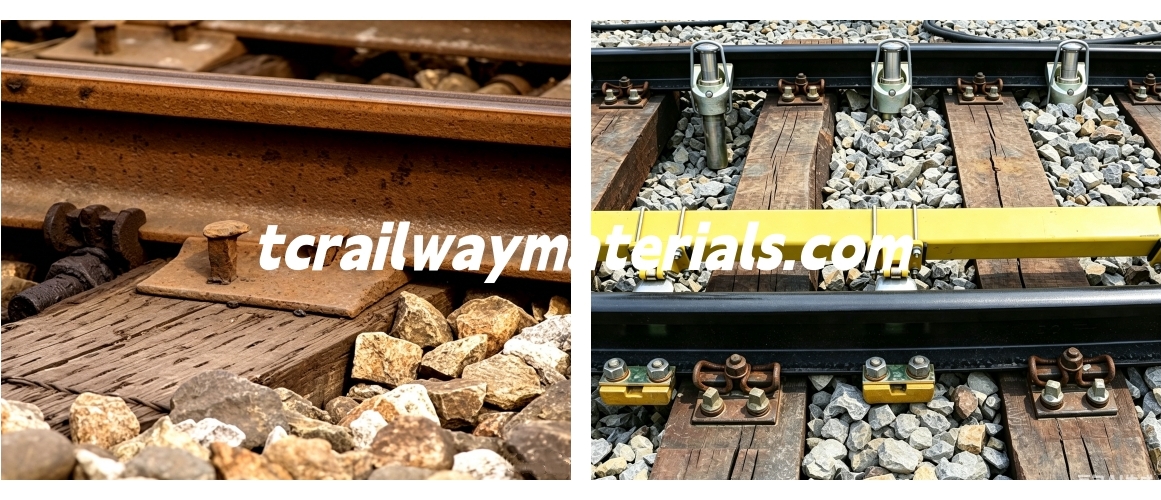

Rail spike also known as railway spike, railway sleeper spike, is one of the most vital railway track fasteners. Dog spikes secure rails on wooden sleepers by pressing under-rail tie plates, while screw spikes embedded in concrete sleepers fasten rails with nuts and elastic clips. Both types of rail spikes can restrict longitudinal rail creep and lateral rail displacement, maintain standard track gauge over the long term, stabilize track geometry and ensure safe train operation.
We offer high-tensile railway spikes, that all manufactured from premium carbon steel with stable mechanical performance. Equipped with fully automated rail spike production lines, we have sufficient production capacity and can offer products at highly competitive prices. To be mentioned, our railway spikes have been supplied to customers in the United States, Russia, Kazakhstan, as well as many African nations participating in the Belt and Road Initiative. Products can be customized to meet your specific demands or per your provided drawings. If you have any needs, do not hesitate to contact us.
Types of Railroad Spikes

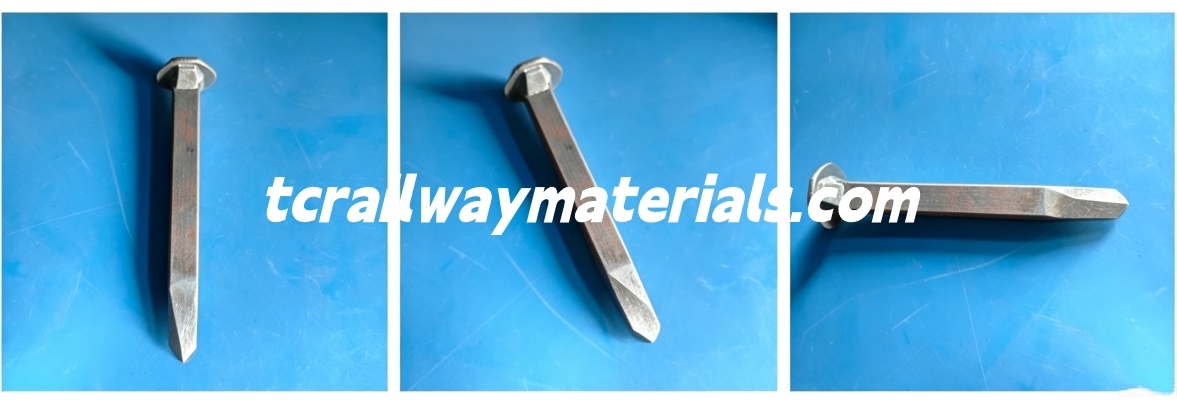

1. Railroad Dog Spike
We specialize in manufacturing various types of dog spikes in railway. We offer GOST 5812-2014 standard size 16×16×165 (equivalent to 5/8"×6"), as well as the full range of AREMA & ASTM A65-25 standard sizes: 5/8"×6", 5/8"×5-1/2", 1/2"×4-1/2", 3/8"×3", and 3/8"×3-1/2". All our specifications are suitable for heavy-duty main line railways, ordinary branch lines and light mine tracks across multiple construction projects. Our products support customization matching your specific requests or submitted technical drawings. Please do not hesitate to contact us if you have any requirements.
Railroad Dog Spike Technical Requirements
1. All rail spikes shall be fabricated from Q235 hot-rolled square steel. 2. The shank surface shall be smooth, with flash not exceeding 1 mm. The offset of the shank relative to the head centerline shall not exceed 1 mm in all directions. 3. No cracks are permitted at the junction between the spike head jaw and shank. 4. The cutting edge of the spike tip shall be straight. The point shall be free of detrimental burrs and folds detrimental to service use. 5. Spike surfaces shall be free of blisters, overburn defects and service-impairing cracks.

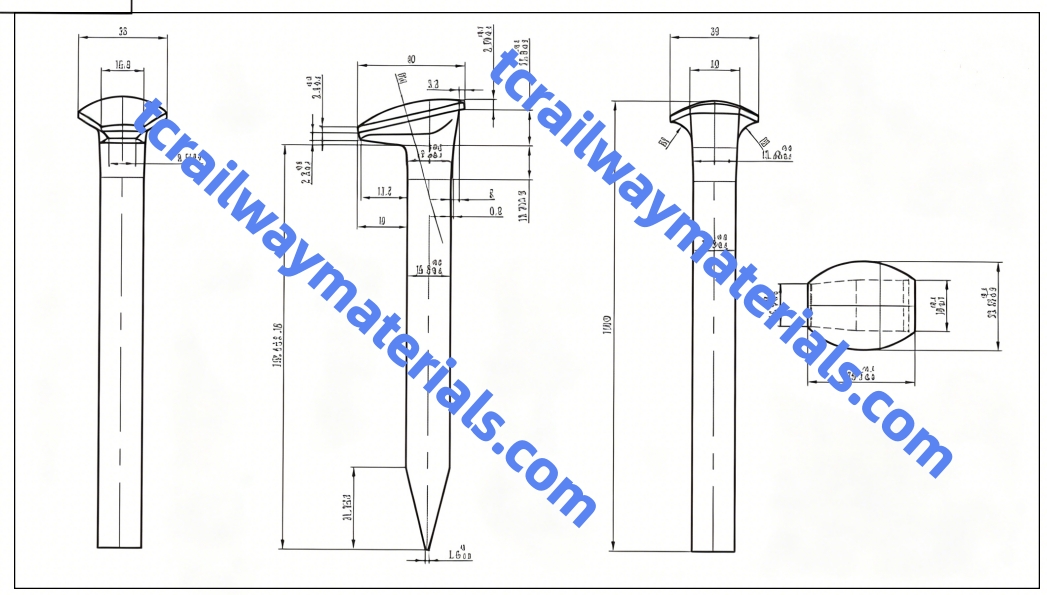

Railroad Dog Spikes Drawing
Railroad Dog Spikes Technical Parameters
Sizes: 5/8"×6", 9/16"×5-1/2", 3/8"×3-1/2", 1/2"×3-1/2"
Materials: A3, Q235, 45#, 55#, etc.
Surface Treatment: Customizable as per client’s requirements
Production Standard: Manufactured strictly in accordance with customer’s technical drawings and samples
Customization Service: Supports production of other non-standard custom sizes
2. Rail Screw Spike

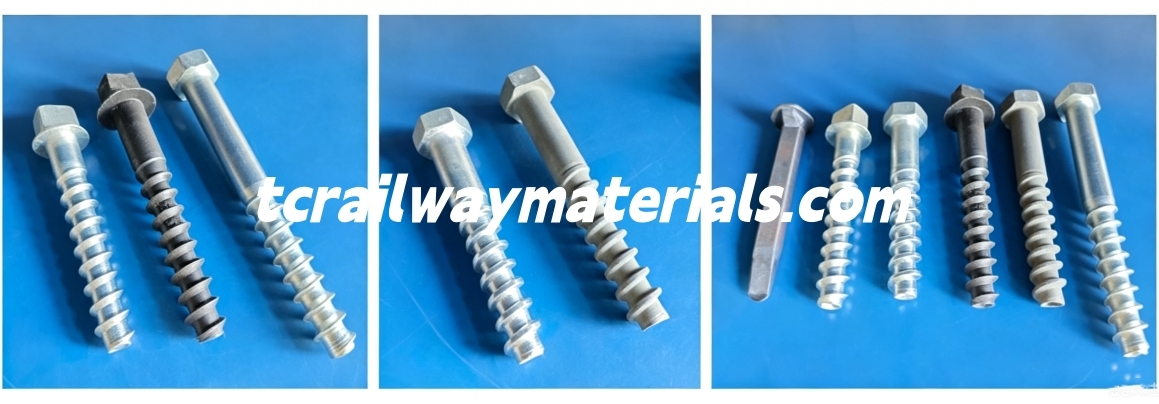

Rail screw spike, also known as sleeper screw, track screw spike, coach screw spike, it is a heavy-duty threaded metal fastener designed to secure rails to wooden or concrete ties (sleepers) for railway track construction and maintenance. We specialize in manufacturing various screw spikes in railway, including square head screw spikes, hexagon head screw spikes and double-head screw spikes. Customized products based on your drawings are available. Feel free to contact us for inquiries.
a. Square Head Screw Spikes
Square Head Screw Spike is a threaded sleeper fastener featuring a square head for easy wrench tightening, widely used to secure rails on railway sleepers. We supply various high-strength square head screw spikes like SS Series Sleeper Screws SS1, SS2, SS5, SS6, SS7, SS8, SS25, SS35, among which SS25 (M24×161mm) is our hot-selling model with full technical drawings support. Customized sizes and surface treatments based on your technical drawings are available, feel free to contact us for quotations.
Technical Parameters
| Model | Specification | Total Length | Unit Weight(kg) |
|---|---|---|---|
| Ss 1/130 | M22×130 | 130mm | 0.451 |
| Ss 1/150 | M22×150 | 150mm | 0.478 |
| Ss 2/180 | M22×180 | 180mm | 0.595 |
| Ss 5/150 | M24×150 | 150mm | 0.545 |
| Ss 6/150 | M26×150 | 150mm | 0.702 |
| Ss 7/180 | M24×180 | 180mm | 0.636 |
| Ss 8/140 | M24×140 | 140mm | 0.528 |
| Ss 8/150 | M24×150 | 150mm | 0.548 |

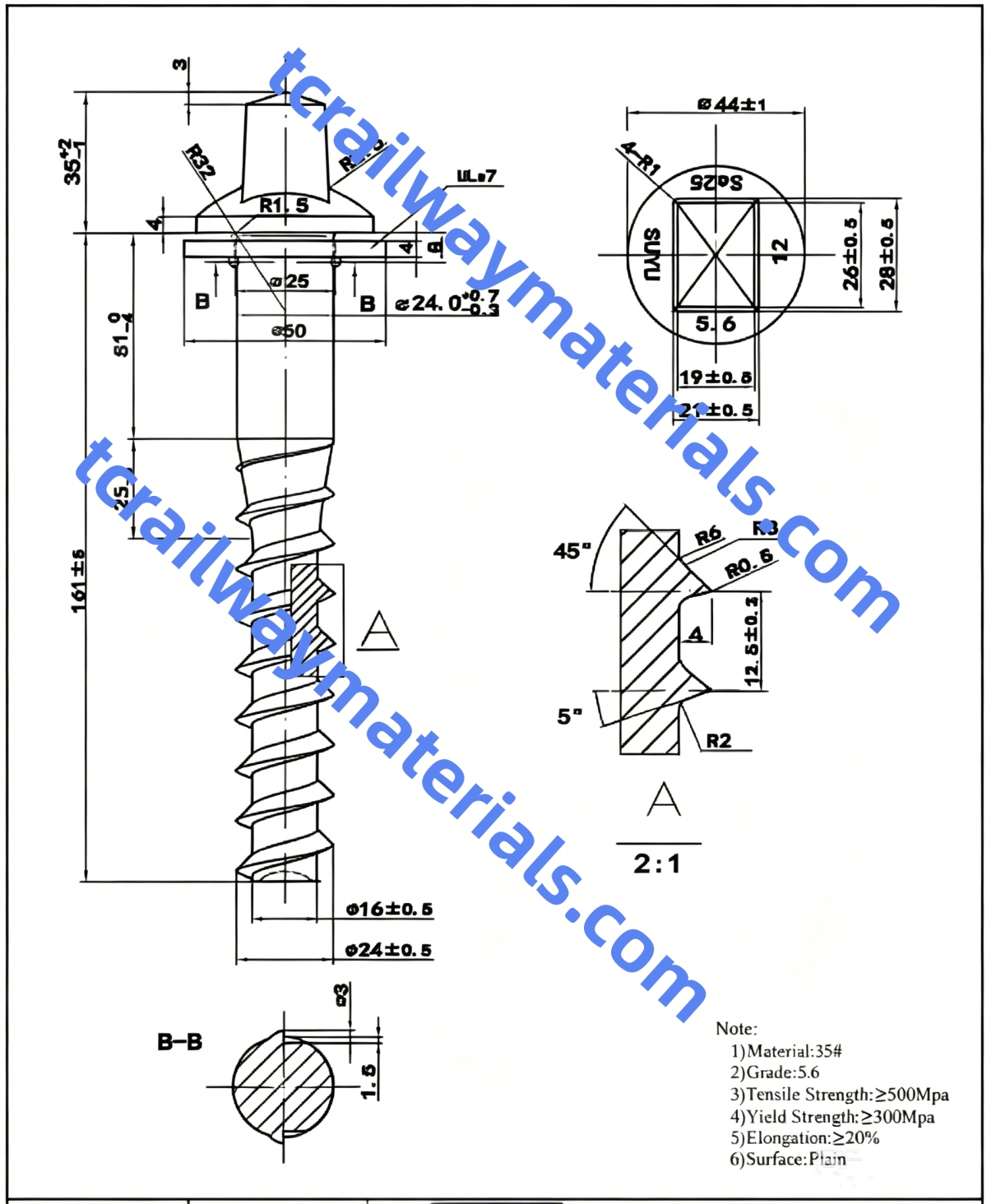

SS25 Sleeper Screw M24x161mm Technical Drawing
SS25 Sleeper Screw M24x161mm Material Mechanical Properties
Material: 35# carbon steel
Performance Grade: 5.6
Minimum Tensile Strength: 500 MPa
Minimum Yield Strength: 300 MPa
Elongation after fracture: ≥20%
Surface finish: Plain (uncoated)
b. Hexagon Head Screw Spikes
We specialize in manufacturing high-strength hexagon head screw spikes for railway, subway and high-speed rail lines. Custom specifications based on your technical drawings are supported, and strict mechanical performance inspections including tensile strength, yield strength and elongation are carried out before delivery. Feel free to send us your inquiry for favorable prices.
Specification
| Type | Size | Weight(kg) | Material | Grade | Surface |
|---|---|---|---|---|---|
| Hexagon Screw Spike | M24×160 | 0.5666 | 45# | 8.8 | Natural Oiling |
c. Double-head Screw Spikes
Double-head screw spikes with double-side thread design, perfectly matching Nabla rail fasteners. Widely used in African wooden sleeper railways and turnouts, with stable clamping force, high strength carbon steel material and optional anti-rust hot-dip galvanized surface. Custom sizes & technical drawings are available.
Specification
| Type | Size | Grade | Raw Material | Surface Treatment |
|---|---|---|---|---|
Double-head Screw Spikes | M23×174 | 4.6, 5.6, 8.8, 10.9 | Q235, 35#, 45# | Plain (oiled), Bluing, Zinc, HDG, etc. |

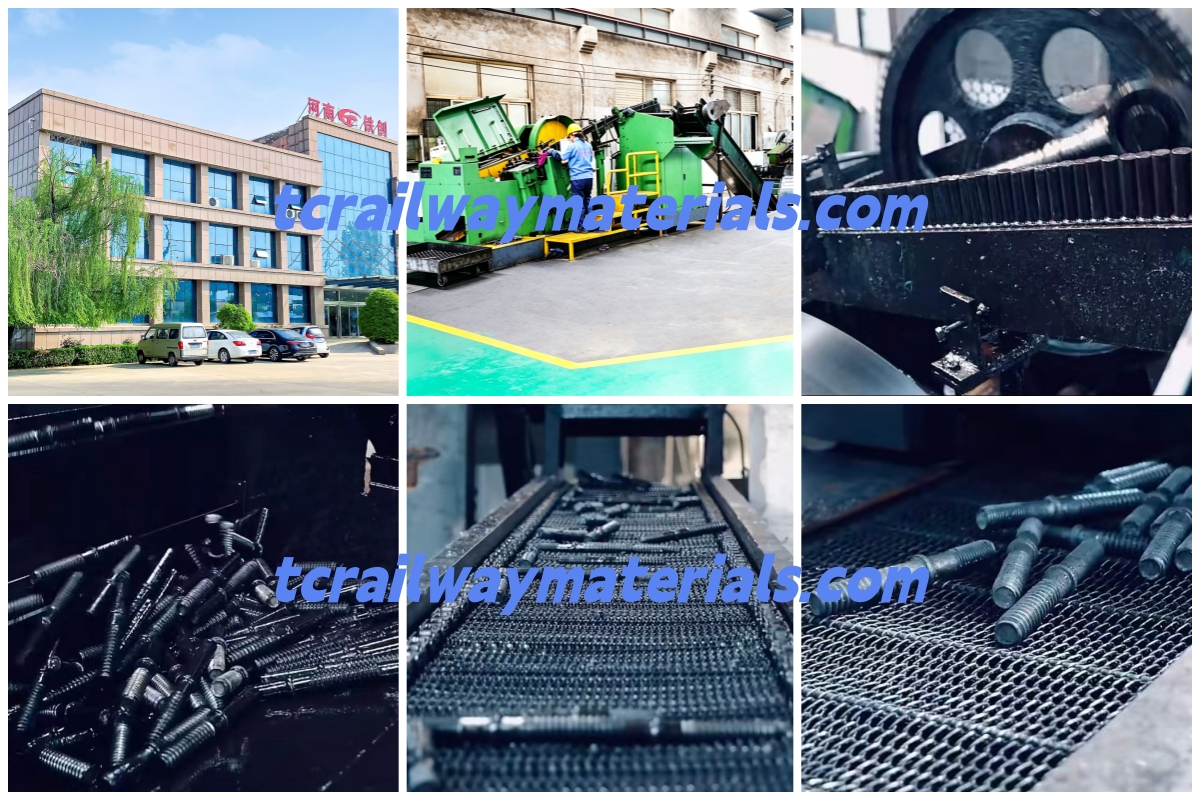

Our Rail Spike Workshop

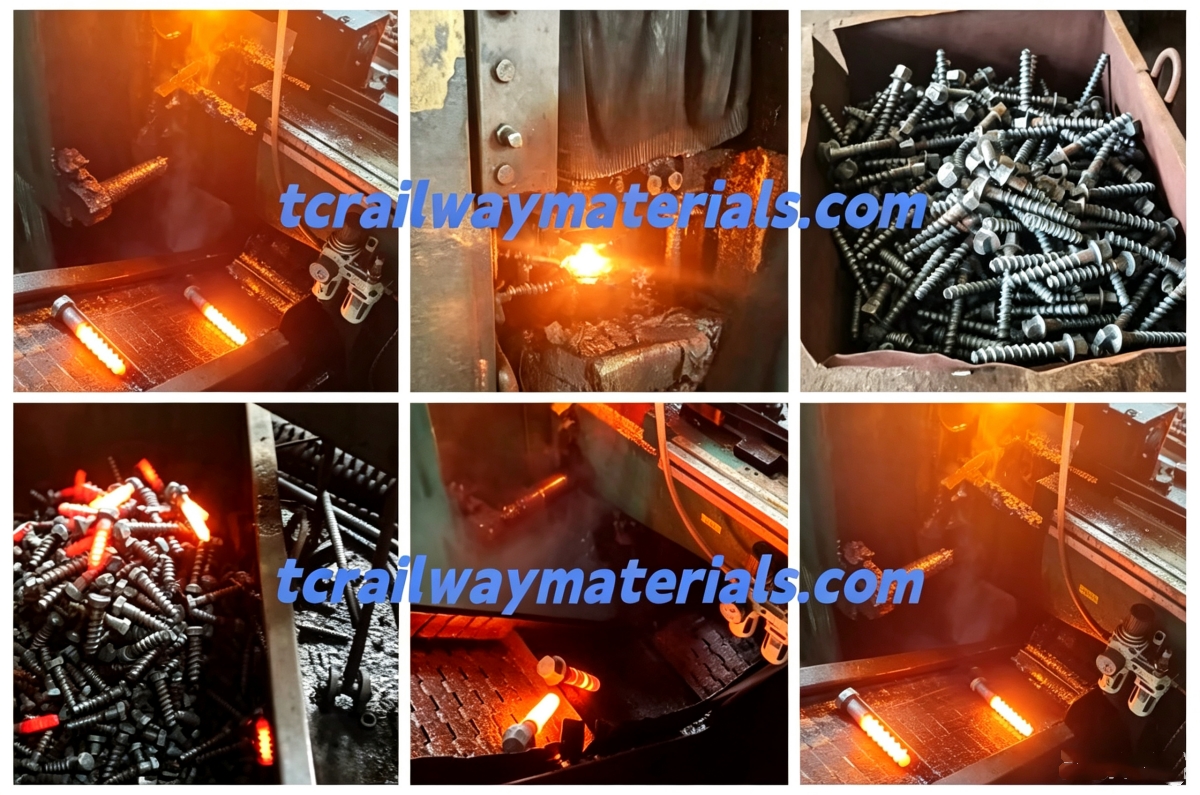

As a professional manufacturer of railway spikes, we own full production lines and independent heat treatment workshops, capable of supplying premium rail spikes. These photos below capture the heat treatment production line in our screw spike workshop. Our rail spike manufacturing process: Raw Material → Wiredrawing → Rod Cutting → Head Forming → Edge Cutting → Thread Rolling → Heating Treatment → Surface Treatment → Final Inspection → Packing → Shipment. And our automated high-temperature heating equipment realizes precise temperature control during quenching and tempering, effectively eliminating internal defects and improving the tensile strength property of finished railway screw spikes. Feel free to contact us.
We are a Specialized Rail Spikes Manufacturer
We specialize in manufacturing a full range of railway spikes, including hook head dog spikes, square-head screw spikes, hexagon-head screw spikes and double-head screw spikes, which fully comply with international railway standards such as GOST, AREMA, ASTM, DIN and DSTU. Custom specifications based on customers’ drawings or samples are available. We sincerely welcome your inquiries. In addition, we can produce various railway products, including Rail fasteners: rail clips, rail fish plate, Frozen joint bar, Glued joint bar, Rail brace, Gauge rods; Railway turnouts and parts: rail base plates, slide plates, spacer blocks, Machined Turnout Parts, Complete Turnout. We also supply rail milling trains and railway maintenance tools. We can also customize railway products as your needs. Feel free to contact us anytime.
Certification
We are an experienced and reliable manufacturer of railway products, we emphasize quality control, and we have our own professional inspection center and a comprehensive quality management system. Also, our products have passed the ISO9001 quality management system, ISO14001 environmental management system and ISO45001 occupational health and safety management system triple certification, and we have also passed the product certification of China CRCC.
