Rail Dog Spike
What Are Dog Spikes

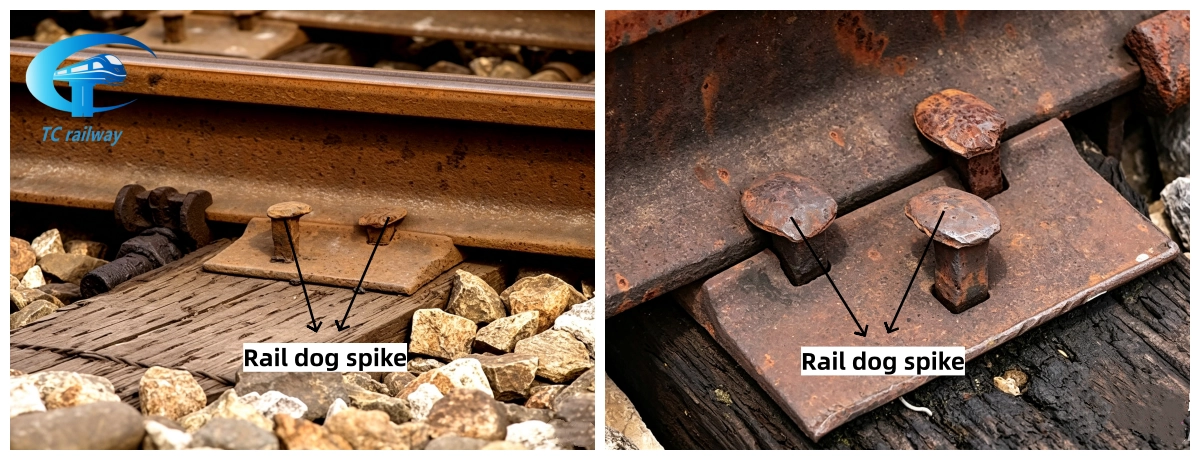

Rail dog spike, also known as plain cut spike, railroad & railway dog spike, is used to secure rails to wooden sleepers. The shank of the spike has a square cross-section, and its tip is chisel-shaped. It closely resembles a dog's head, hence it is known as a "dog spike." Some say that "it guards the rails as faithfully as a dog" — this is, perhaps, a literary exaggeration and tribute to the dog spike.
The spike is hammered directly into the timber sleeper, and the hooked head then clamps the edge of the rail base. Therefore, it features a simple structure, easy installation, and low cost, and it has become the most widely used rail fastener worldwide. We specialize in manufacturing railway dog spikes. We supply rail dog spikes in a comprehensive range of sizes and we can manufacture them in accordance with international standards such as DIN, GOST, EN, AREMA, GB, JIS, and TB. Customized solutions according to your drawings or samples are also available. Feel free to contact us.
Rail Dog Spike Technical Specification
| Parameter | Value |
|---|---|
| Raw Material | Alloy Steel 40Cr, Steel Q235, C35, C45 |
| Specification | 8×80, 8×100, 12×120, 14×140, 16×165 |
| Grade | 4.8 |
| Surface | Plain, Oxide Black |
| Standards | AREMA Ch.5, GOST-EASC (GOST 5812-2018) and TB/T 1346-2018 or others upon requirements |
International Standard Specifications for Railroad Dog Spike
| Standard | Common size | Shank (mm) | Length (mm) | Material |
|---|---|---|---|---|
| AREMA Ch.5 (US) | 5/8" × 6" | 15.9 sq. | 152 | ASTM A65 Gr.1 / Gr.2, low‑carbon |
| AREMA Ch.5 (US) | 9/16" × 5‑1/2" | 14.3 sq. | 140 | ASTM A65 Gr.1 / Gr.2, low‑carbon |
| GOST 5812‑2014 (RU/CIS) | 16 × 16 × 165 | 16 sq. | 165 | Cr3 / Cr4 (GOST 380) |
| GOST 5812‑2014 | 16 × 16 × 205 | 16 sq. | 205 | Cr3 / Cr4 |
| GOST 5812‑2014 | 16 × 16 × 230 | 16 sq. | 230 | Cr3 / Cr4 |
| GOST 5812‑2014 | 14 × 14 × 130 | 14 sq. | 130 | Cr3 / Cr4 |
| GOST 5812‑2014 | 12 × 12 × 165 | 12 sq. | 165 | Cr3 / Cr4 |
| TB/T 1346‑2018 (CN) | 16 × 33 | 16 ± 0.5 sq. | 165 / 205 / 230 / 255 / 280 | Q235A or higher |
Railway Dog Spike Dimensions and Unit Weight
| Total Length (L₁) mm | Head Width mm | Shank Section mm | Unit Weight kg/pc | Applicable Standard |
|---|---|---|---|---|
| 165 | 33 | 16 | 0.379 | TB/T 1346‑2018 |
| 205 | 33 | 16 | 0.459 | TB/T 1346‑2018 |
| 230 | 33 | 16 | 0.509 | TB/T 1346‑2018 |
| 255 | 33 | 16 | 0.559 | TB/T 1346‑2018 |
| 280 | 33 | 16 | 0.610 | TB/T 1346‑2018 |

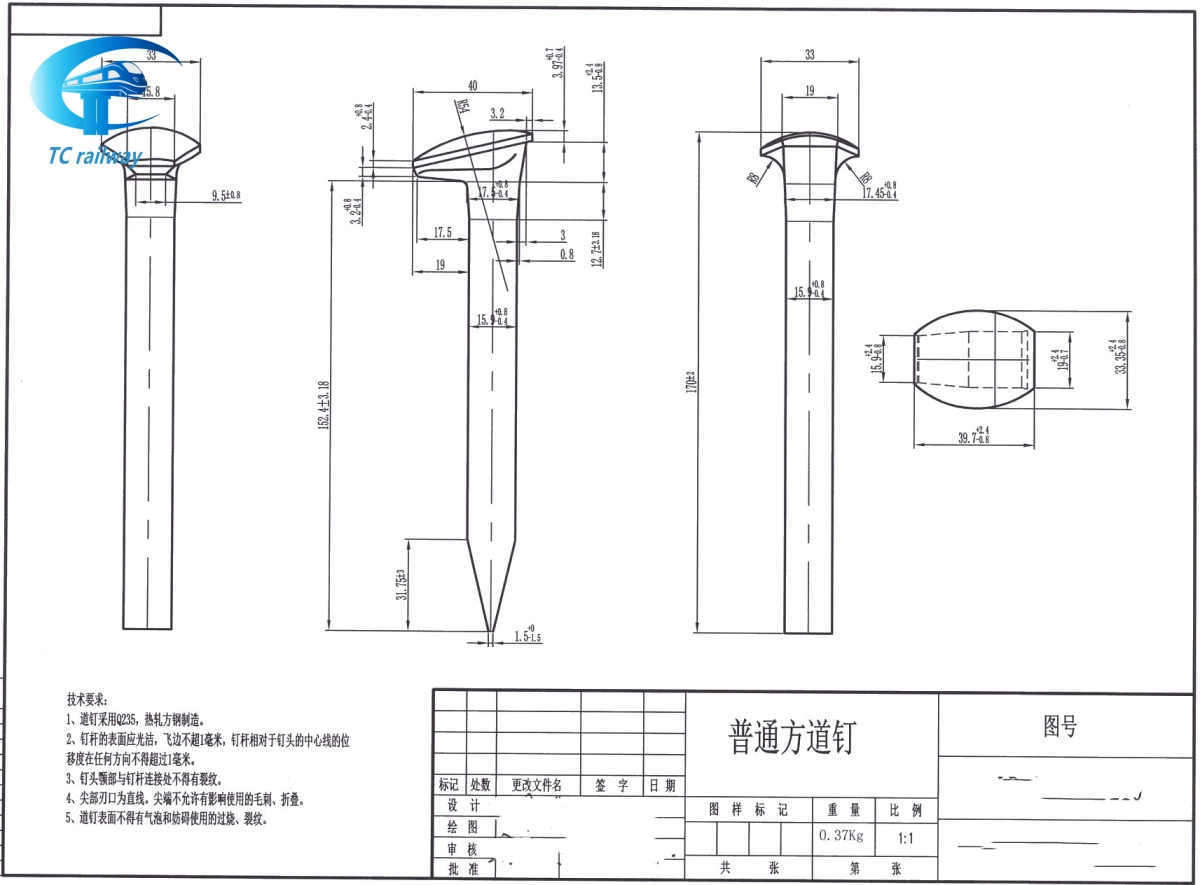

Rail Dog Spike Drawing
Rail Dog Spike Technical Requirements
1. Raw Material:
Our rail dog spikes are manufactured from Q235A carbon structural steel (or higher‑grade equivalent) and hot‑rolled square steel.
2. Surface Appearance:
The shank surface of rail dog spike shall be smooth, with forging flash not exceeding 2 mm; The cutting edge of the point shall be straight; The point shall be free from burrs and folds that could affect service; The surface shall be free from blisters and cracks.
3. Mechanical Properties:
The minimum actual pull-out force of the rail dog spike shall not be less than 100 kN.
4. Cold‑Bending Characteristics:
After anti-rust treatment, the rail dog spike shall show no cracks after the 90° cold-bend test.
5. Corrosion Resistance:
The surface of the rail dog spike shall be provided with anti‑corrosion protection.
Our Rail Dog Spike Manufacturing Process

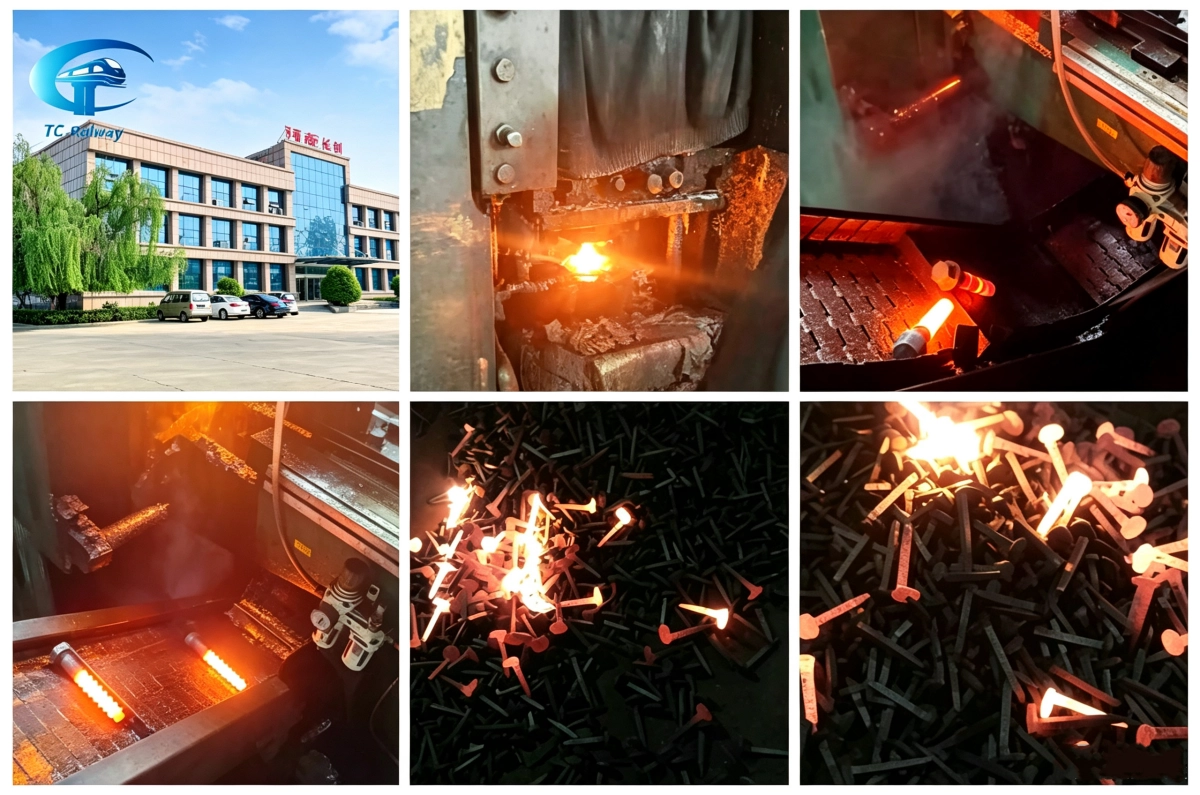

Raw Material → Wiredrawing → Rod Cutting → Head Forming → Edge Cutting → Thread Rolling → Heating Treatment → Surface Treatment → Final Inspection → Packing → Shipment

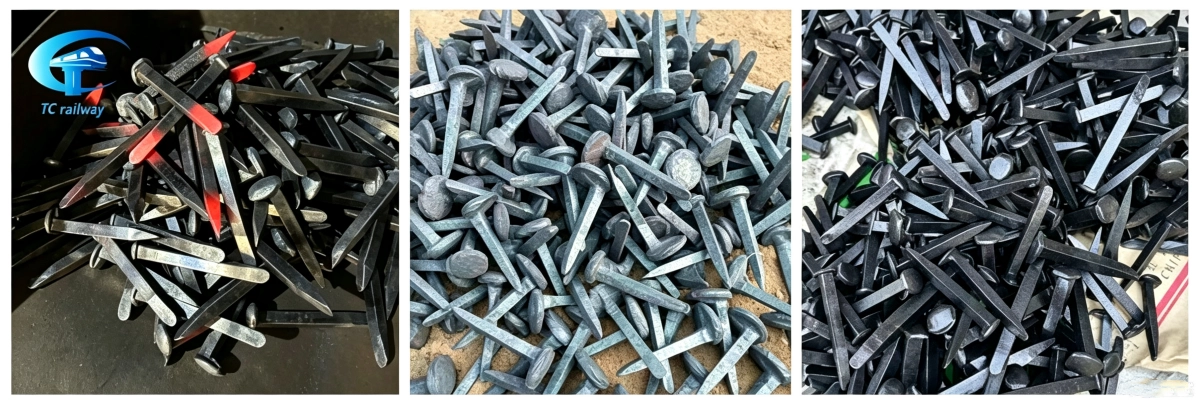

Railway Dog Spikes for Sale
Rail Dog Spike Quality Control
We strictly control the production of our railroad dog spike in accordance with applicable standards, inspecting key items such as type and dimensions, appearance, pull-out force, and cold-bend performance, ensuring consistent and reliable quality in every batch. The following reports are the third-party test results for our rail dog spikes (M12x280), which show that the chemical composition fully meets the requirements of standard TB/T 1346-2018. This shows our railway dog spike has stable material quality and good performance in actual railway applications. You can trust the quality for your purchases.
1. Rail Dog Spike Sample Basic Information
| Item | Details |
|---|---|
| Product Name | Rail Dog Spike |
| Specification | M12×280 |
| Material Grade | Q235A |
| Applicable Standard | TB/T 1346‑2018 Wood‑Tie Rail Spikes |
| Sample Feature | No obvious surface defects |
2. Rail Dog Spike Chemical Composition Test Results
| No. | Test Item | Unit | Technical Requirement | Test Result | Individual Verdict |
|---|---|---|---|---|---|
| 1 | Carbon (C) | % | ≤0.22 | 0.12 | Pass |
| 2 | Silicon (Si) | % | ≤0.35 | 0.15 | Pass |
| 3 | Manganese (Mn) | % | ≤1.40 | 1.10 | Pass |
| 4 | Phosphorus (P) | % | ≤0.045 | 0.008 | Pass |
| 5 | Sulfur (S) | % | ≤0.050 | 0.002 | Pass |
Dedicated and Professional Rail Dog Spike Manufacturer
We specialize in manufacturing various railway spikes, including rail dog spike and rail screw spike. As a professional manufacturer of rail dog spikes, we are equipped with complete production facilities, including forging presses, heat‑treatment furnaces, and testing equipment to guarantee consistent product quality. And we can control the entire process from forming and heat treatment to final inspection.
Every batch of our rail dog spikes are sampled and inspected before delivery to ensure compliance with standards and customers' requirements. As a professional manufacturer of rail dog spikes, we can deliver stable quality at competitive prices. And we can supply a comprehensive range of sizes of rail dog spikes, and we can offer railroad dog spike and railway dog spike complying with AREMA, GOST, TB/T and other international standards. Customized solutions to your drawings or samples can be provided upon request. Please do not hesitate to contact us.
Certification

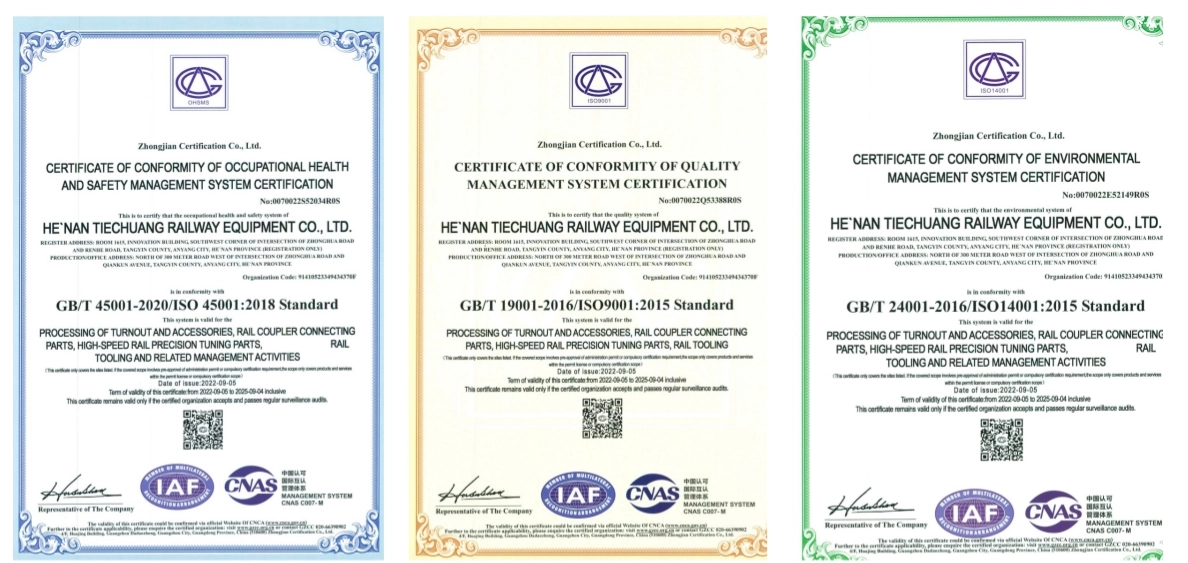

We are an experienced and reliable manufacturer of railway products, we emphasize quality control, and we have our own professional inspection center and a comprehensive quality management system. Also, our products have passed the ISO9001 quality management system, ISO14001 environmental management system and ISO45001 occupational health and safety management system triple certification, and we have also passed the product certification of China CRCC.
