Professional Manufacturer of Elastic Rail Clip & Rail Clips
Rail Clips

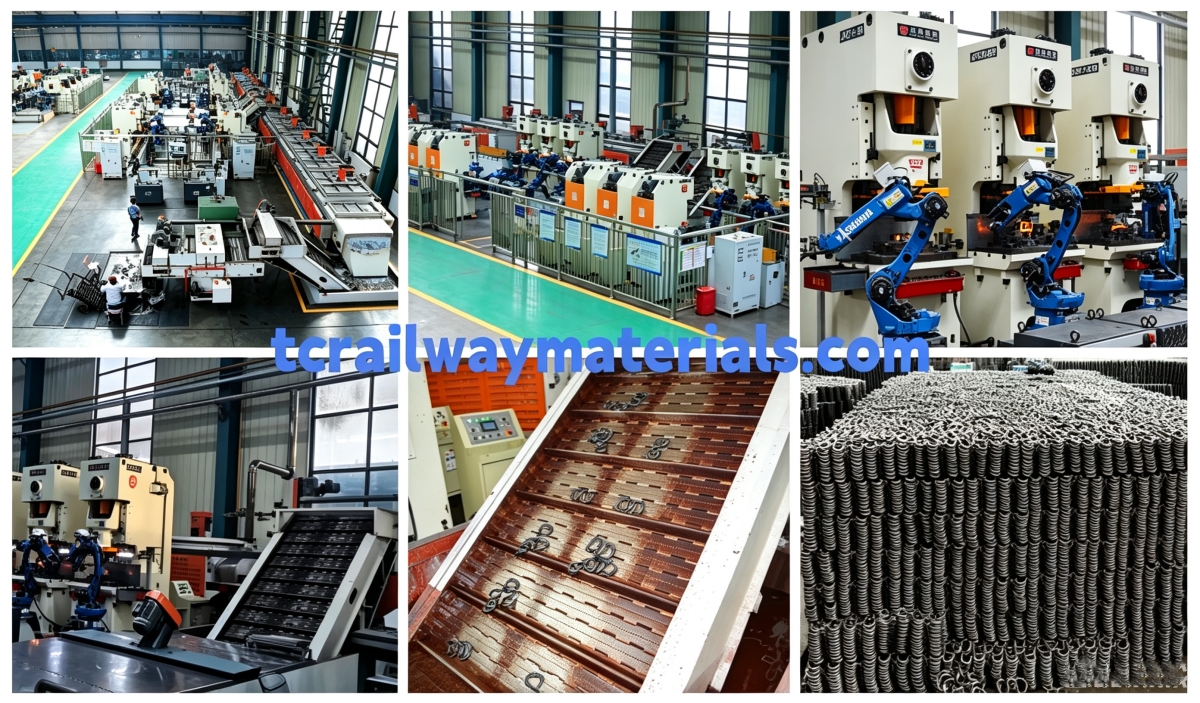

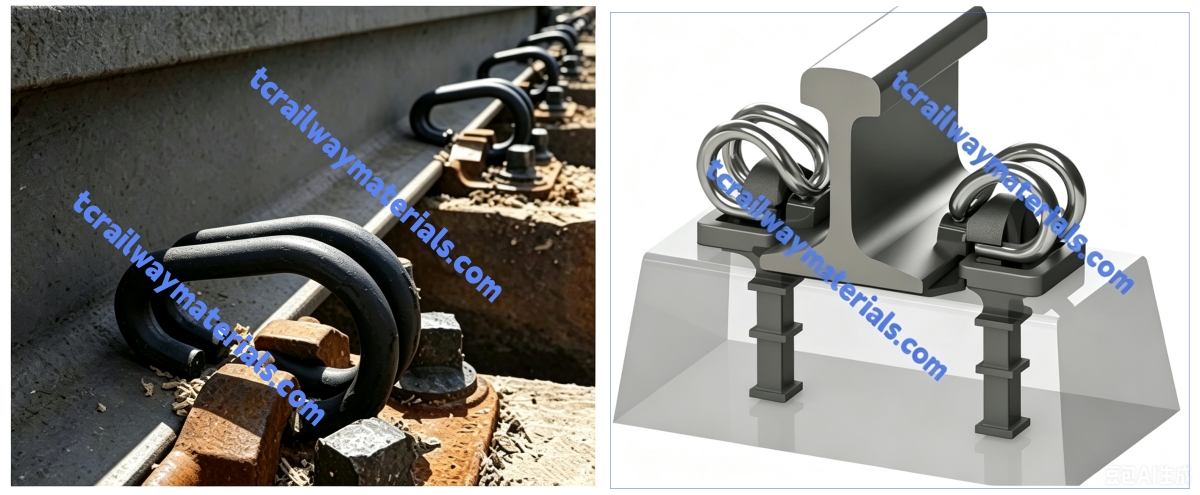

Rail clip also known as railway clip, is the core part of rail fastening systems. It uses spring elasticity to tightly fasten rails on sleepers. Matching with gauge blocks, rubber pads and base plates, it forms a full railway fastening system, and it plays an essential role in ensuring safe and stable railway operation. We specialize in manufacturing various elastic rail clips, mainly including W-type, DE-type and E-type. And we have multiple automated production lines for elastic rail clips that cover full processing procedures: raw material cutting, heating, automatic feeding, forming and heat treatment. In addition, we have developed custom forming moulds for various specifications of elastic rail clips. Our daily production capacity reaches up to 30,000 pieces. If you have any needs, feel free to contact us.
Elastic Rail Clips Technical Parameters
| No. | Clip Name | Model & Specification | Wire Diameter | Clamping Force | Hardness | Application Scenario |
|---|---|---|---|---|---|---|
| 1 | Type-A Rail Clip | TB, Type-A | Φ13 | ≥8KN | 41-46HRC | 50kg/m Rail Line |
| 2 | Type-B Rail Clip | TB, Type-B | Φ13 | ≥9KN | 41-46HRC | 60kg/m Rail, Passenger & Heavy-Haul Lines |
| 3 | SKL14 Rail Clip | SKL14 | Φ13 | ≥5.5KN | 42-47HRC | Passenger & Heavy-Haul Railways |
| 4 | W1 Rail Clip | W1 | Φ14 | ≥9KN | 42-47HRC | High-Speed Railway |
| 5 | X2 Rail Clip | X2 | Φ13 | ≥3KN | 42-47HRC | High-Speed Railway |
| 6 | Type-E Rail Clip | TB, Type-III | Φ20 | ≥11KN | 44-48HRC | Heavy-Haul Freight Lines |
| 7 | Type-E Anti-Theft Rail Clip | DI, Anti-Theft Clip | Φ18 | ≥8.2KN | 42-47HRC | Passenger & Heavy-Haul Lines |
| 8 | DE Rail Clip | DE | — | — | 44-48HRC | Heavy-Haul Freight Lines |

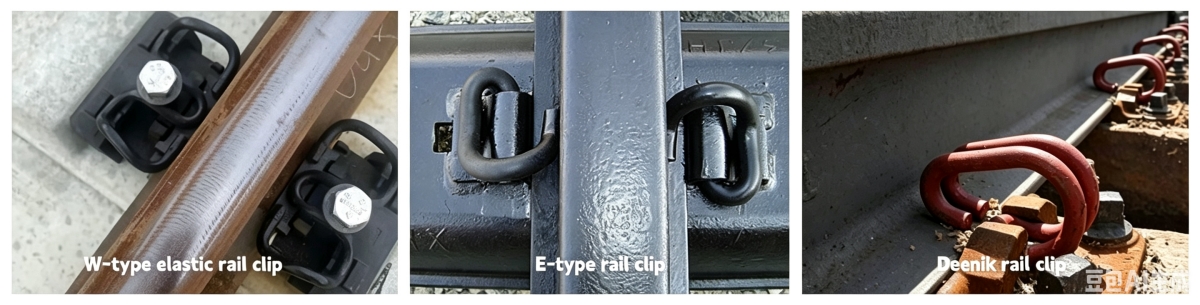

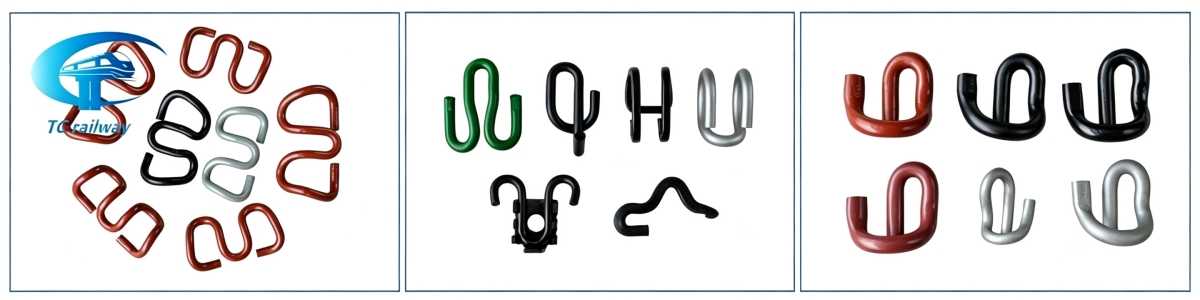

Rail Clip Types
We specialize in manufacturing a full range of elastic rail clips, mainly including W-type, E-type and DE-type rail clips below. Customized production is available, and we are capable of producing tailored products complying with clients’ drawings, parameters and special project requirements. Feel free to contact us.
1. W-type Elastic Rail Clip
The W-type elastic rail clip, also known as the W clip, because it is shaped like the letter W. We specialize in manufacturing W-type rail elastic clips, all fabricated from high-grade alloy spring steel. And they are processed by hot bending forming with rigorous heat treatment. It delivers long-lasting clamping force and enhanced fatigue resistance. And it effectively prevents lateral and longitudinal slippage of rails under high-speed heavy-load conditions. Main application scenarios for our W-type rail elastic fasteners: high-speed railways, heavy-haul railways and passenger dedicated lines requiring superior track smoothness and reliability. In addition, our W-type elastic rail clips are compatible with a wide range of rail fastening systems, including Type Ⅳ, Type V, WJ-7, WJ-8 and W14. Below we list W1-type and SKL-14 elastic rail clips, let’s take a detailed look together.

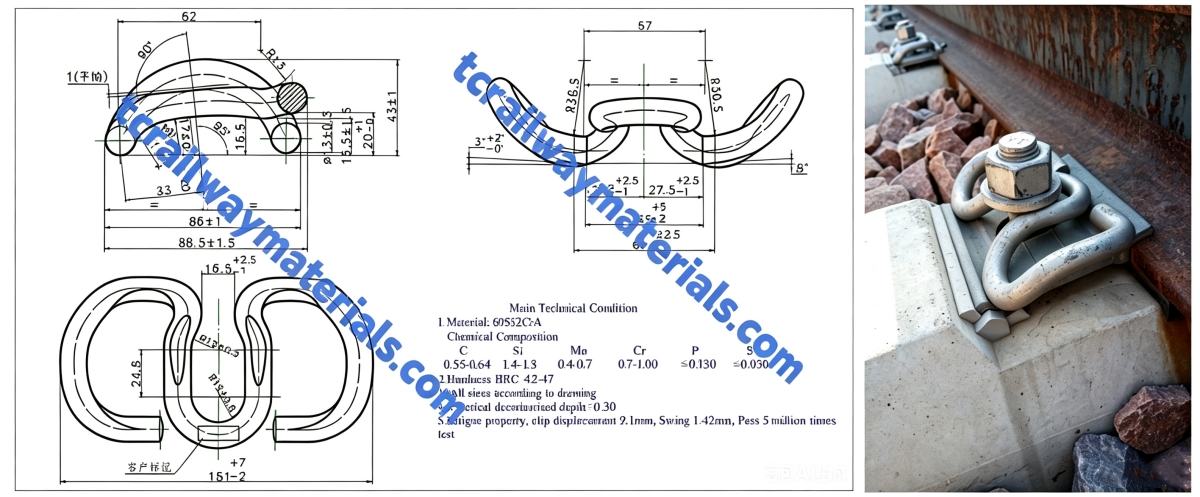

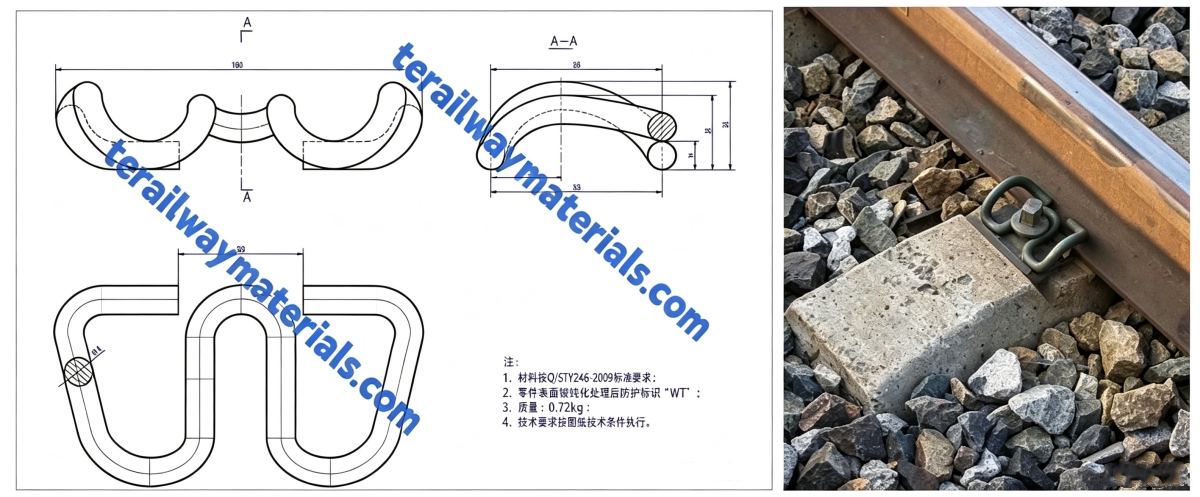

a. W1 Elastic Rail Clip
Specification:
Material: Hot-rolled spring steel 60Si2MnA
Each elastic clip shall be marked with clear permanent factory logo and product code “W1”.
Weight: 0.72 kg per piece
All technical requirements shall comply with the manufacturing and acceptance specifications.
b. SKL14 Elastic Rail Clip
Specification:
Hardness: 42–47 HRC
Max total decarburization depth: 0.30 mm
Clamping force requirement: Inflection-point clamping force ＞9 kN, minimum elastic clamping force 5 kN
Fatigue resistance: Intact without cracking after 5,000,000 cyclic tests
Surface protection: Electrostatic spraying
Salt spray resistance: Reach at least Grade 5 after 120-hour salt spray test

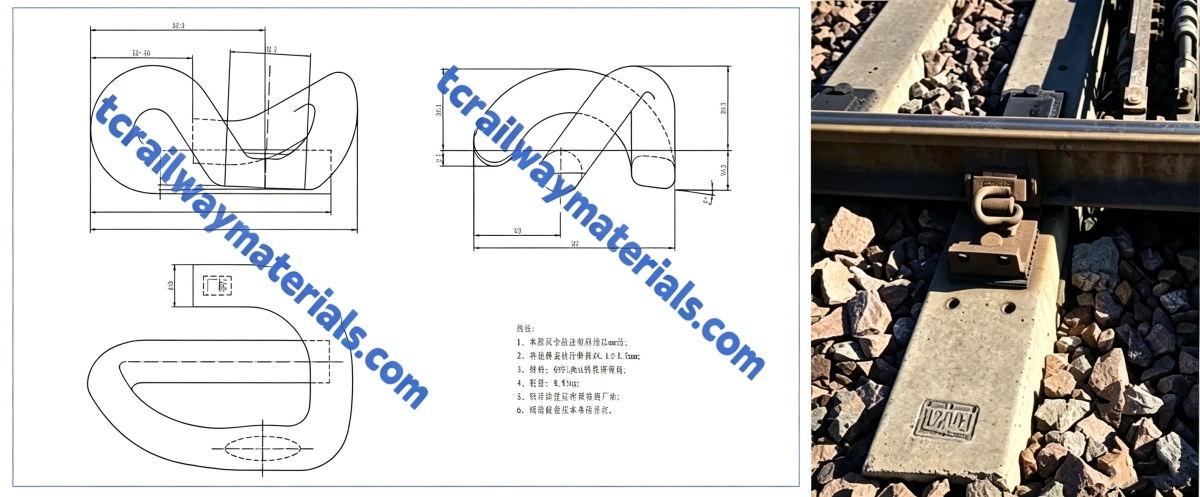

2. E-type Rail Clip
The e rail clip gets its name as its shape resembles the letter "E". We specialize in manufacturing E-type rail clips, and they have the feature of simple installation and easy maintenance. The elastic rail clip fastening systems feature boltless, shoulderless construction, and it is a dominant development trend for modern concrete sleeper fastening assemblies. Application Scenarios: our e rail clip has an extensive range of applications, covering high-speed railway lines, conventional railway lines and urban metro lines. We also offer E-type rail clips in various specifications compatible with rails of different weights, including 43kg/m and 60kg/m. Feel free to contact us.
Specification:
Mechanical Properties of E-type Rail Clip
Clamping Force per Rail Seat: 17~19 kN (Clip deflection: 11 mm ±1.5 mm)
Rail creep resistance (with standard pad): 9–11 kN
Hardness: 44–48 HRC / 385–425 HB
Fatigue Life: ≥5 million cycles
E Rail Clip: Chemical Composition of Alloy Spring Steel
| Element | C (Carbon) | Si (Silicon) | Mn (Manganese) | Cr (Chromium) | S (Sulphur) | P (Phosphorus) |
|---|---|---|---|---|---|---|
| Content Range | 0.52~0.60% | 1.50~2.00% | 0.60~0.90% | Max 0.30% | Max 0.035% | Max 0.035% |
3. Deenik Rail Clip
We specialize in manufacturing Deenik elastic rail clips, all fabricated from round cross-section spring steel bars, and they are manufactured through hot bending forming and strict heat treatment. It features an asymmetrical curved profile. One end clamps the rail foot, while the other is anchored into the slot of the pre-embedded iron chair or steel tie plate. Our Deenik railway clip has advantages of compact structure, excellent elasticity and easy installation & maintenance. This design allows the clip to effectively absorb vibration and impact when trains pass by, while maintaining stable clamping force. And it is widely used on European railway lines including those in the Netherlands and Germany.

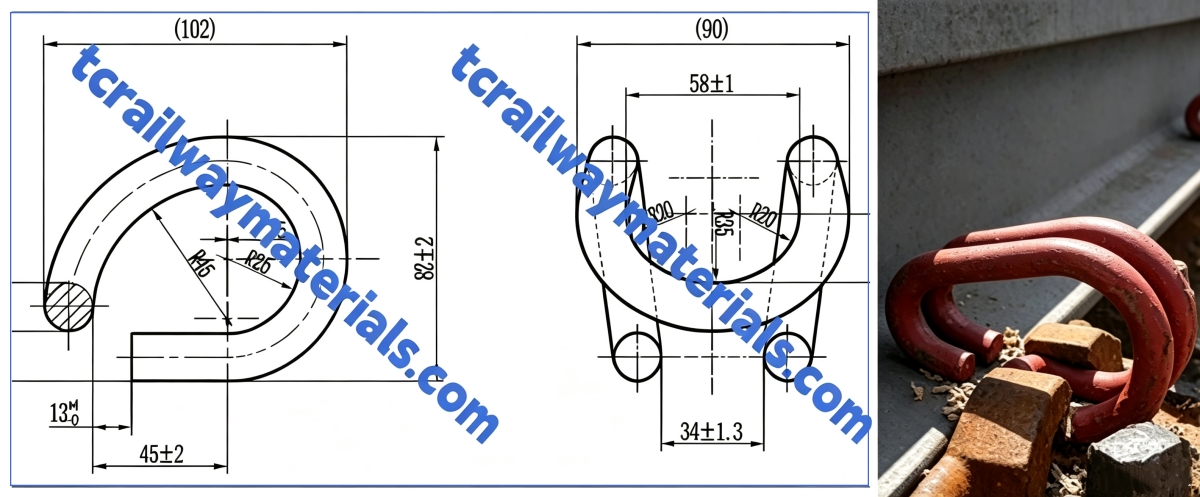

Drawing:
Specification:
Material: 60Si2MnA square steel, cross-sectional dimension 12.5mm × 12.5mm
Surface finish: Burr-free
Pre-clamping force of Type A-3 clip: 5 ~ 7 kN
Surface treatment: Anti-rust red paint coating, passes 500-hour salt spray test
Weight: 0.59 kg
Application: Deenik Rail Clip Fastening System
We specialize in manufacturing Deenik elastic rail clips, which are exclusively designed for the Deenik elastic rail clip fastening system. As a vital part of this fastening system, our DE clips maintain consistent elastic pressure to fix rails firmly. All our clips go through dual anti-corrosion treatment including Dacromet coating and electrostatic spraying, offering great rust and wear resistance for long service life under harsh outdoor track conditions.

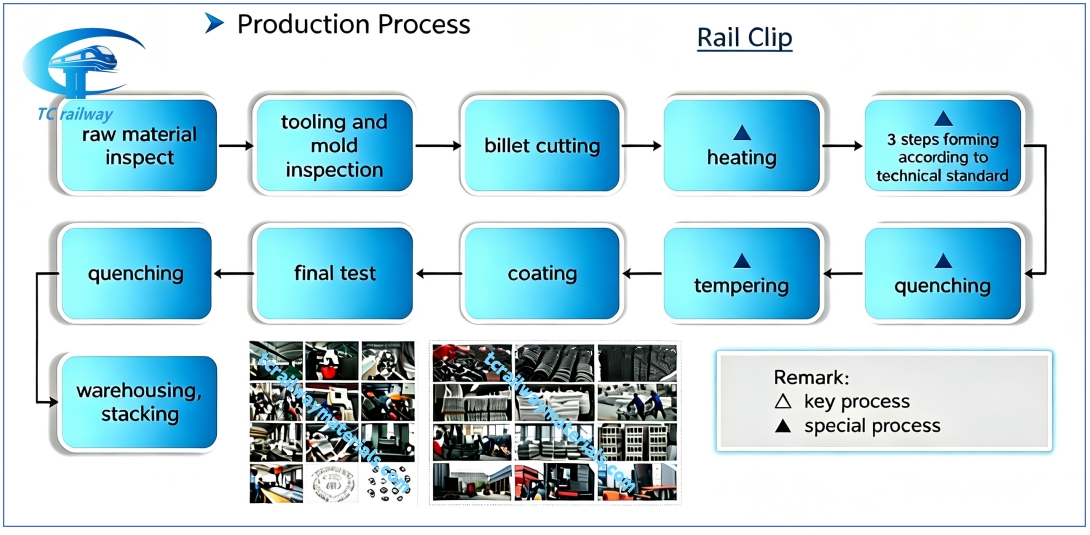

Elastic Rail Clips Manufacturing Process
Raw Material Inspection → Shearing → Heating → Forming → Quenching → Tempering → Anti-rust Surface Treatment → Finished Goods Inspection → Packaging & Warehousing
1. Raw Material Inspection: Raw materials are 60Si2Mn and 60Si2Cr alloy spring steel, whose mechanical properties shall fully comply with technical requirements. 2. Shearing: Spring steel blanks shall be cut to the exact lengths specified in process drawings. 3. Heating: The forging temperature is controlled from 900°C to 1030°C; overheating and overburning of steel are strictly prohibited.
4. Forming: Hot steel bars are sent to power presses for hot forging. 5. Quenching: Formed rail clips are transferred to quenching tanks. Inspection of dimensional tolerance and quenching hardness shall be performed before tempering. 6. Tempering: Clips are tempered at specified process temperatures to meet the standard hardness range for E-type rail clips.
7. Anti-rust Surface Treatment: All clips after anti-rust treatment shall meet the requirements of dimensional precision and mechanical performance. Clips for different regional projects are identified with unique marks and coating colors. 8. Finished Product: Inspection Final inspection is carried out in accordance with CRCC standards and customers’ customized technical specifications. 9. Packaging & Warehousing: Woven bags are used for standard packaging; custom packaging solutions are available upon customers’ requests.
We Are A Specialized Elastic Rail Clip Manufacturer
We specialize in manufacturing all types of rail spring clips, we pay close attention to quality inspections at every production step. Our factory fully tests raw material performance before processing, verifies clip dimensions after forming, and tests finished product overall performance after heat treatment and anti-corrosion treatment. Multiple rounds of inspections ensure we comply with strict quality standards, to guarantee stable performance of all rail clips.
We have supplied over 10 million rail spring clips to international clients. Our major overseas projects cover the Laos section of the China-Laos Railway, anti-theft E clips for Myanmar railways, DE clips for Ukraine, and SKL14 clips for Kazakhstan Copper Company. Please feel free to contact us if you have any requirements.

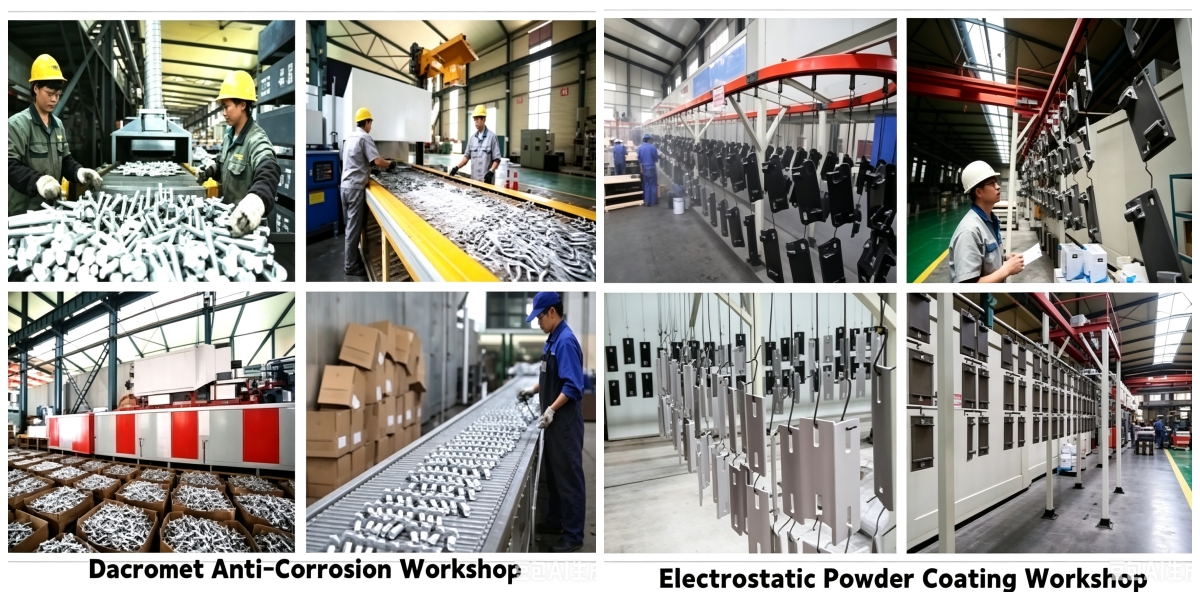

Automatic Anti-corrosion Workshops for Elastic Rail Clip
Rail spring clips constantly face moisture, dust and chemical corrosion on outdoor tracks, so reliable anti-corrosion performance is a must. We have Dacromet anti-corrosion workshops and electrostatic powder coating workshops, and we can apply professional and complete anti-corrosion finishing to elastic rail clips to improve their ability to resist rust and abrasion. Thus they can keep stable performance under tough weather such as wind and rain all year long, which greatly extends their service cycle on railway tracks. So feel free to place your order with us.
Certification
We are an experienced and reliable manufacturer of railway products, we emphasize quality control, and we have our own professional inspection center and a comprehensive quality management system. Also, our products have passed the ISO9001 quality management system, ISO14001 environmental management system and ISO45001 occupational health and safety management system triple certification, and we have also passed the product certification of China CRCC.
