KB-65 Split-type Rail Base Plate for GOST R65 Rails

KB-65 Split-type Rail Base Plate for GOST R65 Rails

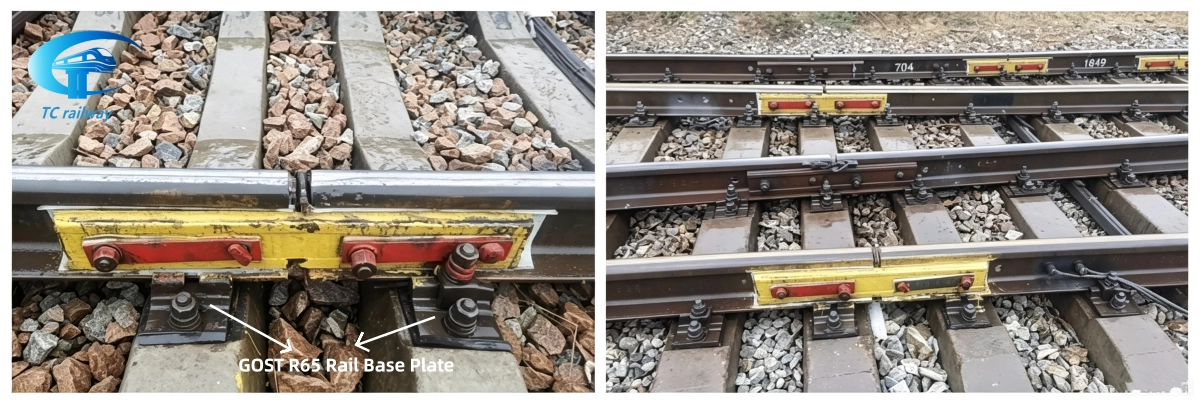

The KB-65 Split-type Rail Base Plate is engineered to match GOST R65 rail fastening systems for 1520mm gauge railway projects. It is widely adopted on railway lines in CIS countries such as such as Russia, Kazakhstan, Uzbekistan, Belarus, Azerbaijan and Kyrgyzstan. The above image features our manufactured KB-65 Split-type Rail Base Plates in service on the railway line in Tashkent, Uzbekistan. The contractor for this railway line project is also one of our overseas partners for railway fastening products. You may take a closer look at the picture. We specialize in manufacturing this KB-65 Split-type Rail Base Plate for GOST R65 rails.  Do not hesitate to contact us whenever you have requirements. We sincerely welcome overseas clients to develop stable long-term partnerships.

Our KB-65 Split-type Rail Base Plate for GOST R65 Rails

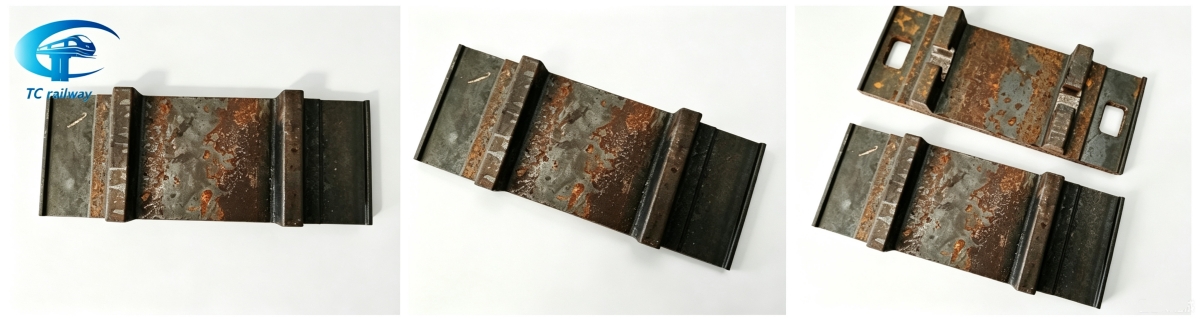

We supply high-performance KB-65 split-type rail base plates for GOST R65 rails. They are fabricated from Q235 carbon steel via hot rolling process. As a professional and experienced manufacturer of railway products, our KB-65 split-type rail base plates have various advantages: stable quality, competitive pricing and large stock available. Please view our KB-65 split-type rail base plates product images above for your reference. And if you have any requirements, feel free to contact us. We can cater to all your project requirements.

KB-65 Split-type Rail Base Plate for GOST R65 Rails Specification:

Product: R65 Rail Base Plate

Raw Material: Q235 carbon steel

Production Process: Hot rolling

Surface Treatment: Customized according to customer requirements

Applicable Rail: 65kg/m steel rail

Unit Weight: 6.7kg

Standard: GOST

Application: GOST R65 rail fastening system

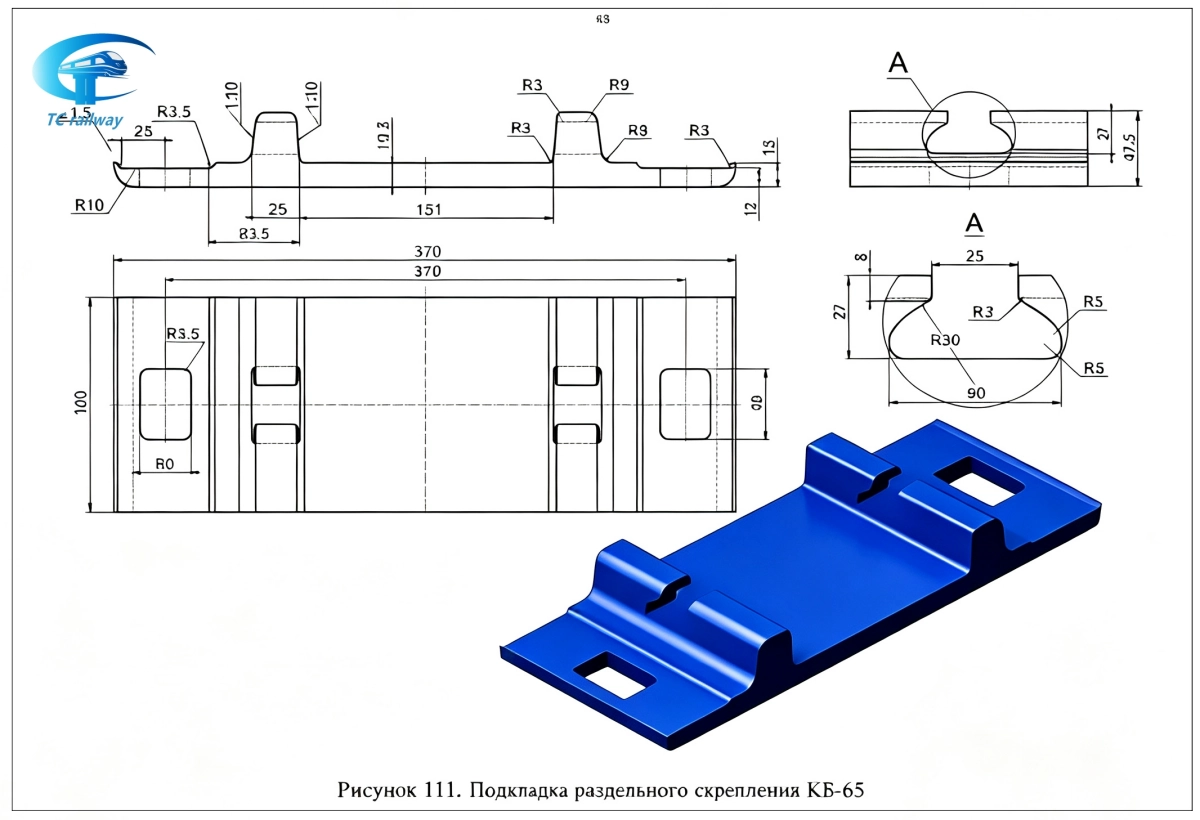

KB-65 Split-type Rail Base Plate for GOST R65 Rails Drawing

Importance of the KB-65 Split-type Rail Base Plate for GOST R65 Rails

Our manufactured KB-65 Split-type Rail Base Plate is a vital component of the GOST R65 rail fastening system. It transfers dynamic loads from the rail evenly to sleepers, maintains stable rail gauge, reduces track vibration and prevents lateral rail displacement. Reliable base plates effectively protect sleepers, extend the overall service life of track fastening assemblies and guarantee safe, stable operation of railway lines. Please see the detailed information below.

1. Load Bearing

Our KB-65 split-type rail base plate is one of the critical load-bearing components installed between steel rails and sleepers in track structures. It is laid between steel rails and concrete sleepers (or track bed) and can withstand tremendous dynamic loads during train passage.

2. Even Load Distribution

Our KB-65 split-type rail base plate can expand the contact area between the rail foot and concrete sleepers, and evenly distribute concentrated dynamic loads to sleepers or track beds. It protects sleepers from cracks and damage resulting from localized overloading and mitigates uneven settlement of track beds.

3. Rail Position Control

Our KB-65 split-type rail base plate’s shoulder structure can control the lateral position of steel rails and maintains standard track gauge.

4. Prevent Rail Displacement

In conjunction with elastic rail fasteners, our KB-65 split-type rail base can generate friction to form bidirectional restraints in lateral and longitudinal directions. It effectively restrains rail creeping and lateral instability during train operation and braking.

5. Wide Application

Therefore, our KB-65 split-type rail base plate is among the vital components positioned between steel rails and sleepers in railway track structures. It is widely used in heavy-load and high-frequency traffic scenarios, such as mines, factories and sections prone to settlement.

KB-65 Split-type Rail Base Plate for GOST R65 Rails Application

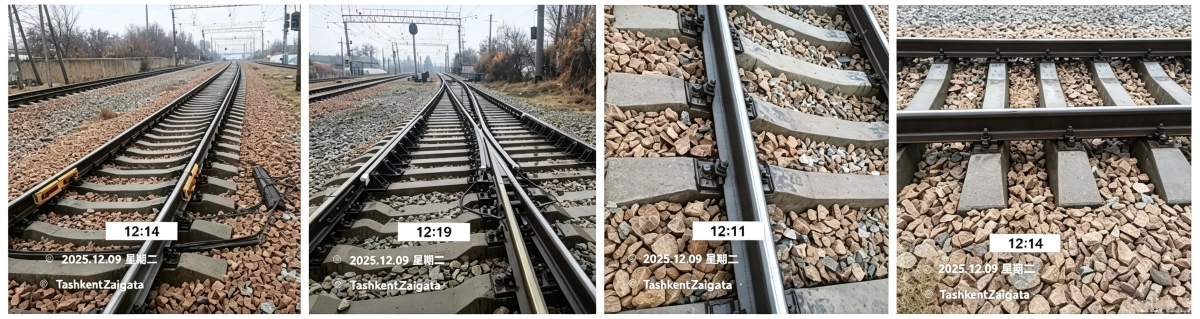

This electrified trunk line is located in Tashkent, Uzbekistan. It features the GOST 1520 mm broad gauge and is laid with GOST R65 steel rails, fitted with the KB-65 split-type rail fastening system. Our KB-65 rail base plates are widely applied on similar railway lines across the CIS region. Refer to the photos below for more details. We specialize in manufacturing this type of rail base plate. Custom production is available according to your drawings or technical requirements. Please feel free to contact us for inquiries.

Why Choose Us

We are an professional and experienced manufacturer of railway products. We have been manufacturing railway products for 10 years. Our factory occupies 80 acres, equipped with modern production equipment and mature technology, with an annual output of 20 million pieces. We sincerely welcome customers from all over the world to visit and inspect our factory.

And our railway products are exported to many countries and regions such as Kazakhstan, Morocco and Bangladesh. We are an official partner of Morocco ONCF, listed in its approved supplier database. We have established long-term cooperation with major Chinese enterprises such as China Railway, CRCC, CCCC, CSCEC, Power China and China Energy Engineering. We serve both new railway line construction and daily railway maintenance. We can supply maintenance spare parts even in small quantities. Please feel free to contact us anytime.

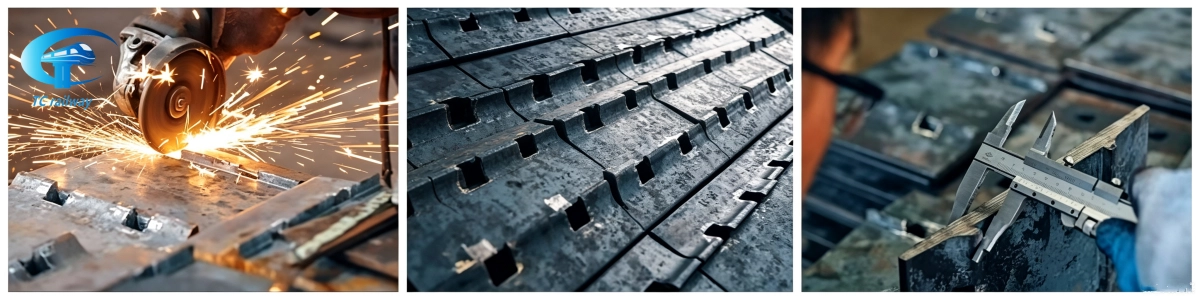

Inspection

We always attach great importance to product quality control, and strictly follow the ISO9001 quality management system. We adhere to the philosophy of "Quality First, Premier Service". From order review and material sourcing to finished product inspection, we carry out strict inspections and maintain full records at every stage to ensure qualified factory output quality.

Our Partners

We are a professional and reliable manufacturer of railway products. We have established long-term cooperation with a large number of railway bureaus, railway engineering bureaus and other large and medium-sized enterprises, etc. And they are as follows: China Railway Harbin Bureau, Kunming Railway Bureau, Shenyang Railway Bureau, Jinan Railway Bureau, Taiyuan Railway Bureau, Lanzhou Railway, China Railway Guangzhou Group, Chengdu Railway Bureau, Qinghai-Tibet Railway Company, Wuhan Railway Bureau, Nanning Railway, and some others. Therefore, we are one of the most dedicated and experienced railway product manufacturers in China. We can offer one stop service for your railway new project and maintenance projects. Feel free to contact us.
