Railway Fish Plate

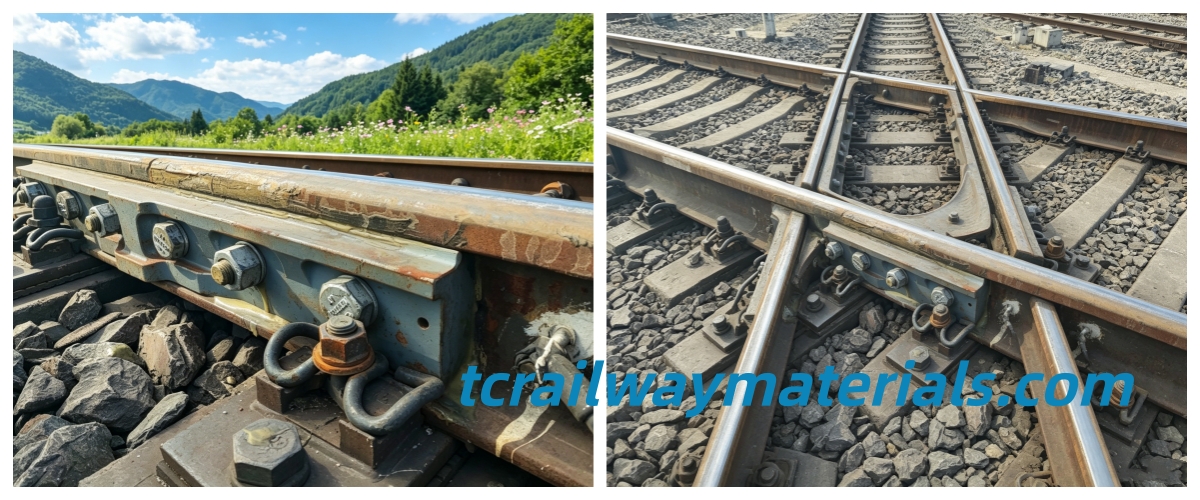

What is a fishplate in railway

Railway fish plate is also called railway joint bar or rail splice bar.  It is an essential rail fastener, used to firmly join the ends of two steel rails, maintain accurate rail alignment, ensure smooth train operation, and withstand heavy impact and vibration generated by running trains.

We are a professional and reliable railway fish plate supplier in China. We have 10 years of manufacturing experience and also possess professional research and development ability. Our products are widely used in high-speed and heavy-haul railways. To be mentioned, we have been supplying 30-ton axle load high-performance rail joint bars to Daqin and Shuohuang railways in China. We also supply quick rail fixing units, which can rapidly fix rails once defects and cracks are detected via rail and weld inspection. If you have any needs, please feel free to contact us. We sincerely look forward to establishing long-term cooperation with you.

Material of our railway fish plate

We are a reliable and experienced railway fish plate manufacturer. And we select high quality 55# steel and carbon steel as raw materials to produce high-performance railway fishplates. Meanwhile, we also supply matching fish bolts, which are made of Q235, 45 steel, 40Cr and other materials. Railway fish bolts are used to fasten fishplates and secure steel rails on railway tracks. We strictly control production quality and guarantee product quality. We are a reliable supplier of rail fish plate rail joint. Feel free to contact us.

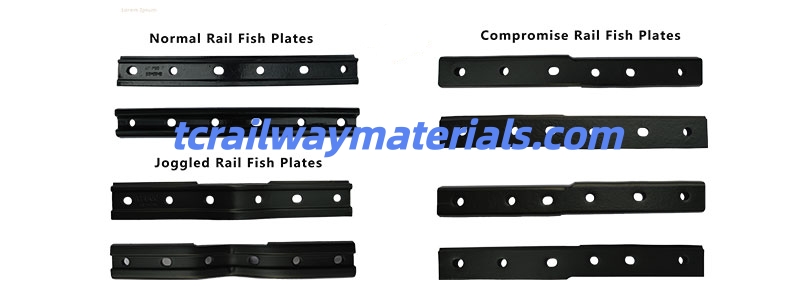

Types of our fish plate in railway

As a dedicated Chinese manufacturer of railway fishplates, we supply a full range of products classified as follows. According to the structural shape, our fishplates are divided into the following types: joggled fish plate, insulated fishplates (insulated rail joint), insulated rail joint, compromise rail joint, glued insulated fishplate. According to the international standards, our fishplates are categorized as follows: UIC standard fishplates, GOST standard fishplates, TB standard fishplates, AREMA standard fishplates, etc. According to the weight per meter of adapted rails, our rail joint bar are mainly classified into fish plate for 60 kg rail, 30kg, 38kg, 43kg, 50kg, 75kg and other specifications.

Our railway fishplates manufacturing process

Raw steel billet, shaping, sawing, heat treatment, material testing, drilling, machining, straightening, dimensional inspection and warehousing

Our railway fishplates technical parameters

Our railway fishplates application

We specialize in manufacturing various railroad joint bars, which have wide applications in railway lines. Our railway fishplates are widely used in urban rails, trams, passenger railways, high-speed rails and heavy-duty freight railways, and work stably at -40℃ to 50℃ with excellent rigidity, specifically designed for seamless tracks. We have rich experience in producing railroad joint bars and strictly control every production process to ensure product quality. Choosing us as your cooperative partner will bring you stable product quality and professional after-sales service. Feel free to contact us.

Railway fishplates quality control

Rail fish plates are vital components in railway infrastructure, which demand outstanding product stability. We attaches great importance to quality management. We conduct strict inspections on raw materials, as well as all production and warehousing procedures.

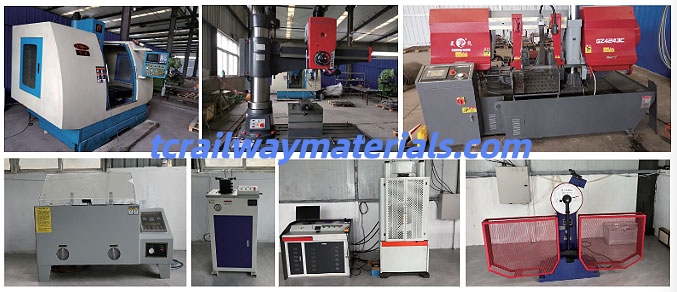

We have various testing equipments, including metal fluorescence analyzers, hardness testers and universal testing machines. We strictly follow ISO9001 system to manage quality throughout all procedures. We employ a team of professional quality inspectors. Each year, we send product batches to third-party labs with CMA and CNAS qualifications for sample tests. We also regularly calibrate testing equipment in strict accordance with the quality system to keep them in good working condition.

Why choose our Railway Fishplates

1. Wide range of fishplate

We manufacture a full range of rail fishplates, offering customized design and small-batch production services.

2. Comprehensive after-sales support

We provide comprehensive after-sales support and professional installation guidance. Detailed installation manuals are attached to each batch, clearly specifying preparations, working procedures and special tools.

3. Certified quality inspection

We offer professional quality certification. Large orders can be sent to CMA and CNAS qualified third-party labs, and formal test reports will be supplied along with goods.

4. Strong manufacturing capability

We have strong production capacity and stable delivery. We launched new professional production lines for UIC fishplates and own a quality inspection center. We can produce all kinds of fishplates to meet diverse demands.

5. Strict Quality Control

We strictly manufactures products in accordance with the ISO9001 quality management system, and many products have passed CRCC railway certification. We also have a professional quality inspection team to control all production processes, ensuring good quality and long service life.

6. Cost-effective partner

Therefore, We are a cost-effective partner deeply engaged in the railway accessories industry. We strictly control customers' usage costs and continuously upgrade our products. Our reliable fish plates can improve rail connection stability and greatly reduce equipment failures.

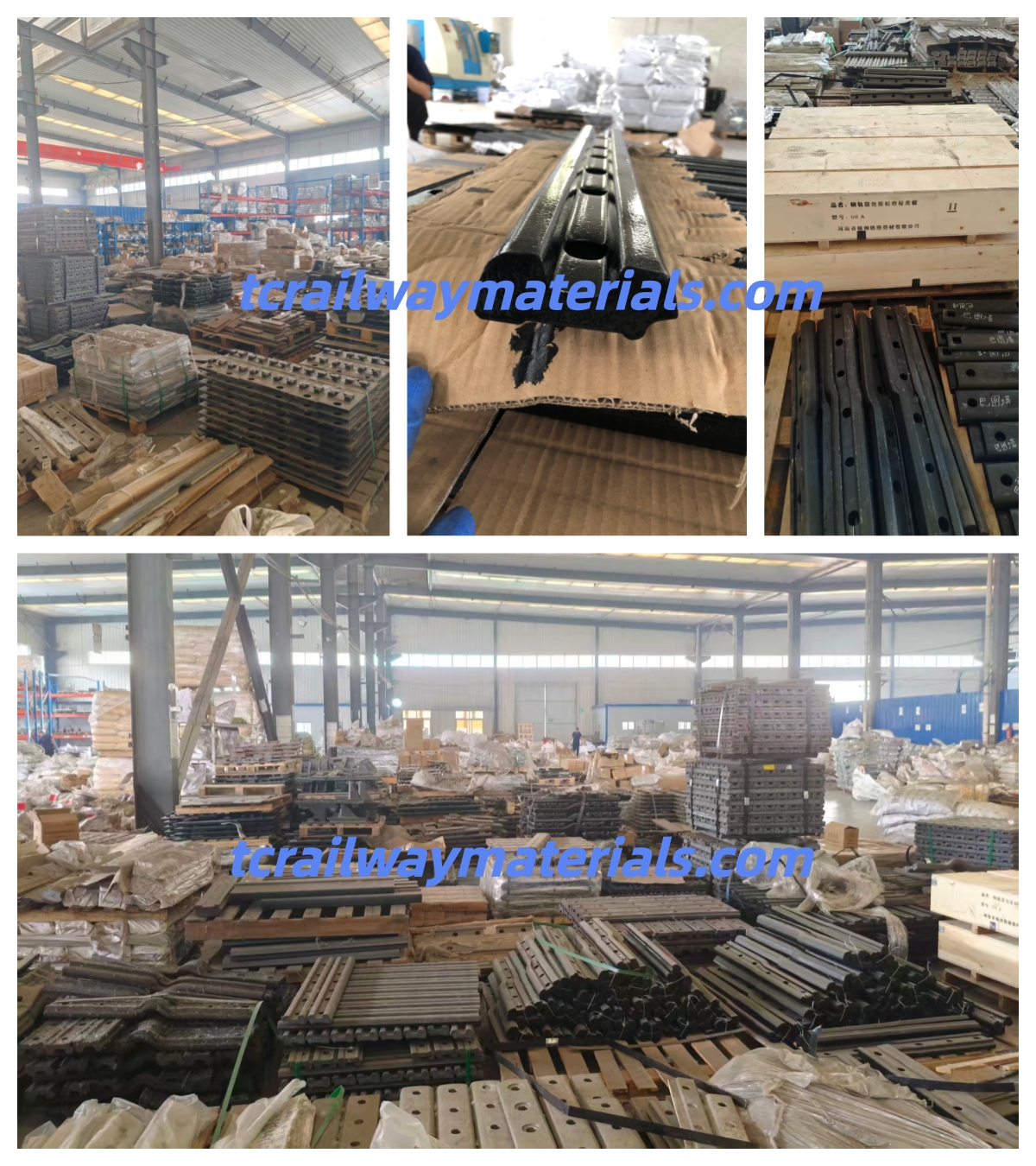

We are a reliable railway fishplates manufacturer

We are one of the most professional railway product manufacturers in China, and we have various high quality railway fish plates for sale. Our annual production capacity of rail splints reaches more than 50,000 pieces. We are fully equipped with CNC heat treatment furnaces, CNC sawing machines, CNC machining centers and gantry milling machines. Meanwhile, We have compiled technical processing documents for fishplates of all types and materials.

Therefore, we are one of the most dedicated and experienced railway product manufacturers in China. We can offer one stop service for your railway new project and maintenance projects. We will try our best to serve you very well and sincerely look forward to long-term cooperation with you.

Certification

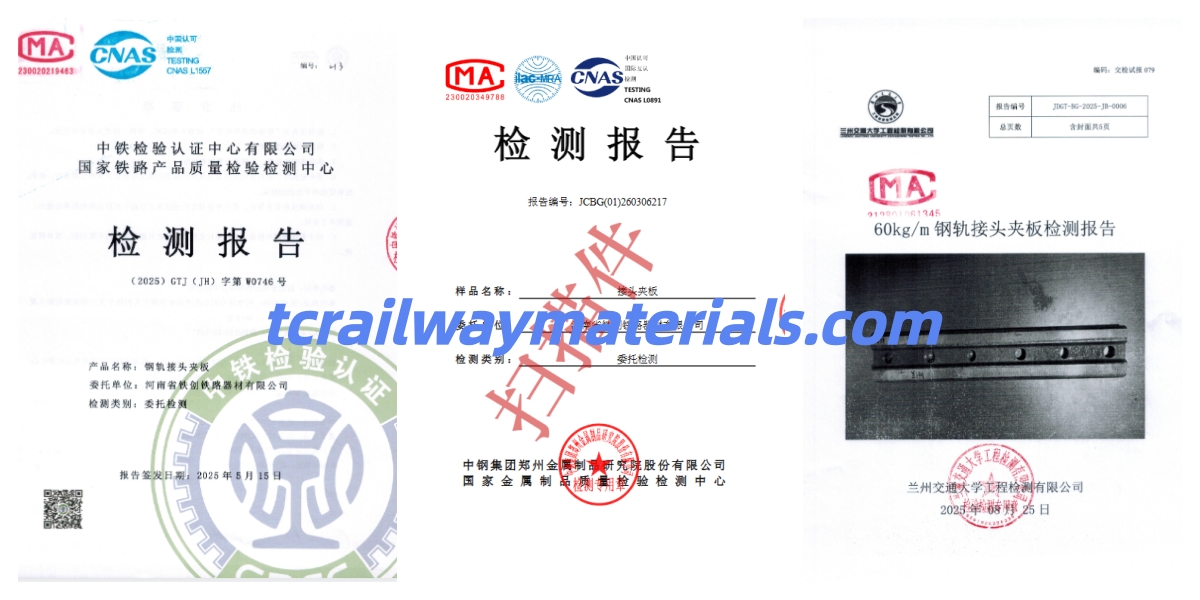

The three images below show authoritative third-party inspection reports for rail fishplates. Our products are inspected by authoritative institutions including China Railway Test and Certification Center, and we hold valid CMA and CNAS certified reports. Therefore, we are a reliable and trustworthy manufacturer of railway fishplates. No matter new railway construction or track maintenance projects, welcome to contact us anytime. We offer sincere service and sincerely hope to establish long-term cooperation with you.
