GOST R65 Rail Fish Plates and Splice Bars
GOST R65 Rail Fish Plates and Splice Bars

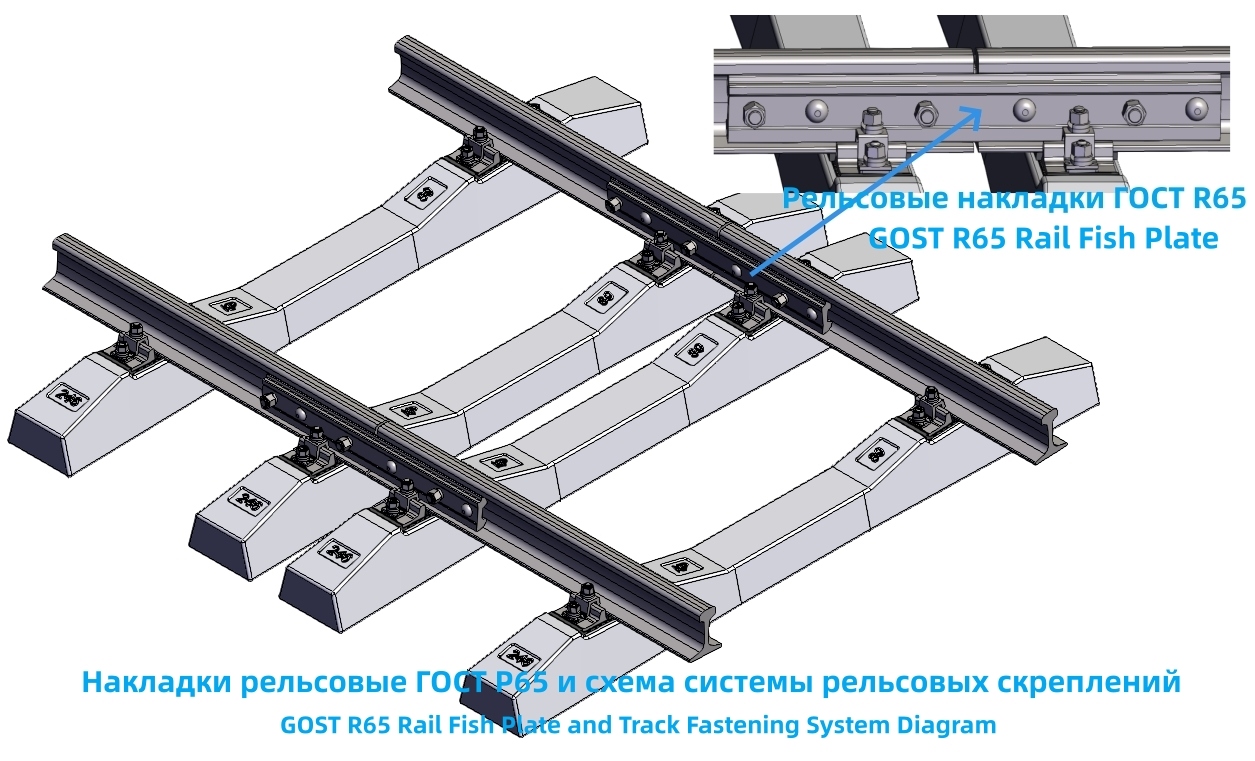

Our GOST standard fishplates are manufactured in strict accordance with GOST 33184-2014 and GOST 4133-1954. We supply GOST 33184-2014 compliant rail fish plates suitable for R50, R65 and R75 railway rails. Two configurations are offered: 4-hole and 6-hole patterns, with overall lengths of 820 mm and 1000 mm. And we fabricate GOST fishplates using Grade 55 steel — the same material as rails. The matching thermal expansion coefficient enables our plates to avoid joint loosening and stress concentration caused by temperature variations.
We are a specialized manufacturer with complete control from raw materials to finished goods. And we perform rigorous inspections for finished products in accordance with ISO quality management standards. We have upgraded our production workflows and now run full assembly lines for higher efficiency and reduced manufacturing costs. We welcome customers to send us inquiries and quotations, and we provide customized solutions tailored to clients’ special technical requirements.
GOST R65 Rail Fish Plates and Splice Bars Specification
Standard: GOST 33184-2014
Fit Rails: P50, P65, P75
Hole Types: 4-hole, 6-hole
Size and Weight: 820 mm / 24 kg; 1000 mm / 29.5 kg
Materials: 50Mn, 55# carbon steel, 65Mn alloy steel
Standard Compliance: Meet GOST chemical & mechanical standards
Stock: Semi-finished P65 blanks in stock for rapid processing & fast delivery
Matching Fish Bolts and Nuts:
Standard: GOST 11530-93
Size: M27×160
Stock: Ready stock for immediate delivery after order confirmation

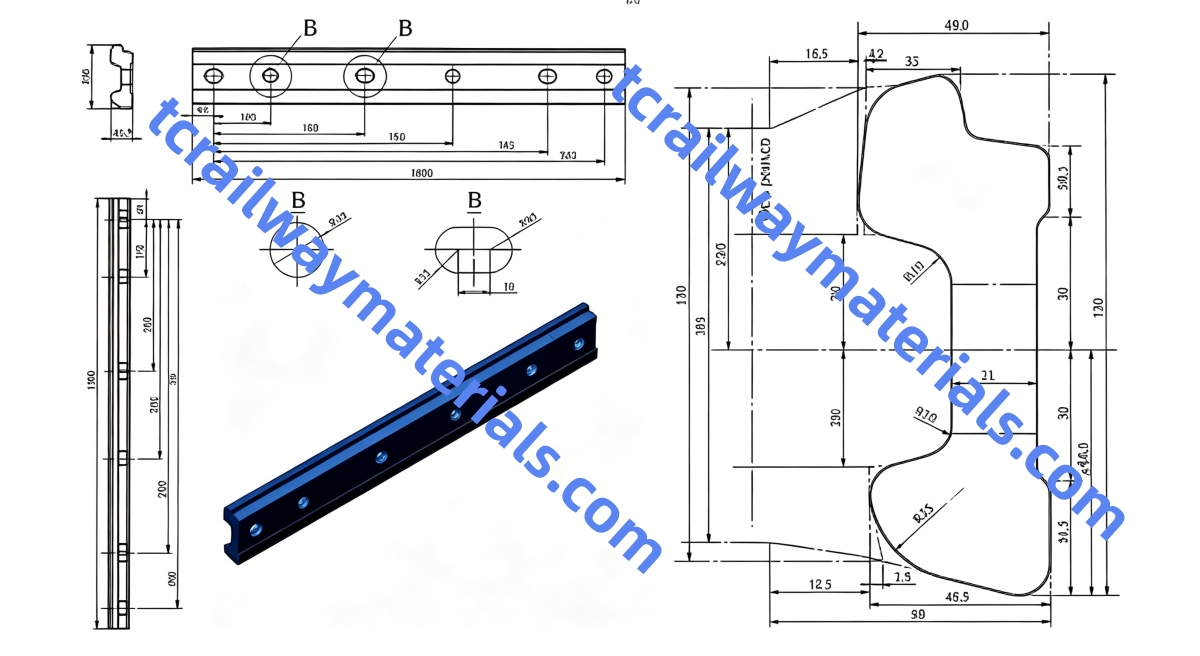

GOST R65 Rail Fish Plates and Splice Bars Drawing
Our GOST R65 Rail Fishplate: Chemical Composition of Steel Grades K54, E54, 55
Chemical composition testing performed on fish plate raw samples demonstrates that K54 and E54 steel must adhere to DSTU 8846 specifications, and Grade 55 steel shall follow DSTU 7809 per Table below.
| Марка сталі | Вуглець | Марганець | Кремній | Фосфор P не більше ніж | Сірка S не більше ніж | Миш’як As не більше ніж | Хром Cr |
|---|---|---|---|---|---|---|---|
| K54E54 | 0,45–0,62 | 0,50–0,85 | 0,15–0,35 | 0,04 | 0,05 | 0,08 | – |
| 55 | 0,52–0,60 | 0,50–0,80 | 0,17–0,37 | 0,035 | 0,04 | 0,08 | 0,25 |
Our GOST R65 Rail Fishplate: Chemical Composition of R260 Rail Steel (DSTU EN 13674-1 Standard)
For R260 rail steel, all chemical component values obtained from fish plate blank sample analysis shall comply with DSTU EN 13674-1 as shown in Table below.
| Марка сталі | Вуглець | Марганець | Кремній | Фосфор P не більше ніж | Сірка S не більше ніж | Хром Cr |
|---|---|---|---|---|---|---|
| R260 | 0,60–0,82 | 0,65–1,25 | 0,13–0,60 | 0,03 | 0,03 | ≤0,15 |
Our GOST R65 Rail Fish Plates: Straightness and Curvature Tolerances
All our GOST R65 rail fish plates shall maintain straightness; the allowable uniform curvature along the full length shall not exceed the values listed in the table below.
| Type of curvature | Size, mm |
|---|---|
| Bulge towards the rail head in the vertical plane | 1,6 |
| Bulge towards the rail sole in the vertical plane | 0,8 |
| Bulge towards the rail neck in the horizontal plane | 3,0 |
| Concave towards the rail neck in the horizontal plane | 2,4 |
Our GOST R65 Fishplates (K54, E54, 55 Hardened Steel) Mechanical Properties
The mechanical performance of finished hardened fishplates made from K54, E54 and 55 steel complies with DSTU 8846 standard, as shown in the table below.
| Марка сталі | Tensile resistance | Yield strength | Relative elongation after rupture | Relative constriction after rupture | Hardness range, HBW |
|---|---|---|---|---|---|
| K54E5455 | 844 (86,0) | 530 (54,0) | 10,0 | 30,0 | Від 235 до 388235～388 |
Our GOST R65 Fishplates, R260 Rail Steel (DSTU EN 13674-1 Standard) Mechanical Properties
The mechanical properties of R260 rail steel (for matching our fishplates) meet DSTU EN 13674-1 specifications, detailed in the table below.
| Марка сталі | Tensile strength, MPa | Relative elongation after rupture, % | Hardness range, HBW | Fracture toughness, MPa·m¹ᐟ² | Fatigue crack growth rate, m/Gc |
|---|---|---|---|---|---|
| R260 | 880 | 10 | Від 260 до 300260～300 | minimum single value 26, minimum average value 29 | ΔK=10 МПа·м¹ᐟ²：17; ΔK=13,5 МПа·м¹ᐟ²：55 |

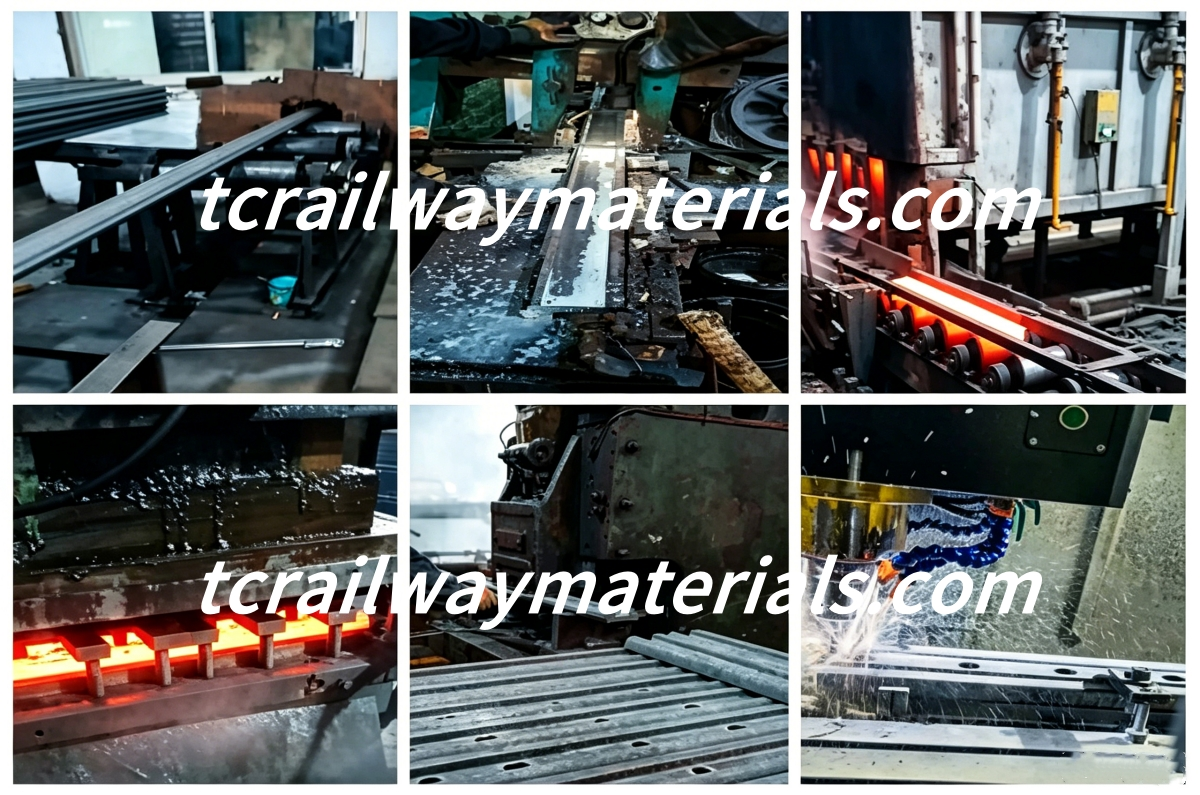

GOST R65 Rail Fish Plates and Splice Bars Manufacturing Processing Requirements
Gas flame cutting and electric arc cutting are prohibited for fishplate processing;
No burrs or bulged irregularities on fishplate ends and bolt hole edges;
minor trimming is allowed without exceeding dimensional tolerances;
No metal chipping shall occur when cutting steel bars or drilling bolt holes;
Welding repair or reworking to fix any defects on raw steel bars and finished fishplates is strictly forbidden.
Fish Plate Bolts & Splice Bar Bolts for GOST R65 Rail Joint Bars

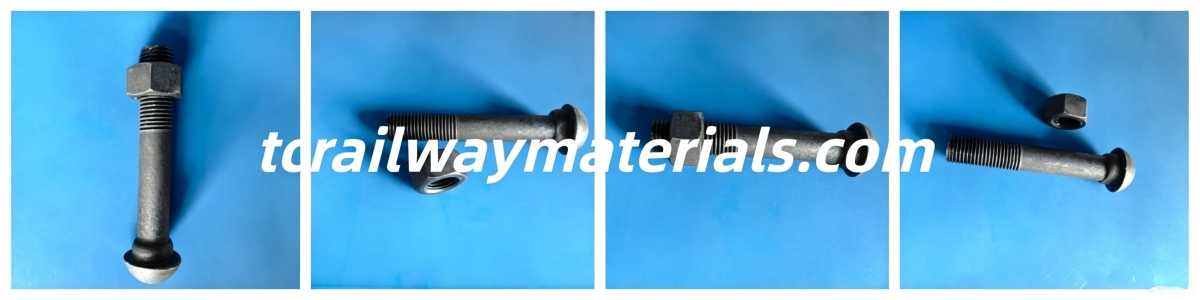

This fish plate bolt, also known as splice bar bolt, is specially matched with GOST R65 rail joint bars for railway track connection. The unique oval neck structure can lock tightly inside the fish plate hole to prevent rotation during installation, ensuring stable clamping of rail joints. We supply complete matching fastener sets including fish bolts and nuts, spring lock washers and rail gauge baffles, and support customized sizes according to customer drawings or samples, feel free to contact us.

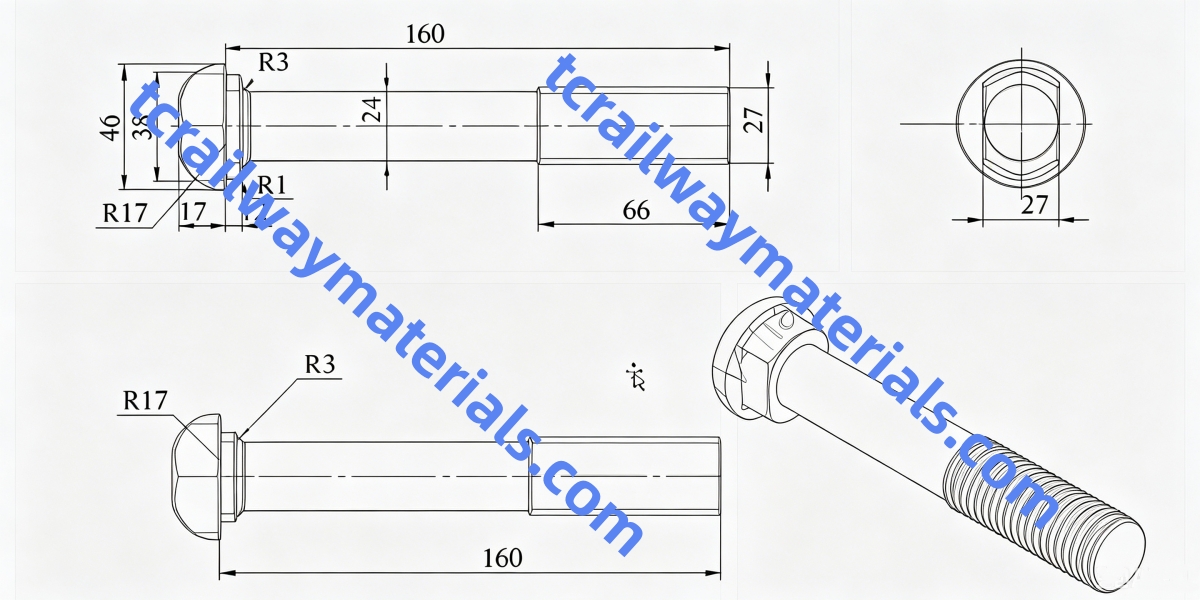

Fish Plate Bolts & Splice Bar Bolts for GOST R65 Rail Joint Bars Drawing
Fish Plate Bolts and Nuts | Specialized Railway Fastener Manufacturer
Our GOST rail fish plates are designed and manufactured strictly in accordance with GOST 33184-2014 and GOST 4133-1954 for dimensional specifications. We also refer to Chinese national standards GB/T 184-1963 and GB 185-1963 to guarantee full compatibility with both international and domestic standards. Custom production is available based on customers’ drawings or samples. We accept custom processing of various special-shaped and non-standard fish plates to satisfy the requirements of special railway lines. We can also supply complete sets of matching rail fastening accessories, including fish plate bolts and nuts, spring washers, gauge aprons and other rail joint fasteners.
Types of Fish Plate in Railway We supply
As a dedicated Chinese manufacturer of railway fishplates, we supply a full range of products classified as follows. According to the structural shape, our fishplates are divided into the following types: joggled fish plate, insulated fishplates (insulated rail joint), insulated rail joint, compromise rail joint, glued insulated fishplate. According to the international standards, our fishplates are categorized as follows: UIC standard fishplates, GOST standard fishplates, TB standard fishplates, AREMA standard fishplates, etc. According to the weight per meter of adapted rails, our rail joint bar are mainly classified into fish plate for 60 kg rail, 30kg, 38kg, 43kg, 50kg, 75kg and other specifications. Therefore, we have all types of railway fish plates for sale, feel free to contact us.
We provide a minimum 5-year warranty commencing from the date of delivery for all our fishplates. And we guarantee all fishplates comply with relevant railway manufacturing standards and specifications, on the condition that buyers follow correct transportation, storage, installation and operation guidelines.
Certifications
We are an experienced and reliable manufacturer of railway products, we emphasize quality control, and we have our own professional inspection center and a comprehensive quality management system. Also, our products have passed the ISO9001 quality management system, ISO14001 environmental management system and ISO45001 occupational health and safety management system triple certification, and we have also passed the product certification of China CRCC. We are indeed a trustworthy railway product supplier, Please contact us anytime if you have any needs.
