Glued Insulated Rail Joint

What is a glued insulated rail joint

Glued insulated rail joints are key parts of track circuits, and they are widely used in turnouts and seamless tracks. We are a professional and experienced manufacturer of glued insulated joints. And we have obtained CRCC certification for the glued joint in railway. Our glued insulated fish plates have the advantages of high strength, good insulation, easy installation and long service life. They are widely supplied to leading engineering institutes, China Energy Group, and local subway companies. Annual shipments exceed 5,000 sets. Our glued insulated rail joints are widely used in high-speed and heavy-haul railways. With a decade of manufacturing experience, we can offer rail joints with excellent insulation performance and reliable quality. Customization is available, Feel free to contact us anytime.

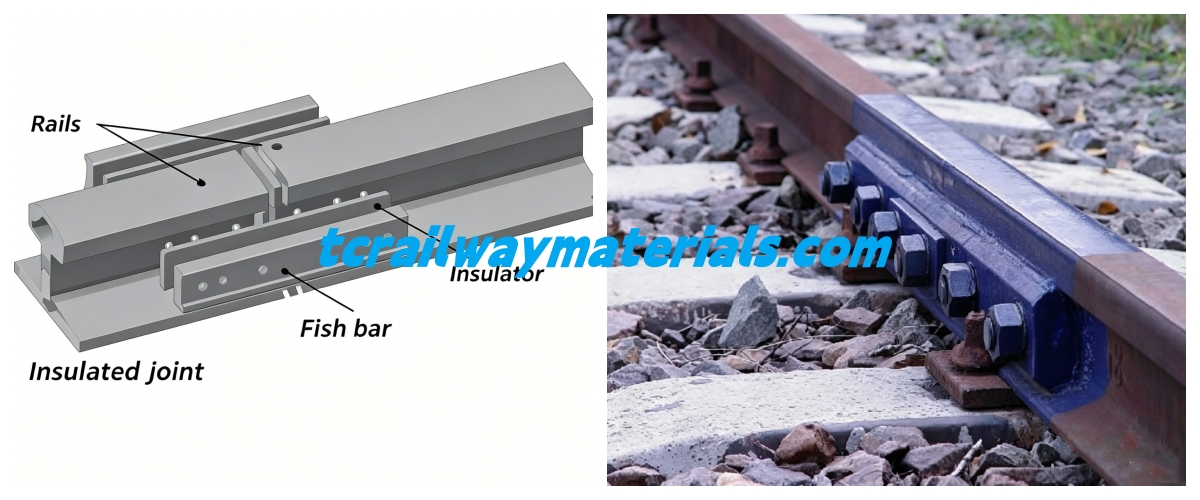

Glued insulated rail joint components

1. Joint bar 2. Insulation layer 3. Channel steel plate (optional) 4. Adhesive 5. Insulating bushing 6. High strength bolt 7. Flat washer 8. High strength nut

Glued insulated rail joint technical parametes

Glued insulated rail joint we offered

We can supply high performance glued insulated joints compatible with various rail specifications including 50/60/75/60E1, etc. Owing to reliable quality, our glued insulated joints are widely recognized and trusted by customers both at home and abroad. Below are the production drawings and technical specifications we provide for our clients, all of which are strictly controlled to meet international railway standards, ensuring consistent and reliable performance for every railway project.

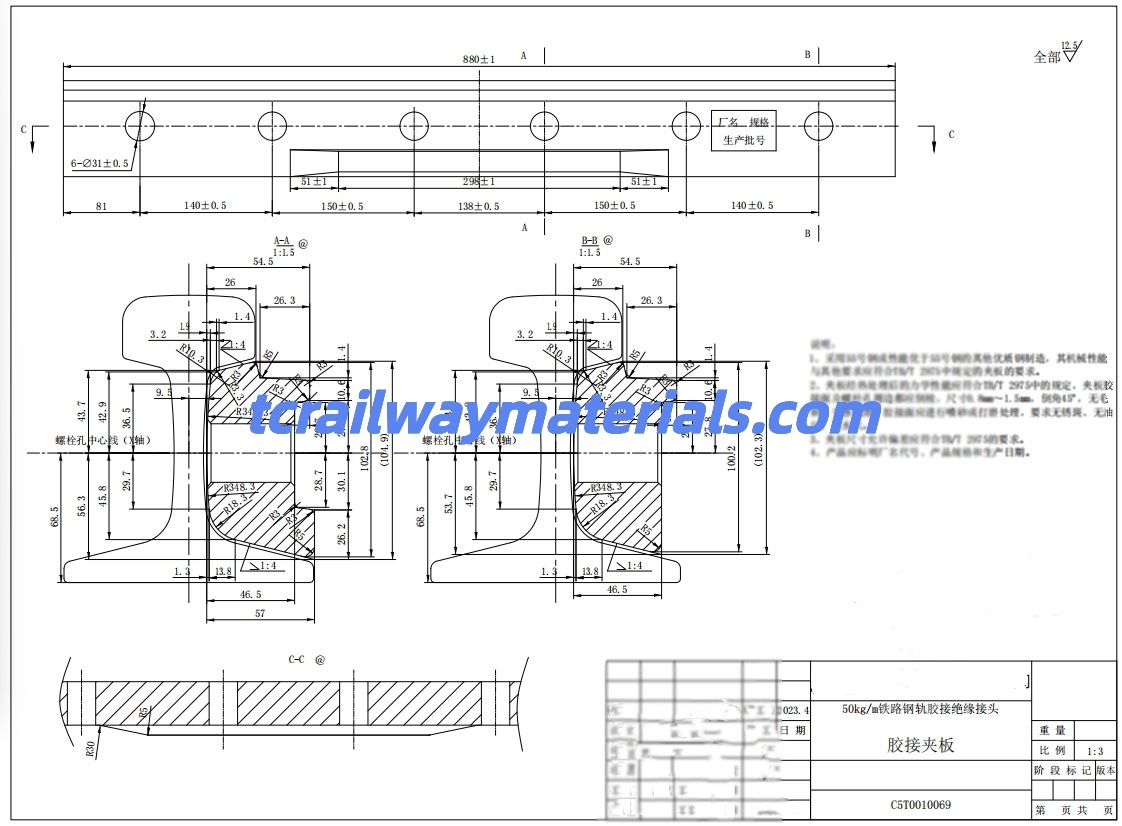

50, 60kg/m glued insulated rail joint, comply with TB/T 2975

Technical requirements:

1. They are made from 55 steel or superior quality steel materials. Its mechanical properties and other requirements shall comply with the specifications for joint bars in TB/T 2975. 2. After heat treatment, the mechanical properties of the fishplates comply with the requirements specified in TB/T 2975. The bonding surfaces and bolt hole edges are chamfered at a 45-degree angle, with a width of 0.8-1.5 mm. The surfaces are smooth and free of burrs. The bonding surfaces are sandblast or grinding to remove rust, oil, and moisture.

3. Sandblast or grind the bonding surface to remove rust, oil and moisture. Allowable dimensional deviations should meet TB/T 2975 requirements. 4. Products should be marked with factory code, specifications and production date. 5. Glued insulated fishplate applicable to 60kg rail, same technical standards as 50kg rail.

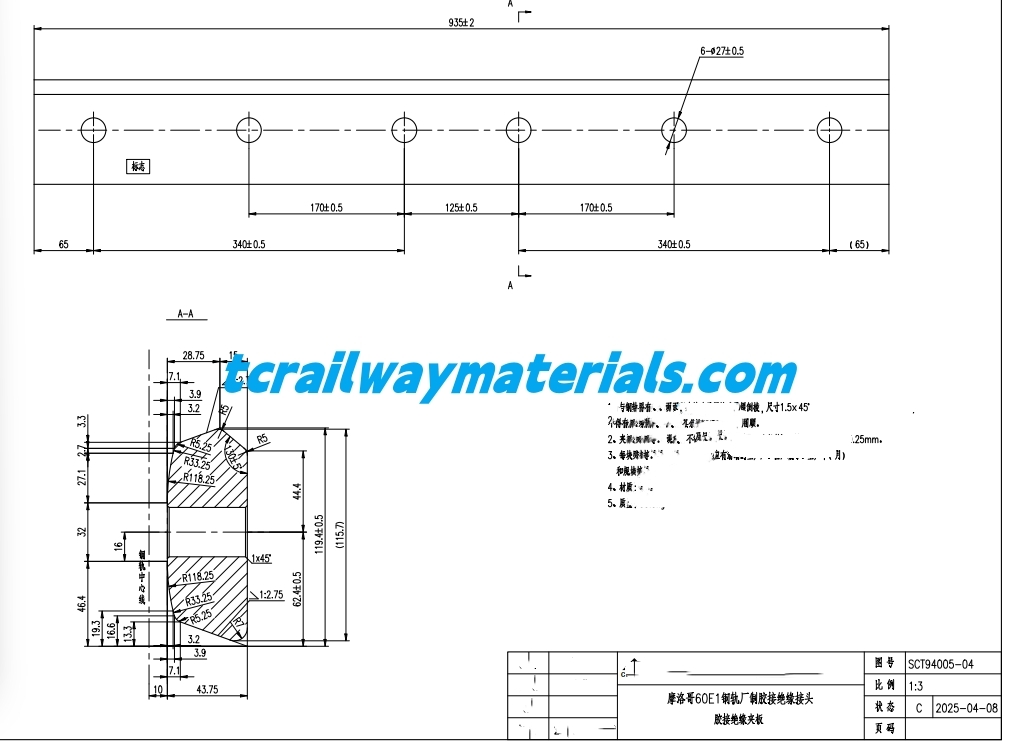

UIC 60E1 glued insulated rail joint

Technical requirements:

1. All edges and bolt holes on the inner bonding surface must be chamfered at 1.5×45° and polished smoothly. The inner surface must be smooth without burrs or unevenness, and all other edges shall be polished smoothly. 2. The joint bar must be flattened and straightened without bending.  Its total deflection shall be no more than 0.25mm when inspected with straightedge. 3. Each glued insulated joint bar shall be clearly marked with manufacturer, serial number, production date and specification on outer surface. 4. Material: 55# steel  5. Weight: 33.5kg

Advantages of our glued insulated rail joint

1. Excellent Performance

Our fishplates are made of eco-friendly materials, featuring excellent insulation and great durability. They have been widely used nationwide for decades to ensure stable railway operation.

2. Reliable Qualification

Our glued insulated joints are certified by CRCC. We possess independent R&D capability and offer customized specifications.

3. Wide Application

We deliver over 5,000 sets every year. We mainly supply major engineering bureaus, national energy groups and local subway companies. Our products are widely applied to heavy-haul and high-speed railways.

Our glued insulated rail joint  performance inspection

Conclusion: The products of this batch have been tested and meet the requirements of the People's Republic of China Railway Industry Standard TB/T2975-2018. The products of this batch are qualified. Test results of our glued insulated fishplates verify outstanding performance:

Insulation resistance: >500 MΩ (meets/exceeds TB/T2975-2018 requirement of ≥20 MΩ), Tensile shear strength: 54.2 MPa (far above the 35 MPa standard). These figures prove our products meet and exceed railway industry standards, providing reliable insulation and mechanical performance for heavy-haul and high-speed rail applications.

Therefore, we are a reliable professional manufacturer of railway fish plates, specializing in the production and sales of high-performance glued joint in railway. Our glued insulated rail joint can keep excellent performance even under severe working conditions. We hold CRCC certification and boast independent R&D capabilities. Our partner China Energy Group sets strict standards for glued insulated joints used on heavy-duty lines and seeks products with enhanced insulation and strength. We are actively developing such new products.

In addition to rail fish plates, we also offer a full range of other railway products, including Rail fasteners: elastic rail clips, Frozen joint bar, Glued insulated rail joint, Rail brace, Gauge rods; Railway turnouts and parts: rail base plates, slide plates, spacer blocks, Machined Turnout Parts, Complete Turnout. We also supply rail milling trains and railway maintenance tools. Customization is available. Feel free to contact us anytime.

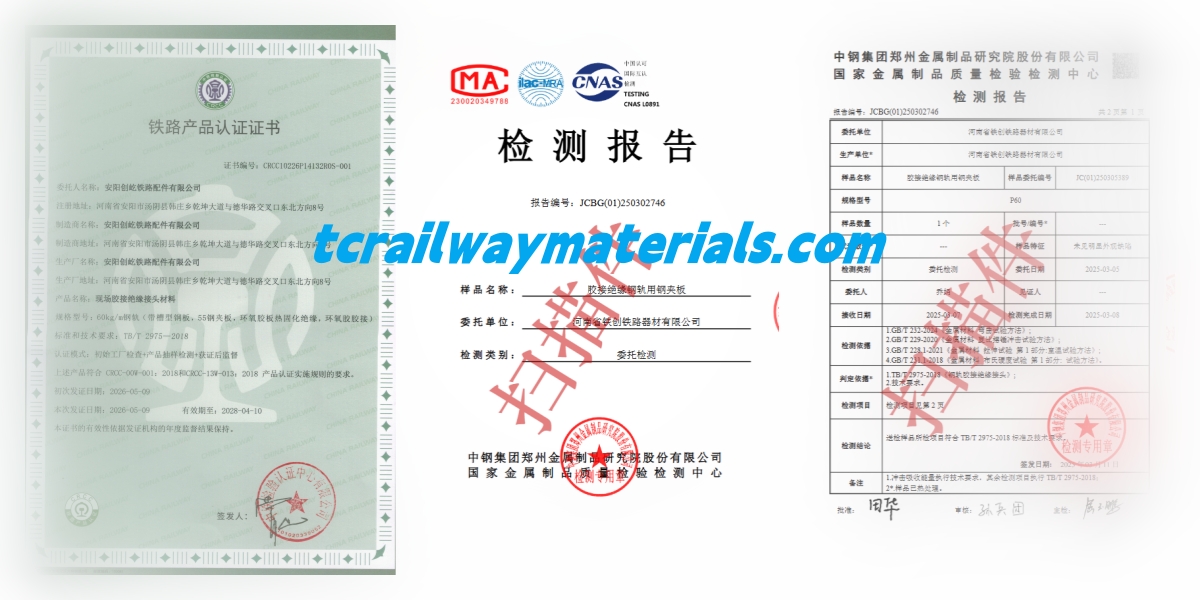

Certification
