Rail Fish Plates Specifications for Various International Standards

Rail joint bar

Rail joint bar, also called rail splice bar, rail fish plate, is a kind of rail fastener used to connect railway rails. We are a professional Chinese manufacturer of railway fish plates with 10 years production experience. We supply types of fish plate in railway that comply with American, British, Russian, African, European and DIN standards. We own independent R&D capability and produce strictly in accordance with ISO9001 quality management system to ensure stable product quality. Our products are steadily supplied to domestic high-speed and heavy-haul railways such as Daqin and Shuohuang railway lines. We can meet demands for both railway construction and maintenance projects. Feel free to contact us for inquiries.

International standard rail fish plates specifications

American standard (AREMA/ASCE) railroad joint bars

We manufacture high-quality AREMA standard fish plates. The 4-hole type suits regular railway lines, and the 6-hole version is for heavy-duty rail lines.

Specification:

Standard: AREMA 2010

Material: Chinese steel grade 55#

Applicable rail sizes: 115RE, 119RE, 132RE, 136RE, 141RE, 100RE, 100RB, 85AS, 80AS, 70AS,60AS

Mechanical Property:

Tensile strength Rm: ≥690 Mpa

Yield strength Rel / Rr0.2: ≥480 Mpa

Elongation A : ≥12%

Reduction of Area Z: ≥25%

Technical Parameters:

British standard (BS) railway joint bar

We supply high-strength fish plates, compatible with BS75R, BS80A, BS90A, BS100A and BS113A rails.

Specification:

Standard: BS47-1

Material: Chinese steel grade 40#

Applicable rail size: BS75R, BS80A, BS90A, BS100A, BS113A

Tensile strength Rm: 550-650 Mpa

Elongation A : ≥18%

Technical Parameters:

Russian standard (GOST) rail fish plates

Specification:

Standard:GOST 33184 / DSTU8848 / DSTU8790

Material: Chinese steel grade 55#

Size: P50, P60, P65, P75, R50, R60, R65, R75

Mechanical Property:

Tensile strength Rm: ≥844 Mpa

Yield strength Rel / Rr0.2: ≥530 Mpa

Elongation A : ≥10%

Reduction of Area Z: ≥30%

Technical Parameters:

European standard (UIC/EN) rail fish plates

Specification:

Standard: UIC864-4 & UIC864-8

Material: Chinese steel grade 40#

Size: U79 - UIC54, U85 - UIC60

Tensile strength Rm: 550-650 Mpa

Elongation A : ≥18%

Technical Parameters:

DIN standard rail fish plates

Specification:

German Industry Standard Fish plate

Standard: DIN5902-1995

Material: Chinese steel grade Q235 or Chinese steel grade Q295

Size: Fl10, Fl14, Fl18, Fl20, Fl30, Fl33, Fl41-49, Fl41-54

Mechanical Property:

Mechanical Property (Fl10 - Fl20)

Tensile strength Rm : ≥375 Mpa

Yield strength ReL / Rr0.2: ≥235 Mpa

Elongation A : ≥21%

Mechanical Property (Fl30 - Fl41-54):

Tensile strength Rm : ≥390 Mpa

Yield strength ReL / Rr0.2: ≥295 Mpa

Elongation A : ≥23%

Chinese Standard Fish Plates

Specification:

Standard: TB/T2345-2008

Material: Chinese steel grade 55#

Size: 43KG , 50KG, 60KG, 75KG

Mechanical Property:

Tensile strength Rm : ≥785 Mpa

Yield strength Rel / Rr0.2 : ≥520 Mpa

Elongation A : ≥9%

Reduction of Area Z: ≥20%

Brinell Hardness HBW10 / 3000 : HBW 227-388

Cold Bend d=3a : 30 degree, no crack

Technical Parameters:

Types of rail joints

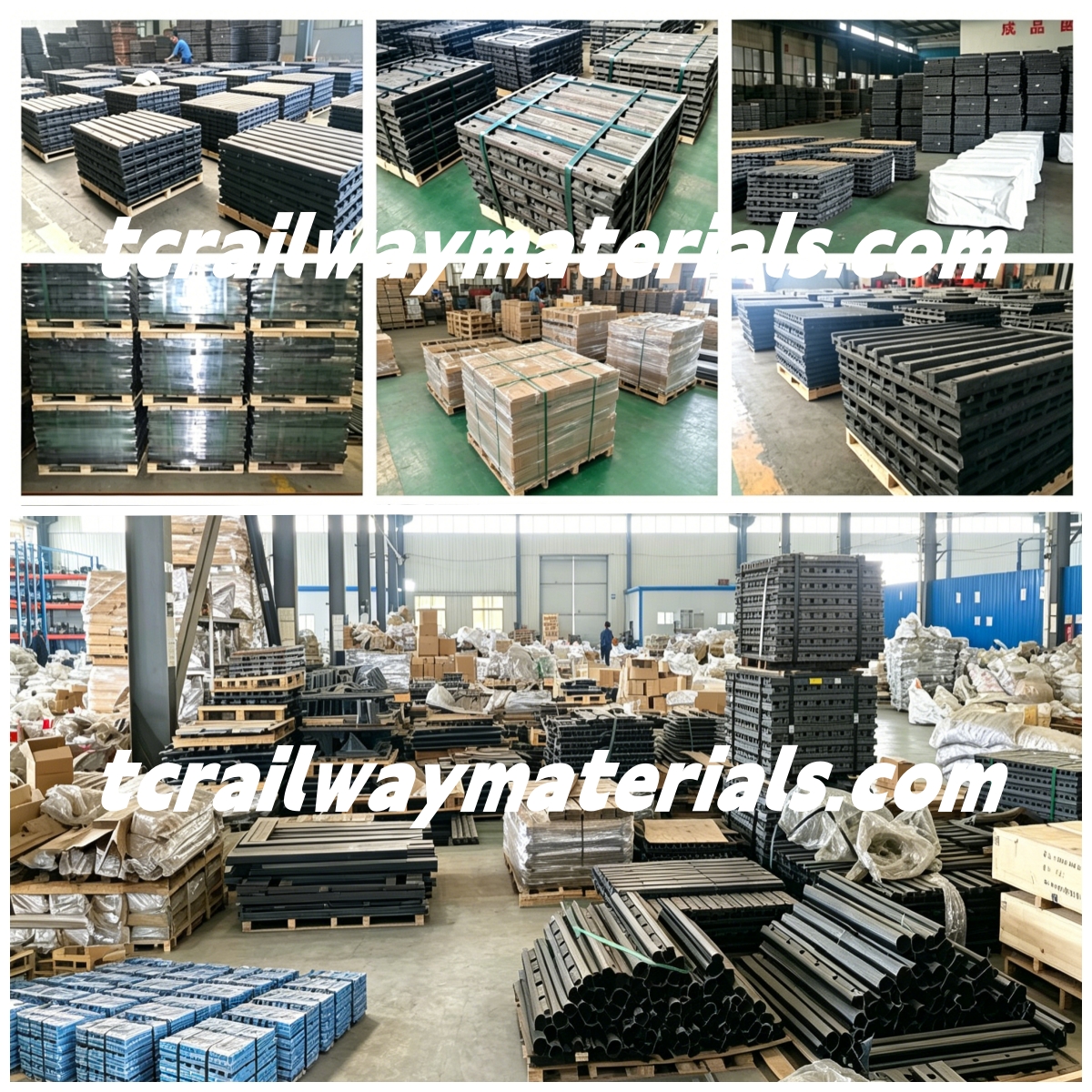

We are a reliable rail fish plate supplier

We are a dedicated manufacturer specializing in railway products. We have international standard various railway fish plates for sale, as well as some other types such as compromise rail joints and insulated rail joints. We achieve large annual production and sales volumes of railway joint bars in China. And we added a new UIC fish plate production line this May. Therefore, we are a reliable railway fish plate supplier with strong production capacity. Customization is available. Feel free to contact us anytime with your demands.
