KB-65 Separate Rail Fastening System for GOST R65 Rails
KB-65 Separate Rail Fastening System for GOST R65 Rails

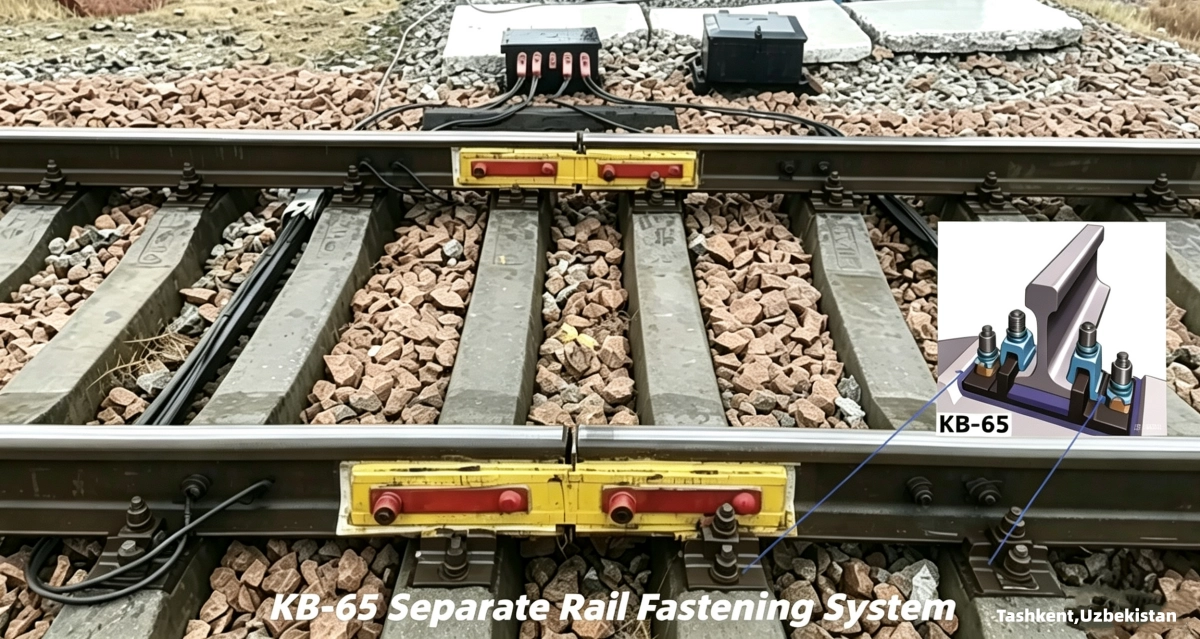

Our GOST KB‑65 Separate rail fastening system is intended for 1520 mm broad‑gauge tracks with R‑65 rails and concrete sleepers. It is widely applied in new construction and track upgrading railway projects of CIS countries including Russia, Uzbekistan and Kazakhstan. The complete system adopts a separated structural design. The KB-65 baseplate acts as the core load-bearing component, and two independent bolt assemblies perform separate functions: rail clamping and fastening the baseplate to the sleepers. It can evenly distribute train loads, securely maintain track gauge, and provide excellent vibration damping and electrical insulation performance.
Main Components of the Separate Rail Fastening System

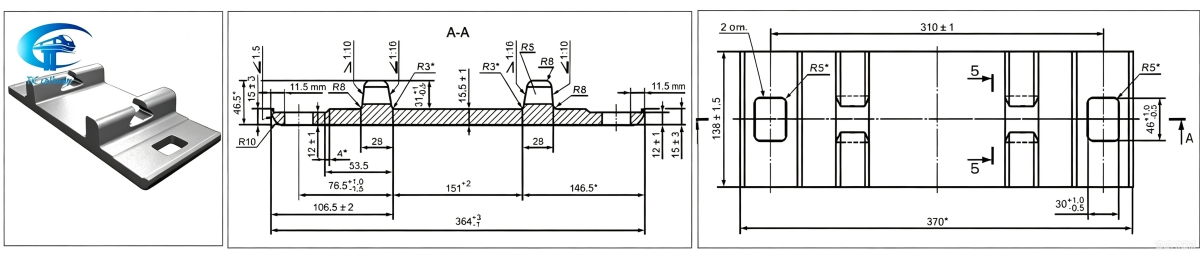

1. KB-65 Baseplate (Подкладка КБ-65)
Our KB-65 Rail Baseplate is one of the key components of KB-65 Separate rail fastening systems for 1520 mm broad‑gauge railway tracks. Below is its drawing for your reference. It is positioned beneath the rail and above the concrete sleeper. In conjunction with its dedicated rail fasteners, it forms a stable bolt‑and‑clamp connection. It evenly distributes loads from rolling stock, restricts rail displacement, and provides the required rail cant (the inward inclination angle of the rail toward the gauge side).
Drawing:
Structural Features:
Two through holes are used for anchor bolts (M22×175) to fasten the baseplate to concrete sleepers.
Two bosses are designed for rail clamps and fastening bolts (M22×75) to lock the rail.
Technical Specifications:
| Item | Specification |
|---|---|
| Overall Dimensions (mm) | Length 370 × Width 140 × Height 47.5 |
| Weight | Approx. 6.85～7 kg per piece |
| Material | Rolled carbon steel plate |
| Standard Steel Grades | Ст4пс, Ст4кп, Ст4сп (GOST 380); Grade 2 or Grade 3 (GOST 535) |
| Alloying Elements | Copper, manganese and carbon can be added to enhance corrosion resistance and structural strength |
Why Choose Our KB-65 Split-type Rail Base Plate for GOST R65 Rails

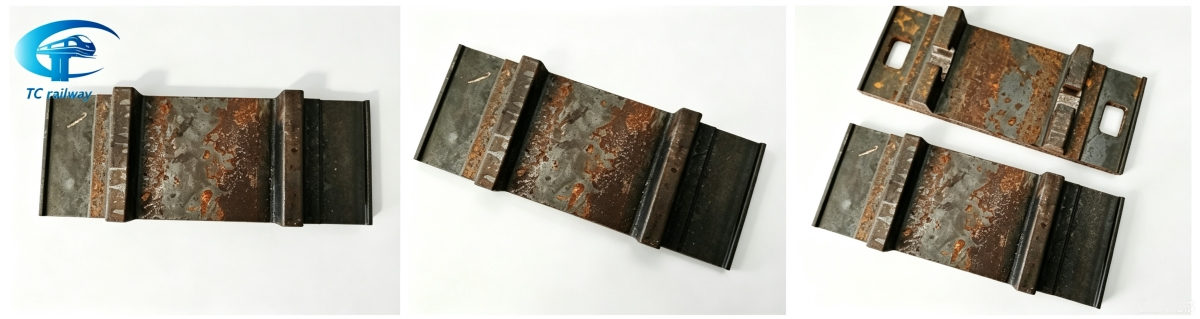

We supply high-performance KB-65 split-type rail base plates for GOST R65 rails. They are fabricated from Q235 carbon steel via hot rolling process. As a professional and experienced manufacturer of railway products, our KB-65 split-type rail base plates have various advantages: stable quality, competitive pricing and large stock available. Please view our KB-65 split-type rail base plates product images above for your reference. And if you have any requirements, feel free to contact us. We can cater to all your project requirements.
2. Type CP143/74 Rail Pad (Прокладка ЦП143/74)
The type CP143/74 rail pad we supply is installed under the rail foot of GOST‑compliant R‑65 rails for 1520 mm broad‑gauge tracks. It is widely used with the KB‑65 fastening system for concrete sleepers, and is also compatible with other systems including KB‑50 and KD‑65.
3. Type CP-328 Rail Rubber Pad (Прокладка ЦП328)
Our CP‑328 is an under‑sleeper rubber pad. Its primary function is to serve as a shock‑absorbing element in railway track assemblies. It is installed between reinforced concrete sleepers and the KB‑65 steel base plate.
They are manufactured from special rubber compounds, offering excellent wear resistance. They distribute dynamic impact loads from rolling stock, protecting sleepers and other track components against damage. Besides, they provide electrical insulation to guarantee reliable performance of signalling systems and track circuits. Furthermore, they create longitudinal resistance to maintain stable rail positioning.

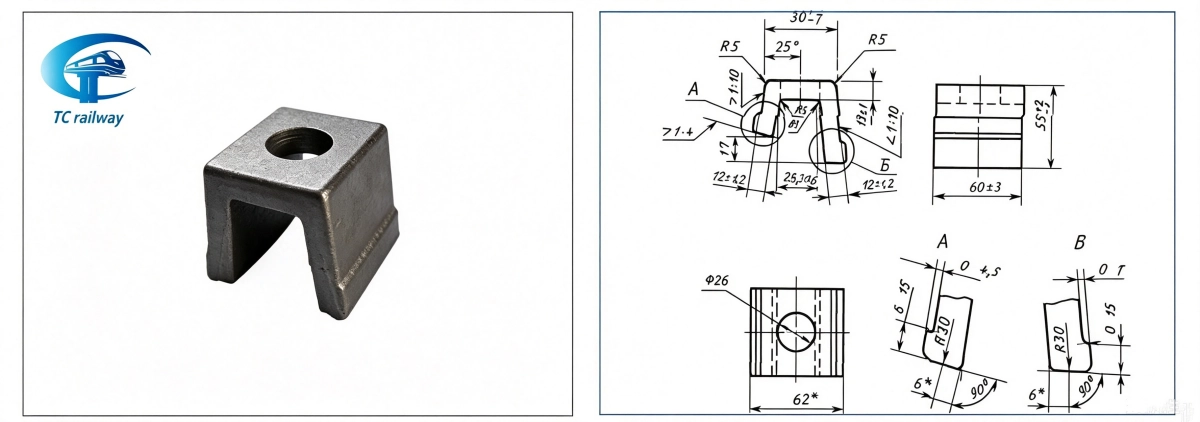

4. PK Intermediate Rail Clamp for R‑65 Rails, KB‑65 Rail Fastening System (Клеммы промежуточные для рельсов Р-65)
Our intermediate rail clamp for GOST R65 rails is manufactured in accordance with GOST 22343-2014. It is applied to split-type rail fastening systems including КБ-65 and КД-65, serving to firmly press the rail foot onto the rail base plate. It holds the rail in position to prevent displacement and overturning under train loads, while absorbing vibration loads. This clamp, combined with M22 clamping bolts, nuts and washers, forms a complete rail fastening unit of the КБ-65 split-type rail fastening system.
Drawing:
Technical Specifications:
| Item | Parameter |
|---|---|
| Material | Manufactured from carbon steel grades St4kp, St4ps, St4sp (GOST 380), or Grade 1 / Grade 2 steel complying with GOST 535 |
| Alternative equivalent materials | Q235 carbon steel, 40# steel |
| Overall dimensions | Approx. 62 × 55 × 12 mm |
| Unit weight | 0.625–0.64 kg. Approximately 1515–1563 pieces per tonne |
| Cross-sectional area | 14.7 cm² |

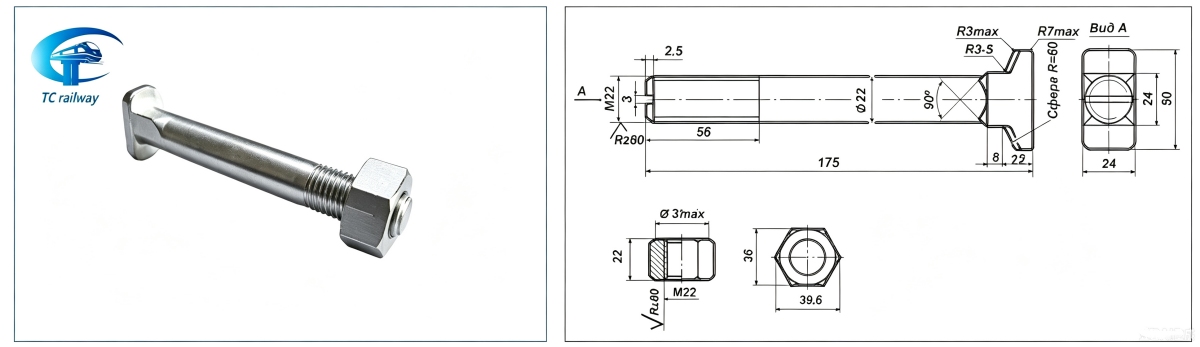

5. Anchor bolts M22×175 with nuts (Болты закладные с гайками М22-175 в комплекте с гайкой М22-75)
Our M22×175 anchor bolt is used to fasten the rail base plate onto reinforced concrete sleepers in the КБ-65 split-type rail fastening system. It creates stable, long-lasting connections for railway track infrastructure. It is matched with a dedicated M22 nut, which is tightened for fastening during on-site installation. This dedicated M22 nut serves as a vital locking component of the КБ-65 fastening system, providing persistent preload to maintain stable assembly. Furthermore, it is interchangeable for both M22×175 embedded anchor bolts and M22×75 clamp bolts in the system.
Drawing:
Technical Specifications：
| Item | Parameter |
|---|---|
| Thread diameter | 22 mm |
| Bolt length | 175 mm |
| Thread pitch | 2.5 mm |
| Bolt strength class | 4.8 (3.6 and 5.8 are available as alternatives) |
| Material | Grade 20 structural carbon steel |
| Bolt tolerance class | Class B / Class C (GOST 16017-2014) |
| Surface coating | Zinc chromate plating (Code 01) available, coating thickness 15 μm |
| Reference weight per 1000 pieces | Type 1 (M22×175) — 635 kg; Type 2 (M22×175) — 591 kg |
| Unit Weight of M22 nut | 0.126 kg |
| Assembly weight (bolt + nut) | approx. 1.003 kg |

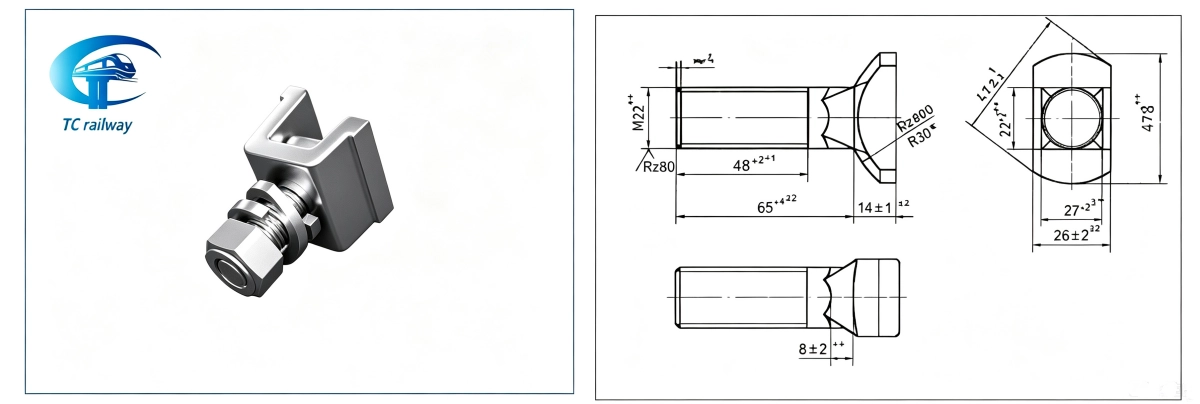

6. M22×75 Rail Clamp Fastening Bolt with M22 Nut, supplied complete with M22×75 Bolt and Nut Assembly (Болты клеммные с гайками М22-175 в комплекте с гайкой М22-75)
Our M22×75 rail clamp fastening bolt is manufactured in accordance with GOST 16016-2014. It works with the PK clamp to firmly secure rails onto rail base plates for the КБ-65 split-type rail fastening system, and is also compatible with КБ, КД and СК series fastening systems.
Drawing:
Technical Parameters:
| Item | Parameter |
|---|---|
| Thread Diameter | 22 mm |
| Bolt Length | 75 mm |
| Thread Type | Coarse Pitch Thread |
| Thread Tolerance | 8g |
| Accuracy Class | Class B (GOST 1759.1) |
| Material | CT20 / CT20KP Carbon Steel Billet |
| Mechanical Strength Class | Min. 4.8 |
| Surface Finish | Zinc chromate anti-corrosion coating available on request, coating thickness 9–15 μm |
| Unit Weight | approx. 0.345 kg |
Application:
Our bolt is suitable for КБ-65 and other rail fastening systems designed for use with reinforced concrete sleepers. Applicable rail types: P65 and P50 rails. Scope of application: Main railway lines, passing sidings, station tracks, urban rail transit, industrial private sidings and technological tracks. It is also suitable for crane rail fastening.

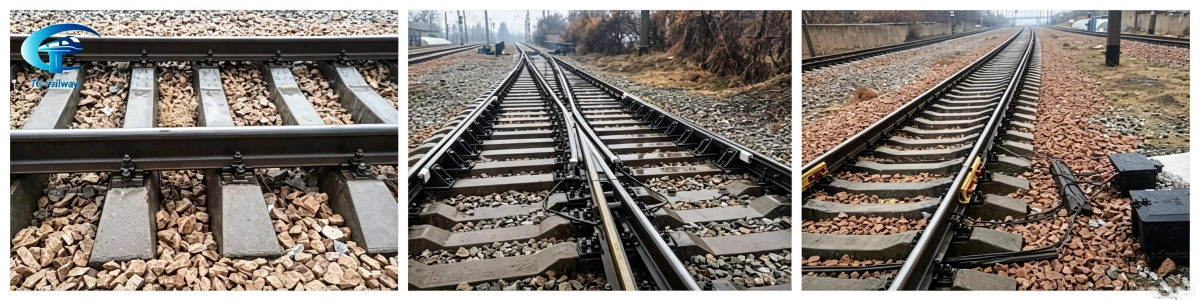

KB-65 Separate Rail Fastening System for GOST R65 Rails Application
This electrified trunk line is located in Tashkent, Uzbekistan. It features the GOST 1520 mm broad gauge and is laid with GOST R65 steel rails, fitted with the KB-65 split-type rail fastening system. Our components of KB-65 separate rail fastening system are widely applied on similar railway lines across the CIS region. Refer to the photos below for more details. We specialize in manufacturing this type of rail base plate and all other components for the KB-65 rail fastening system. Custom production is available according to your drawings or technical requirements. Please feel free to contact us for inquiries.
Full Range of Railway Fasteners for Sale
We are a professional manufacturer of railway fastening products. Our product range includes: Rail fasteners: rail clips, rail fish plates, frozen joint bars, glued joint bars, rail braces and gauge rods; Railway turnouts & components: rail base plates, slide plates, spacer blocks and machined turnout parts, as well as complete turnouts. We also provide rail milling vehicles and railway maintenance tools.
We can customize railway products according to your drawings. We always focus on product quality. We have a technical center and a quality inspection center, along with complete technical and quality systems. And all our products are inspected before delivery to ensure consistent quality for bulk orders.
Professional and Experienced Rail Fasteners Manufacturer

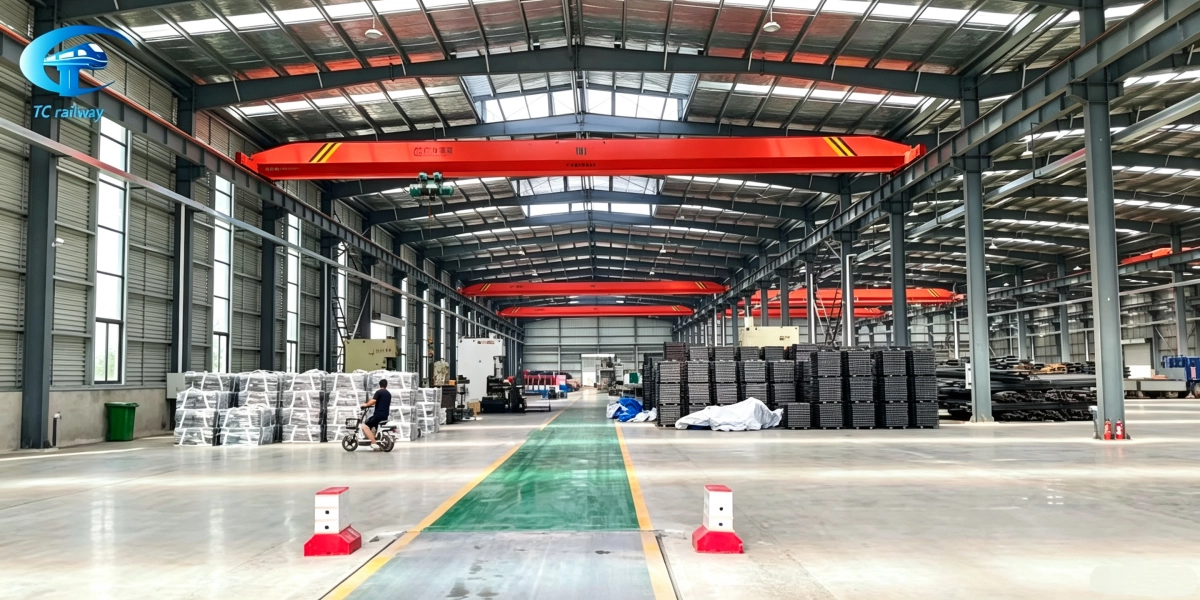

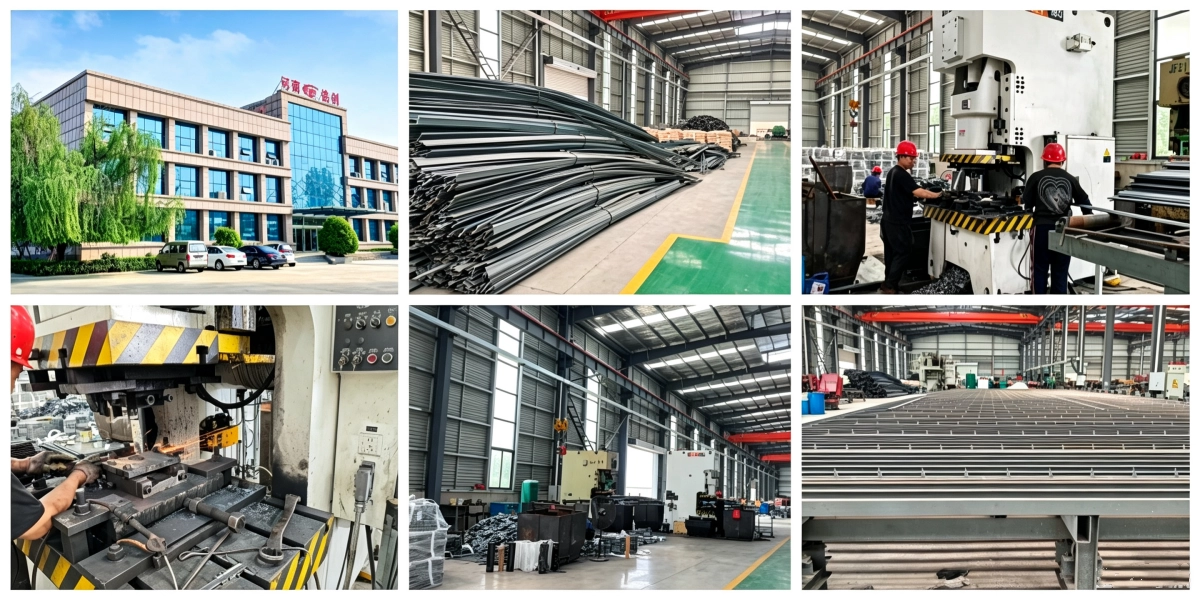

We are an professional and experienced manufacturer of railway products. We have been manufacturing railway products for 10 years. Our factory occupies 80 acres. We have multiple production lines, including 2 for bolts, 3 for iron tie plates, and 2 for rail elastic clips. And our annual production capacity reaches 2 million pieces of various bolts, 80,000 iron tie plates, 300,000 rail gauge blocks, 5 million elastic rail clips and 8 million gauge baffle plates. Our Phase II project is under steady construction. It will build 35,000 square meters of R&D buildings and production workshops. We focus deeply on the rail transit industry and strive to become a professional service provider worldwide.
