Crane Rail Fastening System

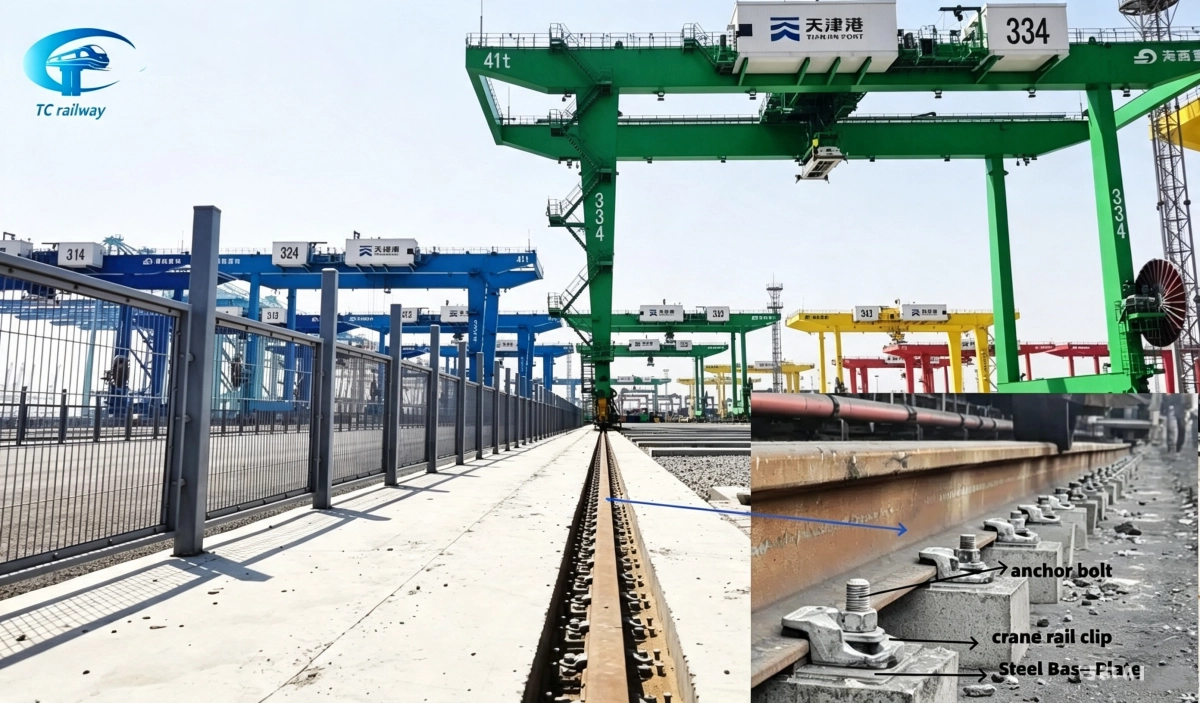

Our crane rail fastening system is a highly-reliable, heavy-duty rail solution for modern industrial facilities. It relies on post-installed chemical anchoring and Belleville disc-spring structures. It can compensate pre-load loss under heavy-duty vibration conditions, prevents bolt loosening, and achieves reliable fixing of crane rails on concrete foundations.

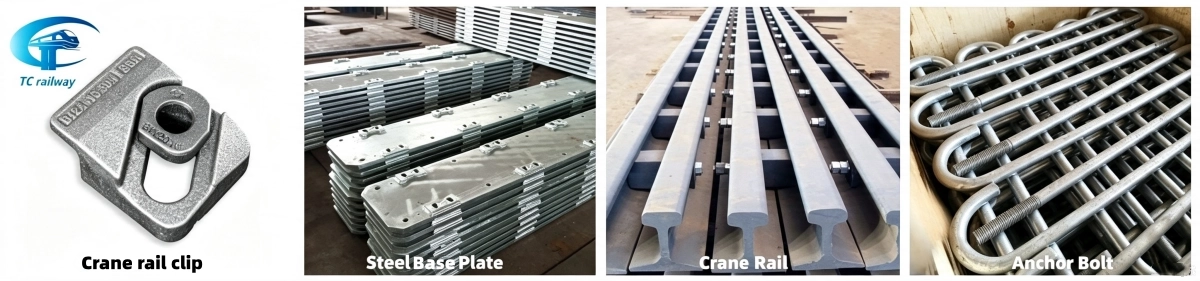

And it is widely used in ports, shipyards, steel mills and large-scale industrial plants. Its performance directly impacts the operational safety, maintenance costs and long-term service reliability of crane equipment. The crane rail fastening system is one of our core products. We can provide complete solutions covering crane rail clips, steel base plates, rubber rail pads, anchor bolts and all other rail fasteners suitable for heavy-duty applications in ports, mines, railways, crane rails, etc. Customization is available for all crane rail fasteners. And these products can be supplied to distributors worldwide.
Core Functions of Our Crane Rail Fastening System
Our crane rail fastening system shall deliver well balanced performance across four core functions:
Vertical restraint:
It prevents rail uplift under dynamic wheel loads
Lateral guidance:
It resists lateral forces exerted by cranes to keep track gauge stable
Longitudinal elasticity:
It enables controlled rail movement for thermal expansion and contraction
Vibration damping:
It mitigates fatigue loads transferred to rails, bolts and supporting structures
Crane Rail Fastening Systems We Supplied

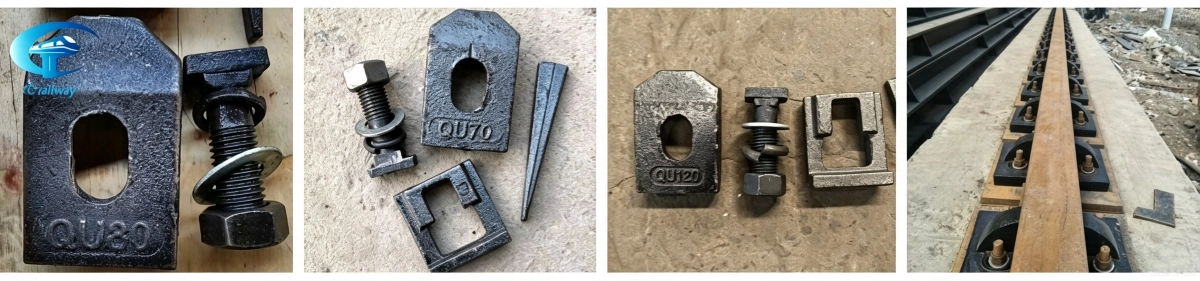

We are a specialist supplier of crane rail fastening systems. We supply complete fastening solutions compatible with QU70, QU80, QU100, QU120 and other crane rail profiles. Please see the drawings below for our designed fastening systems of QU80 and QU100 rails for our clients. Customization is available for all crane rail fasteners. Feel free to contact us.
1. Our QU80 Crane Rail Fastening System
Below is our QU80 crane rail fastening system, designed for the Wuhan Xingang Sanjiang Port Terminal Project. It is purpose‑built for container RTG (rubber‑tyred gantry crane) track applications on concrete yards. It can serve as a replacement for GANTREX MK6-RF-130, delivering equal or superior operational performance. The system consists of clip assemblies, full-length steel-reinforced rubber pads, double-layer levelling plates, M24 U-shaped pre-cast anchor bolts and other high-strength fasteners, etc. It restricts lateral rail movement, permits longitudinal thermal expansion and contraction, and withstands heavy loads and lateral impact.

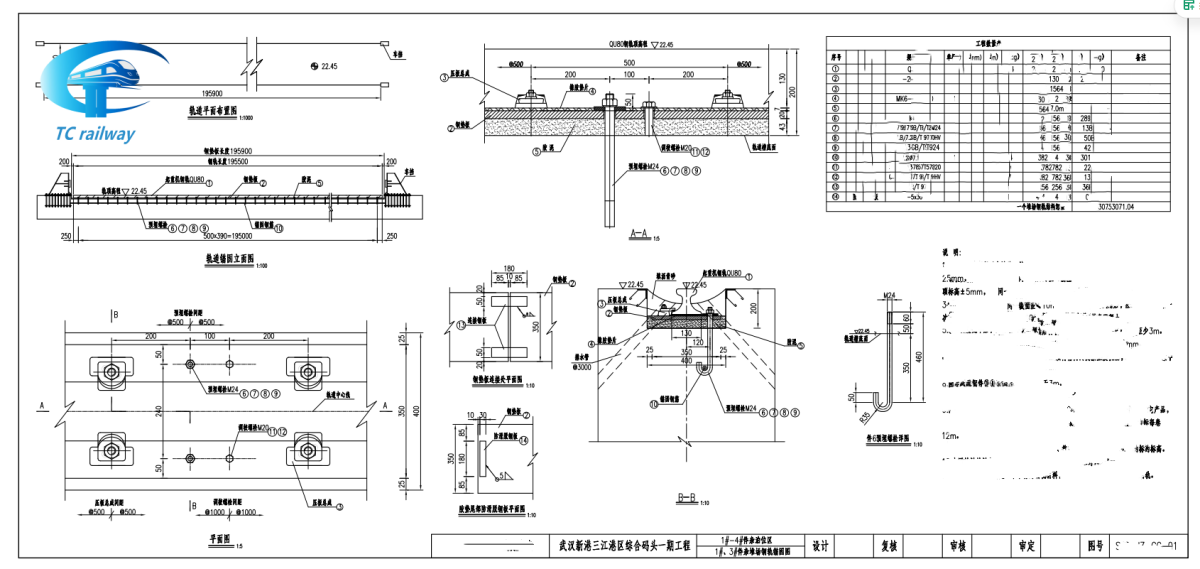

Our QU80 Crane Rail Anchorage Installation Drawing (Wuhan Xingang Sanjiang Port Terminal)
Components of Our QU80 Crane Rail Fastening System
From the drawing above, we can see that the system includes the following key components.
| Item No. | Description | Specification | Material |
|---|---|---|---|
| ① | Rail | QU80 | U71Mn |
| ② | Steel Base Plate | -20×350 | Q235B |
| ③ | Clip Assembly | MK‑RF‑130 | Q235B |
| ④ | Rubber Pad | MK6‑RF‑130 | Styrene‑butadiene rubber |
| ⑥ | Pre‑cast Anchor Bolt | M24 | Q235B |
| ⑦ | Nut | M24, GB/T6171‑2000 | Q235B |
| ⑧ | Flat Washer | 24‑100HV, GB/T 97.2 | Q235B |
| ⑨ | Spring Lock Washer | 24, GB/T 93‑1987 | 65Mn |
| ⑪ | Adjusting Bolt | M20, GB/T5783‑2000 | Q235B |
| ⑫ | Flat Washer | 24‑100HV, GB/T 97.2 | Q235B |
| ⑬ | Connecting Steel Plate | -20×50 | Q235B |
| ⑭ | Anti‑slip Steel Plate | -5×30 | Q235B |
Technical Requirements:
Allowable Rail Installation Tolerances: Rail centre line offset ≤5 mm, track gauge tolerance ±5 mm, rail top elevation tolerance ±5 mm, height difference between two rails on the same cross section ≤10 mm, surface height difference at rail joints ＜1 mm; Tightening torque for clip-assembly bolts: 275 N·m; Fastener Requirement: The components shall match or exceed the performance of GANTREX products; rail base rubber pad MK6 RF 130, 12 m per roll; Steel base plate flatness requirement: ≤1 mm / any 1000 mm length; Minimum cut length of rubber pads: ≥ 3 m.
Installation and Construction Specifications:
All dimensions shown on the drawings are in millimetres, except elevations, which are given in metres; Upon completion of rail installation, commissioning and trial-operation, fasteners shall be retightened. All bolts shall be coated with grease for corrosion protection, and track grooves shall be backfilled with C20 asphalt concrete;
Rails shall be continuously welded. All weld joints shall be positioned no less than 3 m from dock expansion joints; Embedded bolts and adjusting bolts shall be positioned no less than 150 mm away from expansion joints; Before casting C20-grade asphalt concrete, waste engine oil shall be applied onto both sides of the groove, and all fasteners shall be coated with grease for corrosion protection;
The base of the pressure-plate assembly shall be welded to the steel base plate with low-hydrogen electrodes, and this welding operation shall be completed prior to grout pouring; The steel base plate shall be levelled to the design-specified elevation using the adjusting bolts; Drain holes shall be located clear of the pressure-plate assembly, with a longitudinal spacing of 3 m between holes.
2. QU100 Crane Rail Fastening System
Below is our QU100 rail solution designed for the Chongqing Port project, purpose‑built for the service conditions of heavy‑duty gantry cranes at container terminals. Our QU100 complete system features robust, durable construction with established, reliable processes, and has been validated through on-site port applications. We can provide complete solutions covering crane rail clips, steel base plates, rubber rail pads, anchor bolts and all other rail fasteners suitable for heavy-duty applications in ports, mines, railways, crane rails, etc. Customization is available for all crane rail fasteners. Feel free to contact us.

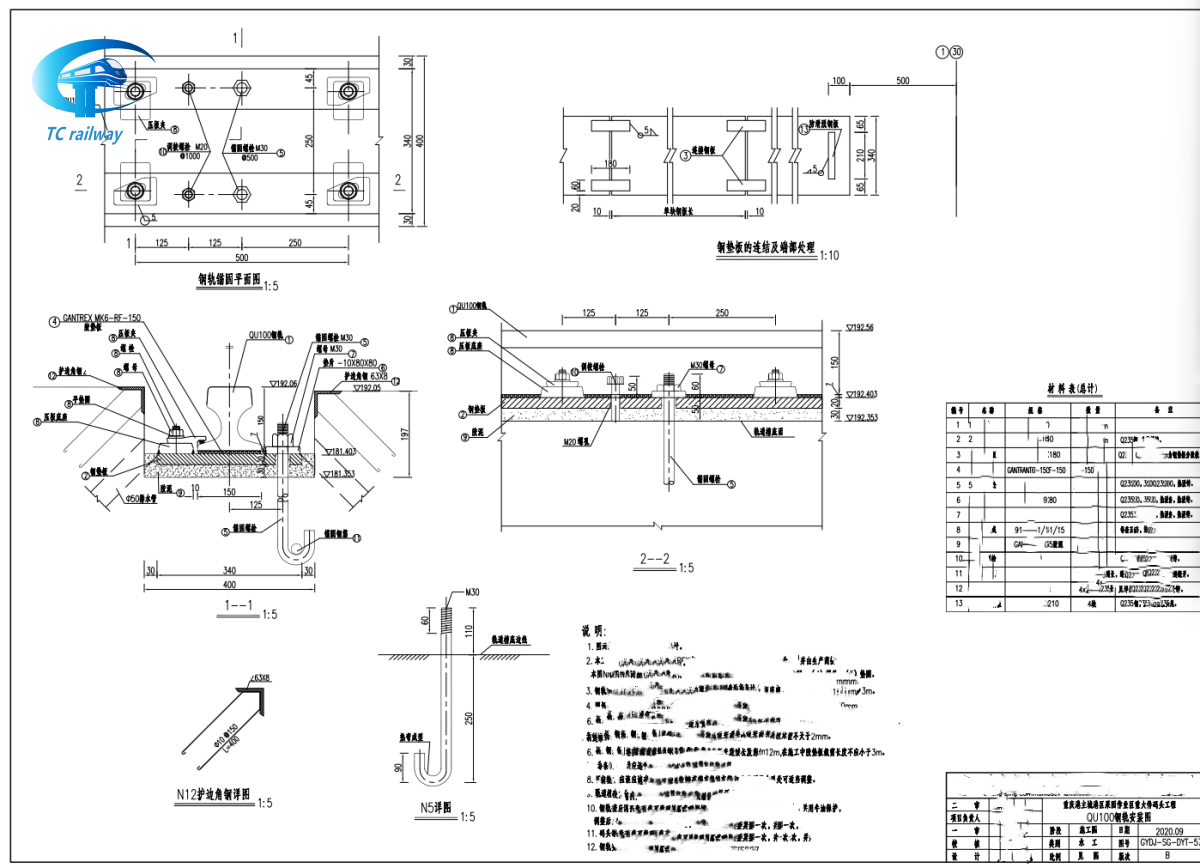

QU100 Dock Crane Rail Anchorage System Assembly & Installation Drawing (Chongqing Port)
Components of QU100 Crane Rail Fastening System
From the drawing above, we can see that the system includes the following key components.
| English Name | Specification | Remarks (English) | |
|---|---|---|---|
| 1 | Rail | QU100 | Crane rail |
| 2 | Steel base plate | -20×340 | Q235 steel, sectional splicing |
| 3 | Connecting steel plate | -20×60×180 | Q235 steel, for base‑plate connection |
| 4 | Rubber pad | GANTREX MK6‑RF‑150 | Crane rail rubber pad |
| 5 | Anchor bolt | M30 | Q235 steel, hot‑dip galvanized |
| 6 | Shim plate | -10×80×80 | Q235 steel, matched with anchor bolt, hot‑dip galvanized |
| 7 | Nut | M30 | Q235 steel, for anchor bolt, hot‑dip galvanized |
| 8 | Clamp assembly | 9120/15/41/15 | Rail fastening clamp set |
| 9 | Sealant mastic | GANTREX 035 | Joint sealing compound |
| 10 | Levelling bolt | M20 | Q235 steel, hot‑dip galvanized |
| 11 | Anchor rebar | Φ25 | Matched for anchor bolt, cut‑to‑length on site |
| 12 | Edge‑protection angle steel | ∠63×8 | Q235 steel, hot‑dip galvanized |
| 13 | Anti‑seepage steel plate | -5×30×210 | Q235 steel, fitted at base‑plate ends |
Note: All quantities shall be calculated based on the actual rail length of your project.
Technical Requirements:
N‑8 clamp kit: 5 components (clamp jaw, clamp base, bolt, nut and washer); Minimum distance between weld joints and terminal expansion joints: ≥ 3 m; Minimum distance of anchor bolts from expansion joints: ≥ 150 mm; Installation tolerance of anchor bolts: ≤ 2 mm; Segment length of steel base plates: 3‑6 m; Nominal supply length of rubber pads: 12 m; Minimum on‑site cut length for rubber pads: ≥ 3 m; Number of earthing points: 2 nos. per wharf segment; Pre‑embedded earthing flat steel dimension: 4 mm × 40 mm
Main Features:
Clamp Assembly: Each N‑8 kit shall consist of complete matching components. Rail Welding: QU100 rails shall be continuously welded. Bolt Installation & Tolerance: Anchor bolts and levelling bolts may be fine‑adjusted at expansion‑joint locations. Openings in steel base plates shall be machined to suit levelling bolts. Steel Base Plates: Steel base plates shall be interrupted at expansion joints. Rubber Pads: Rubber pads shall be interrupted at expansion joints, while rails remain continuous. Reference: This rail fastening system is designed with reference to GANTREX.
Our Crane Rail Fastening Systems Application

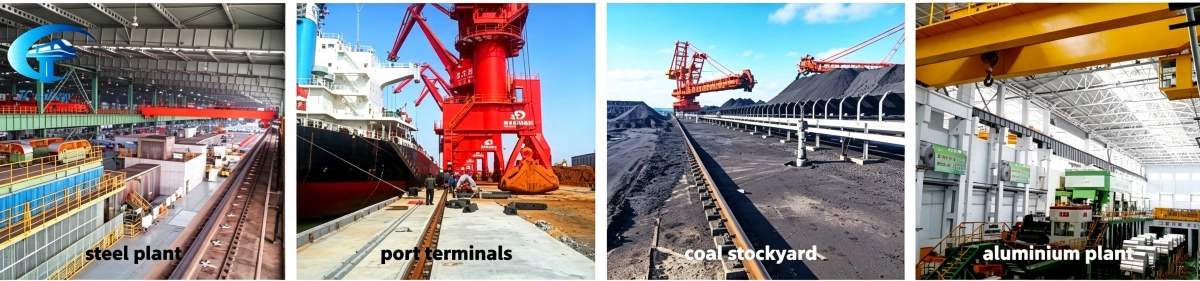

Oour crane rail fastening system are widely applied across numerous sectors, including ports, shipyards, power plants, logistics facilities, railways, crane manufacturers, steel mills, aluminum plants and nuclear power plants. Our fastening systems deliver high stability, long service life and low maintenance requirements. Whether you need standard components or complete integrated rail fastening systems, our team is prepared to provide full‑range technical and supply support for your current and future projects.
Successful Projects of Our Crane Rail Fastening Systems

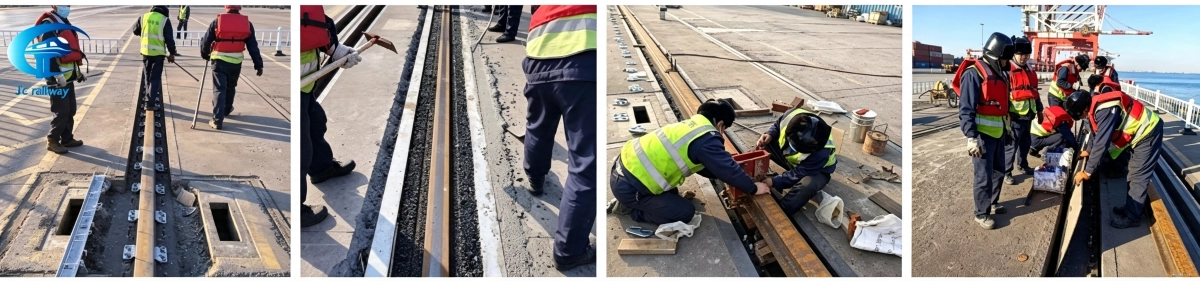

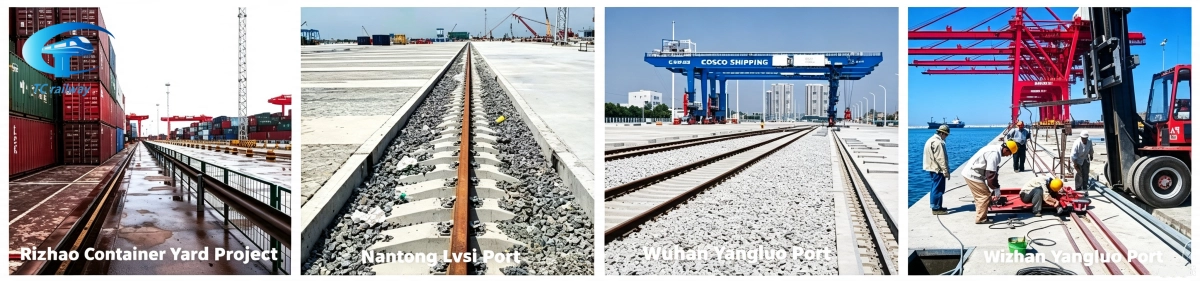

Below are our team has completed professional on‑site installation of crane rail fastening systems for multiple key port projects, including Wuhan Yangluo Port, Nantong Lvsi Port, Rizhao Container Yard and overseas Syrian Container Terminal, etc. And have also been successfully implemented in projects such as Tangshan Port, Ningbo Port and Shanghai Port. Customization is available for all crane rail fasteners. Feel free to contact us.

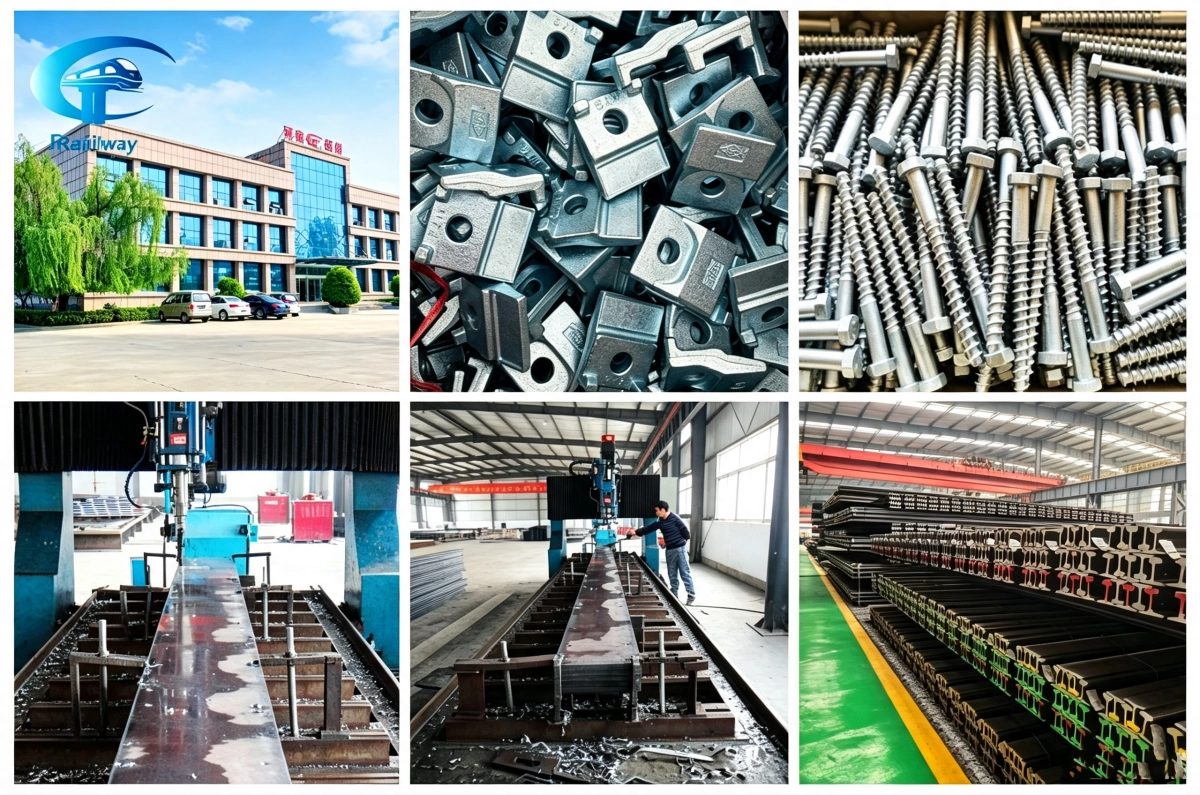

Professional manufacturer of crane rail fastening systems
We are a professional manufacturer specializing in the design, installation, maintenance and technical services of crane rail fastening systems, our crane rail fastening system are widely applied across numerous sectors, including ports, shipyards, power plants, logistics facilities, railways, crane manufacturers, steel mills, aluminum plants and nuclear power plants, and have also been successfully applied in projects such as Tangshan Port, Ningbo Port and Shanghai Port, etc. The crane rail fastening system is one of our core products. And We can offer one-stop technical support covering procurement, manufacturing through to on-site installation for your port crane rail project, guaranteeing sustained and reliable rail performance. Do not hesitate to contact us if you have any requirements.
