W14 Rail Fastening System
W14 Rail Fastening System

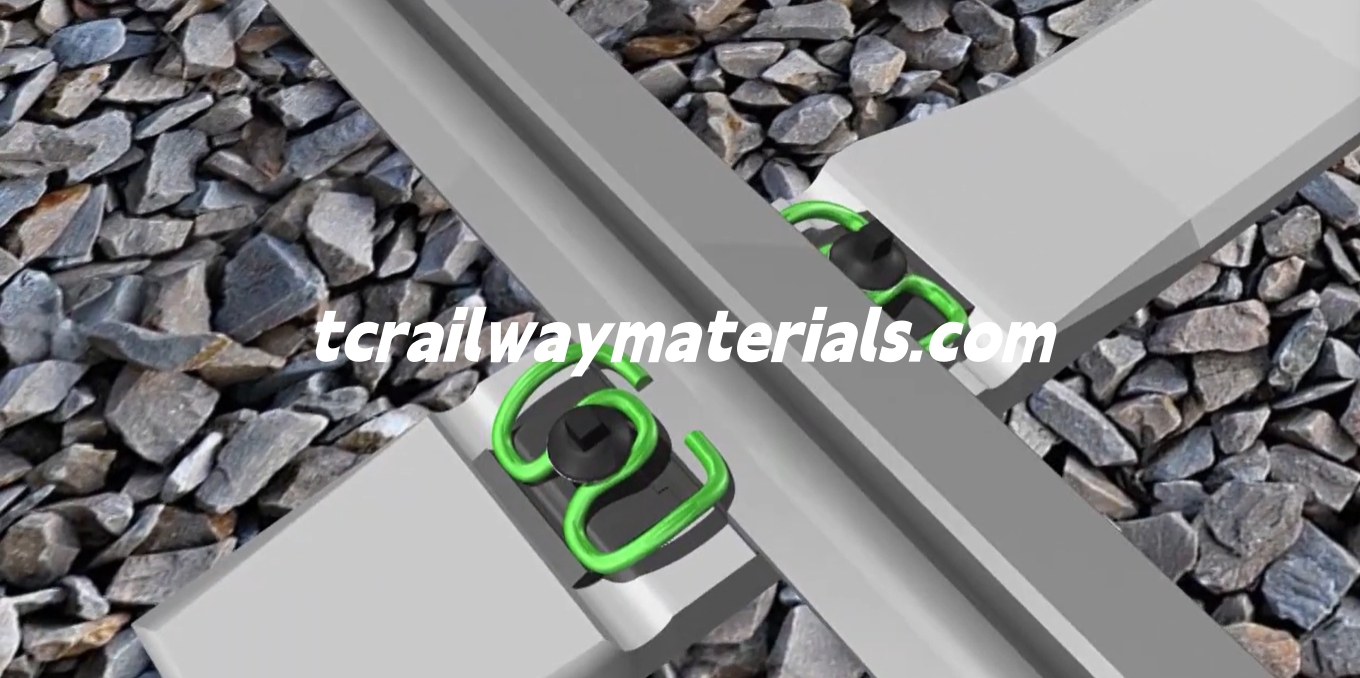

The railway fastening system is a set of fasteners that used to connect the rail and railway sleepers, w14 rail fastening system is one of the most widely used type worldwide. It is very widely used in heavy haul high speed or standard track. Its tension clamp is like w so we also called it a w14 clip fastener system.
We specialize in manufacturing various fasteners for the complete rail fastening systems. And we are one of the major suppliers of rail fasteners for China railway. To be mentioned, we have passed ISO9001 quality management system certification and obtained multiple CRCC certificates. We aim to be a leading specialist in rail fastening solutions. We have other types of rail fastening systems for sale, like WJ-7, WJ-8, III type models, etc. Feel free to contact us for any requirements.

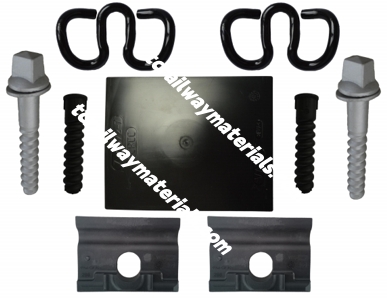

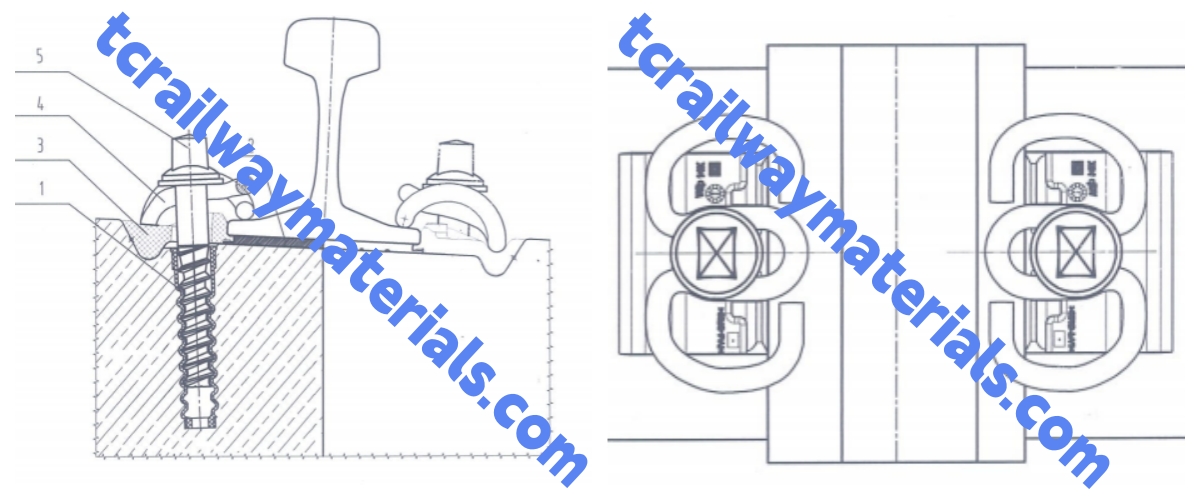

W14 Rail Fastening System Components
No. | Qty. | Name | Components |
1 | 2 | Plastic Dowel | Sdu 25 |
2 | 1 | Rail Pad | ZW138/160/6 |
3 | 2 | Angled Guide Plate | 14k-12 |
4 | 2 | Clip | SKL 14 |
5 | 2 | Screw | Ss35/uls7 |
W14 Rail Fastening System Technical Parameters
Serial No. | Item | Spec. | Material | Unit Weight (kg) | Quantity | Unit | Coating |
1 | Plastic Nylon Screw Dowel (Sdu25) | 31×165mm | PA6 | 0.045 | 4 | Pcs | / |
2 | Rail Pad (Zw692-6) | 199×158×6mm | EVA | 0.162 | 2 | Pcs | / |
3 | Angled Guide Plate (Wfk14K) | Wfp-14k | Reinforced PA66 | 0.166 | 4 | Pcs | / |
4 | Tension Clamp (SKL-14) | SKL-14 | 60Si2Mn, 60Si2Cr, 38Si7 | 0.52 | 4 | Pcs | Electrostatic painting, Darcoet, Hot-dip galvanizing, Sherardizing |
5 | Sleeper Screw with Plate Washer (Ss35) | Screw: 24×161, Washer:25×25×3.5 | Screw: 35# (Class 5.6), Plate/Washer: Q235 | 0.65 | 4 | Pcs | Darcoet, Hot-dip galvanizing, Sherardizing |
W14 Rail Fastening System Components Drawings

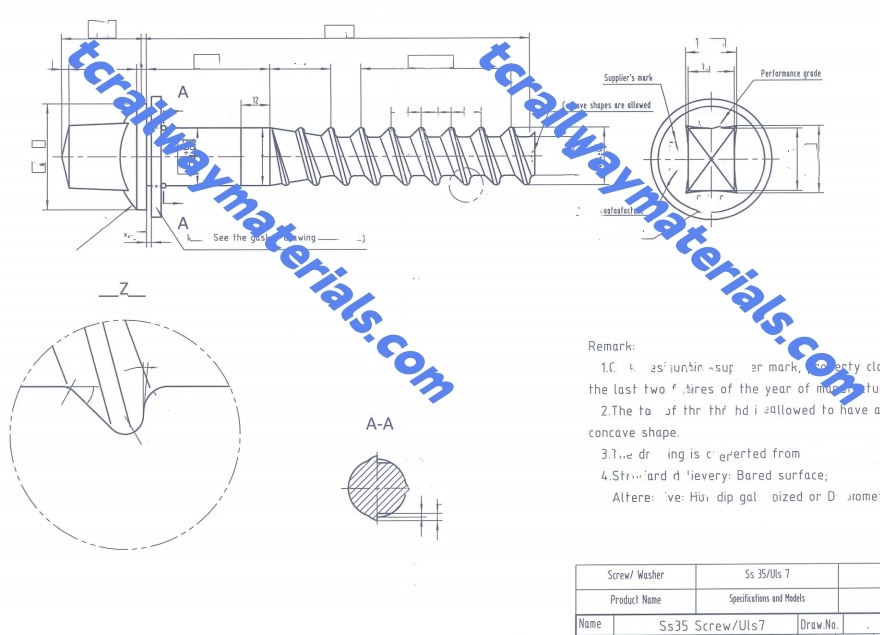

1. Ss35 Sleeper Screw with Plate Washer

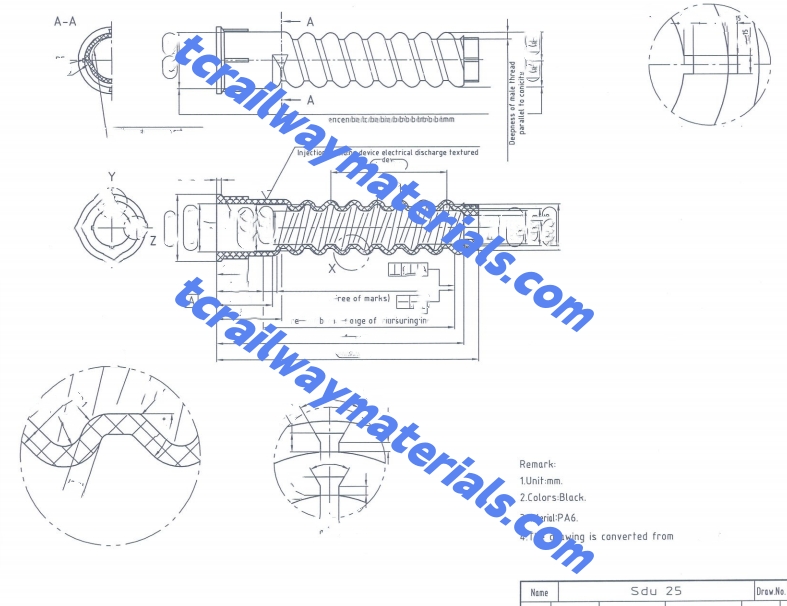

2. Sdu 25 Plastic Dowels

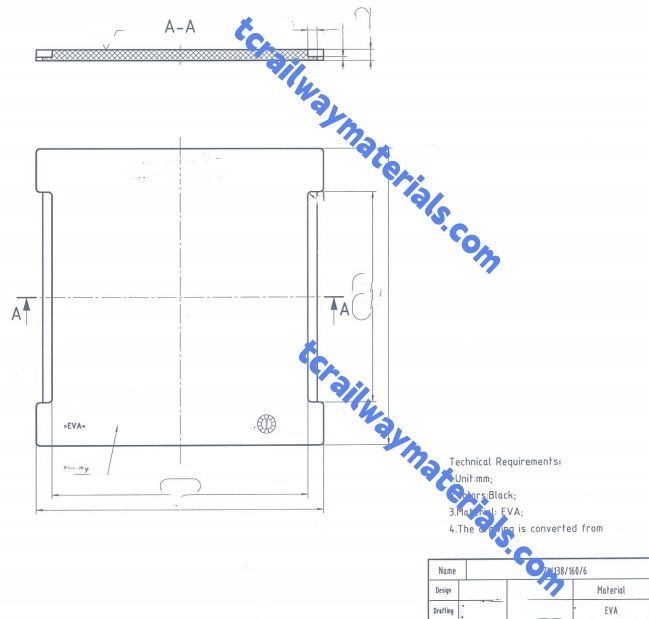

3. Rail pad
W14 rail fastening system application
The W14 rail fastening system that we offered has many advantages, such as reliable performance, easy installation and maintenance and high cost efficiency. It fits all kinds of track conditions, so it is one of the most widely used systems on conventional, high-speed and heavy-haul railways. We are one of the most dedicated and experienced railway fasteners manufacturers in China. We can offer one stop service for your railway new project and maintenance projects. Feel free to contact us.

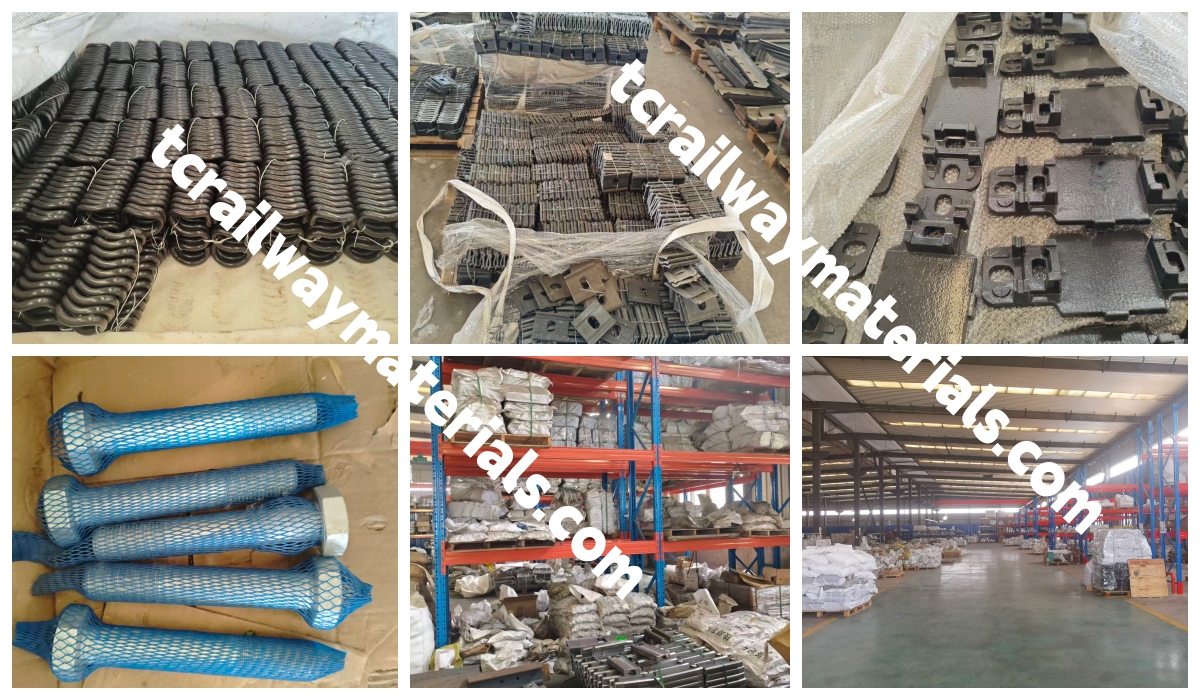

Our factory
We are an professional and experienced manufacturer of railway products. We have been manufacturing railway products for 10 years. Our factory occupies 80 acres, equipped with modern production equipment and mature technology, with an annual output of 20 million pieces. We sincerely welcome customers from all over the world to visit and inspect our factory. We can produce various railway products, including Rail fasteners: rail clips, rail fish plate, Frozen joint bar, Glued joint bar, Rail brace, Gauge rods; Railway turnouts and parts: rail base plates, slide plates, spacer blocks, Machined Turnout Parts, Complete Turnout. We also supply rail milling trains and railway maintenance tools. We can also customize railway products as your needs. Feel free to contact us anytime.
