Type WJ-8 Rail Fastening System
The WJ-8 ballastless track fastener system is developed to suit high-speed railway tracks with shoulders and fulfill relevant technical requirements for passenger dedicated lines. It offers high elasticity, excellent stability, adjustable track gauge, good insulation, long service life. It applies to high-speed railways operating at 250 km/h and above, combined passenger and freight lines, bridge sections and full tunnel structures. It copes well with harsh climates featuring wide temperature variations and high humidity. Therefore, it has been widely used on China's double-track high-speed railways spanning 50,000 kilometers, maintaining consistently stable and reliable performance.
Type WJ-8 Rail Fastening System Components

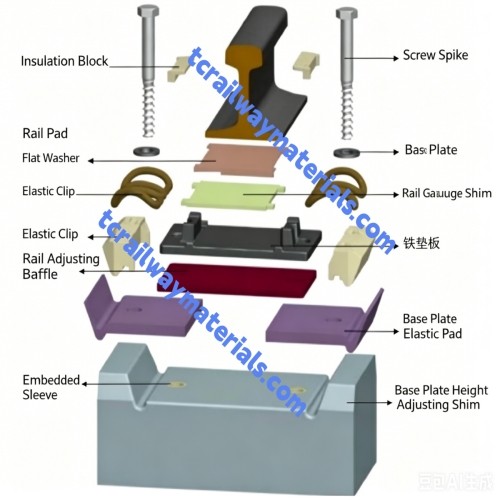

The WJ-8 fastener system that we offer consists of screw spikes, flat washers, elastic clips, insulation blocks, rail gauge baffles, rail pads, base plates, elastic pads under base plates and embedded sleeves. To adjust rail height, it also includes rail adjusting shims and base plate height-adjusting shims.
Type WJ-8 Rail Fastening System Components Specification
| No. | Name | Quantity | Material | Mass or Volume | Remarks |
|---|---|---|---|---|---|
| 1 | Screw Spike S2Screw Spike S3 | 2 | High-quality carbon steel or structural steel | 1.50kg1.60kg | Type S2 is generally used; type S3 is used when adjustment height >15mm. |
| 2 | W1 Type Elastic ClipX2 Type Elastic Clip | 2 | 60Si2MnA | 1.44kg1.22kg | Select one according to specific line resistance requirements. |
| 3 | WJ8 Insulation Block | 2 | Glass fiber reinforced polyamide 66 | 79.0cm³73.0cm³ | Type I: for general sections. Type II: for rail joints. |
| 4 | WJ8 Rail Gauge BaffleWJ8 Joint Rail Gauge Baffle | 2 | Glass fiber reinforced polyamide 66 | 718cm³718cm³ | Normally install No.7 rail gauge baffle, select different numbers according to gauge adjustment. Use joint rail gauge baffle at rail joints. |
| 5 | WJ8 Rail PadWJ8 Composite Pad | 1 | RubberRubber with stainless steel plate | 140cm³110cm³ / 0.25kg | Select one according to specific line resistance requirements. |
| 6 | WJ8 Base Plate | 1 | QT450-10 | 6.80kg | |
| 7 | WJ8-B Elastic Pad under Base Plate | 1 | Elastic material | 540cm³ | |
| 8 | Embedded Sleeve D1 | 2 | Glass fiber reinforced polyamide 66 | 115cm³ | |
| 9 | Flat Washer | 2 | Q235-A | 0.138kg | |
| 10 | WJ8 Rail Adjusting Shim | Polyethylene | 25cm³/mm | Select according to specific height adjustment. | |
| 11 | WJ8 Base Plate Height-Adjusting Shim | Polyethylene | 720cm³/10mm | Select according to specific height adjustment. |
Type WJ-8 Rail Fastening System Technical Parameters
Below are the WJ-8 Fastening System technical requirements, compliant with National Railway Administration standard TB/T 3395.5-2015. As a professional railway equipment manufacturer, we strictly test our products in line with this standard, to ensure every core performance of our products meets all official requirements.
| No. | Performance Item | Technical Requirements |
|---|---|---|
| 1 | Rail Longitudinal Resistance | Standard Configuration (Type W1 Elastic Clip + Rubber Base Plate): ≥9 kN; Low-resistance Configuration (Type X2 Elastic Clip + Composite Base Plate): 4.0 kN±1.0 kN |
| 2 | Assembly Clamping Force | Standard Configuration (Type W1 Elastic Clip): ≥18 kN; Low-resistance Configuration (Type X2 Elastic Clip): ≥6 kN |
| 3 | Assembly Fatigue Performance | Under standard assembly state / rail height adjusted by 26 mm state: after 3×10⁶ load cycles, all parts and components are free from damage, and rail gauge expansion ≤6 mm; Under standard state: change rate of longitudinal resistance / clamping force ≤20%, change rate of assembly static stiffness ≤25% |
| 4 | Insulation Performance | Insulation resistance ≥5 kΩ |
| 5 | Influence of Harsh Environmental Conditions | After 300-hour salt spray test, the fastening can be smoothly disassembled and installed |
| 6 | Anti-pulling Force of Embedded Parts | Anti-pulling force of embedded sleeve in concrete ≥60 kN; After the test, the sleeve is free from damage, and the surrounding concrete has no visible cracks with the naked eye |

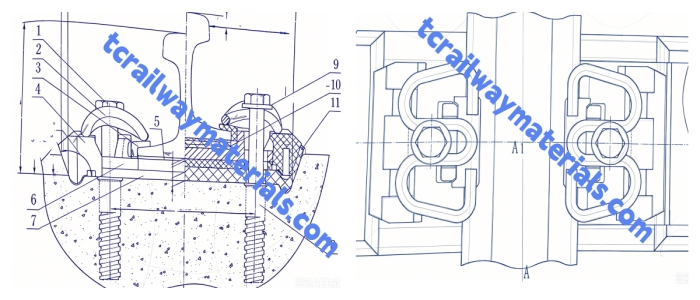

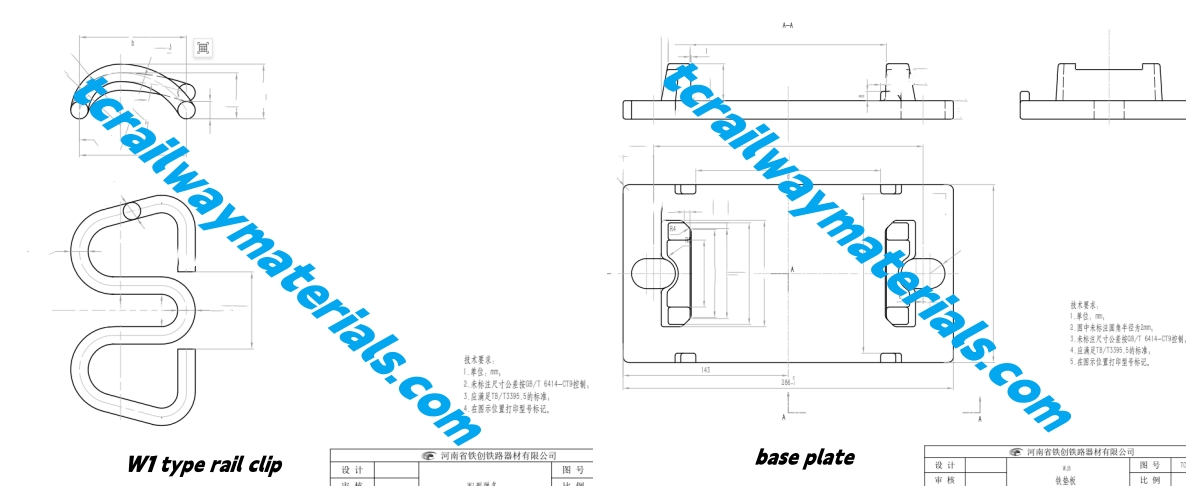

Type WJ-8 Rail Fastening System Components Drawings
WJ-8 Fastening System Elastic Clip Technical Parameters
| No. | Technical Category | Requirement | Executive Standard |
|---|---|---|---|
| 1 | Raw Material Requirements | The elastic clip shall be made of qualified 60Si2MnA or equivalent hot-rolled spring steel, with raw material performance fully meeting the specified standard requirements. | GB/T 1222, TB/T 3395.5-2015 |
| 2 | Type & Dimension Requirements | The clip's type and dimensions shall comply with design specifications; the contact length of the clamping limb straight section shall be ≥6mm, the clamping limb warping angle shall be ≤1.0mm, and no reverse warping of the two limbs is allowed. | TB/T 3395.5-2015 |
| 3 | Appearance Quality Requirements | The surface of the elastic clip shall be free from burrs and scratches that may affect the assembly process. | TB/T 3395.5-2015 |
| 4 | Surface Crack Requirements | The surface of the elastic clip shall be free from any cracks. | TB/T 3395.5-2015 |
| 5 | Hardness Performance Requirements | The hardness of the elastic clip shall be strictly controlled within the range of 42 HRC ~ 47 HRC. | TB/T 3395.5-2015 |
Raw Material Performance Requirements for WJ-8 Elastic Clip
The elastic clip shall be made of qualified 60Si2MnA or equivalent hot-rolled spring steel, with raw material performance fully meeting the specified standard requirements.
| No. | Test Item | Requirement | Executive Standard |
|---|---|---|---|
| 1 | Reduction of Area Z | ≥25% | GB/T 1222 |
| 2 | Room Temperature Impact Absorbed Energy KU₂ | ≥9 J | GB/T 1222 |
| 3 | Macrostructure | No harmful defects such as shrinkage cavity, crack, lamination are allowed; porosity, segregation and other indicators shall be ≤ Grade 1 | GB/T 1222 |
| 4 | Total Decarburized Layer | ≤0.13 mm | GB/T 1222 |
| 5 | Graphitic Carbon | ≤ Grade 1.5 | GB/T 1222 |
| 6 | Non-metallic Inclusions | All types of non-metallic inclusions shall meet the grade limit requirements of the standard | GB/T 1222 |
| 7 | Grain Size | ≥ Grade 7 | GB/T 1222 |
WJ-8 Fastening System Application
We specialize in manufacturing a full range of railway fasteners. The WJ-8 fastening system is suitable for high-speed railways with a design speed of 250 km/h and above, mixed passenger and freight lines, bridge sections and full-length tunnel structures. It delivers reliable performance even under harsh climatic conditions with extreme temperature differences and high humidity.
Professional and Experienced Rail Fasteners Manufacturer
We are a professional manufacturer of railway fastening products. Our product range includes: Rail fasteners: rail clips, rail fish plates, frozen joint bars, glued joint bars, rail braces and gauge rods; Railway turnouts & components: rail base plates, slide plates, spacer blocks and machined turnout parts, as well as complete turnouts. We also provide rail milling vehicles and railway maintenance tools. Customized railway products are available to meet your specific requirements. Please feel free to contact us at any time.
