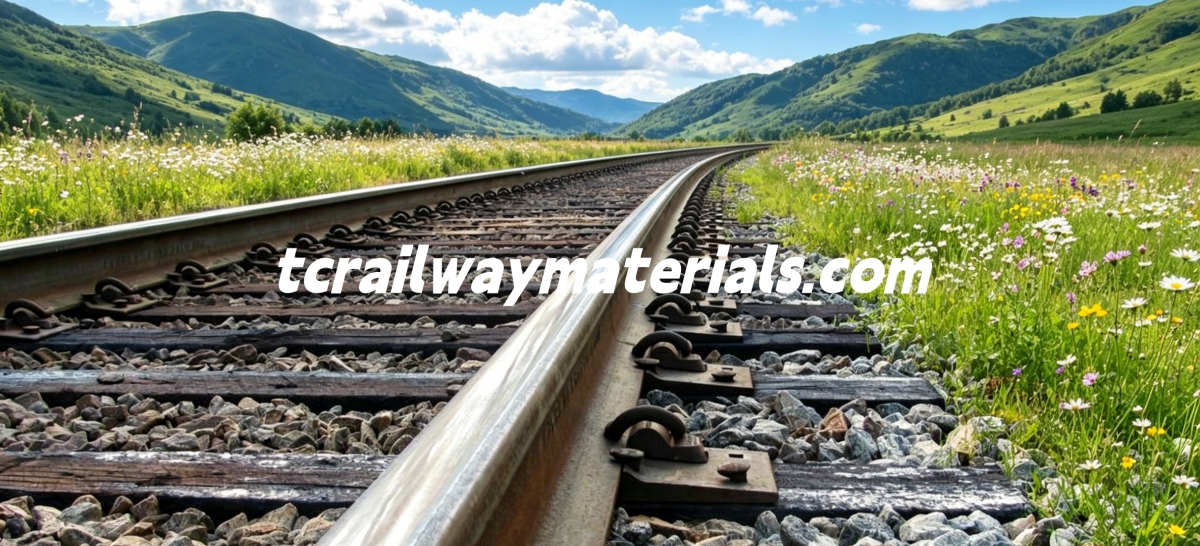

E-Clip Railway Fastening System
E clip rail fastening system
E clip Fastening System is a mature, versatile solution and is widely used across the world. It has the advantages of boltless design, easy installation, stable clamping force and low maintenance. Our e clip system is widely used in heavy-haul railways, mainline railways, urban metros, high-speed lines and ballasted tracks with concrete or wood sleepers.
The E-Clip is one of the most common solutions for fastening rails to their base. It is E-shaped, featuring flexible and firm connections to ensure safe and smooth track operation. We supply various elastic rail clips in different sizes. For separate rail fastening systems, we offer E2001, E2003, E2006, E2007, etc; for non-separate rail fastening systems, we provide E1609, E1806, E1809, etc. We can supply all rail fasteners for types of rail fastening system. Feel free to contact us.
E-clip rail fastening system technical parameters
Item No. | Technical Index | Core Requirement |
1 | Clamping Force of Single E-clip | ≥ 11 kN |
2 | Clamping Force of Single Fastener Set | 20 ~ 25 kN |
3 | Vertical Static Stiffness | 25 ~ 35 kN/mm |
4 | Dynamic-Static Stiffness Ratio | ≤ 1.4 |
5 | Insulation Resistance | ≥ 10^8 Ω |
6 | Pull-out Strength of Embedded Plastic Sleeve | ≥ 80 kN |
7 | Fatigue Test of Fastener Assembly | No damage after 3 million cycles under design load; single-side gauge expansion ≤ 2 mm |
8 | Clip Force Variation Rate | ≤ 20% |
9 | Rail Longitudinal Resistance Variation Rate | ≤ 20% |
10 | Joint Static Stiffness Variation Rate | ≤ 25% |
E-clip railway fastening system types
Our e-clip rail fastening systems are available in various designs. Below are two typical models: E-clip fastening system with steel base plate, "Pandrol" E-clip fastening system.

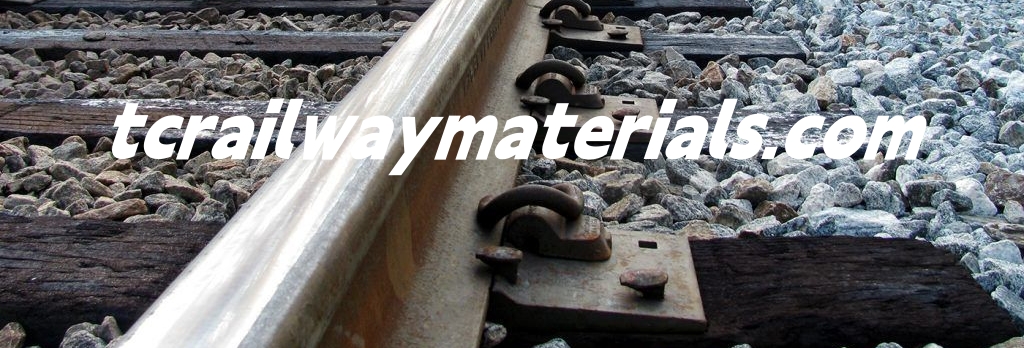

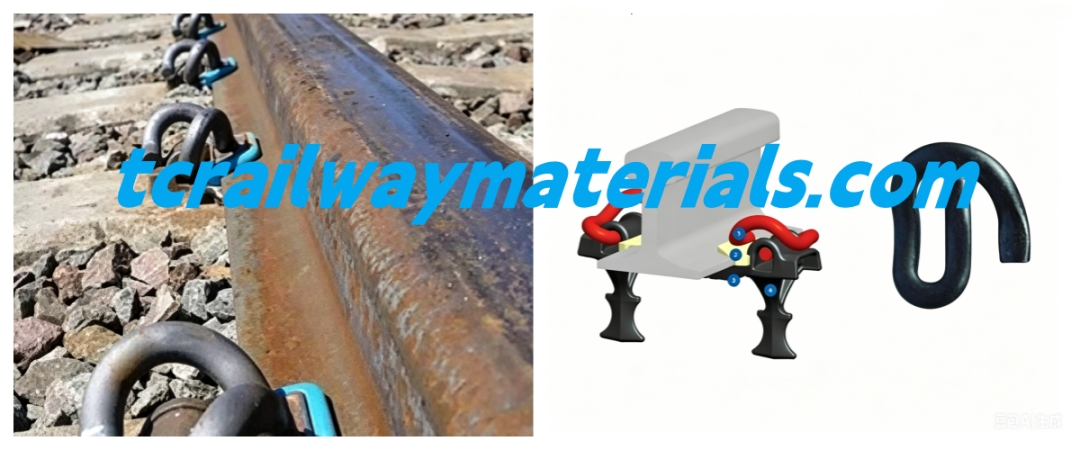

1. "Pandrol" E-clip fastening system
This E-clip fastening system has a simple structure, requires no maintenance, provides excellent lateral resistance and is highly cost-effective. It is ideal for large-scale installation on heavy-haul freight lines and conventional ballasted tracks.
Components:
Item Included | Quantity | Material |
E Clip | 2 pcs | 60Si2MnA, 60Si2CrA |
Shoulder | 2 pcs | QT500-7, QT450-10 |
Rail Pad | 1 pc | HDPE, rubber or EVA |
Insulator | 2 pcs | Reinforced Nylon 66 (PA66) |
Wide application:
This E-clip fastening system is primarily used for:
1. Mixed passenger/freight heavy-haul lines & high-capacity ballasted tracks (speed ≤ 160 km/h)
2. Coal & ore heavy-haul lines, max axle load 25 tons
3. Standard trunk lines with large track maintenance machinery
4. Plain-area tracks with stable beds and no visible settlement
2. The E-clip system with iron base plates
The E-type clip system with iron base plates uses a double-layer elastic design to reduce vibration and noise. It offers smoother train passage, reliable insulation and flexible height and gauge adjustment, and is widely used in metro lines.
The E-clip system with iron base plates components:
No. | Name | Qty | Material | Volume / Mass |
1 | Under-rail Elastic Pad | 1 | Chloroprene Rubber | 251.4 cm³ |
2 | Insulating Gauge Block | 2 | Glass Fiber Reinforced Polyamide 66 (PA66-GF) | 103.9 cm³ |
3 | Type III Rail Clip | 2 | 60Si2Mn Spring Steel | 1.65 kg |
4 | Screw Bolt | 2 | Grade 45 Carbon Steel | 2.34 kg |
5 | Flat Washer 30 | 2 | Q235-A Carbon Steel | 0.10 kg |
6 | Heavy Spring Washer 30 | 2 | 65Mn Spring Steel | 0.18 kg |
7 | Gauge Adjustment Clip | 2 | QT450-10 Ductile Iron | 0.73 kg |
8 | Iron Base Plate | 1 | QT450-10 Ductile Iron | 9.91 kg |
9 | Elastic Pad Under Iron Plate | 1 | TPEE Polyester Elastomer | 645 cm³ |
10 | Plastic Sleeve | 2 | Glass Fiber Reinforced Polyamide 66 (PA66-GF) | 224 cm³ |
11 | Adjustment Shim Under Iron Plate | 1 | High-Density Polyethylene (HDPE) | As Required |
12 | Steel Plate Under Iron Plate | 1 | Q235-A Carbon Steel | 6.07 kg |
Wide application
The E-clip system with iron base plates is primarily used for:
1. Metro, light rail & suburban railway ballastless tracks
2. Tracks with steep slopes and tight curves
3. New ballastless tracks with big construction errors
4. Tracks needing frequent gauge & height adjustment

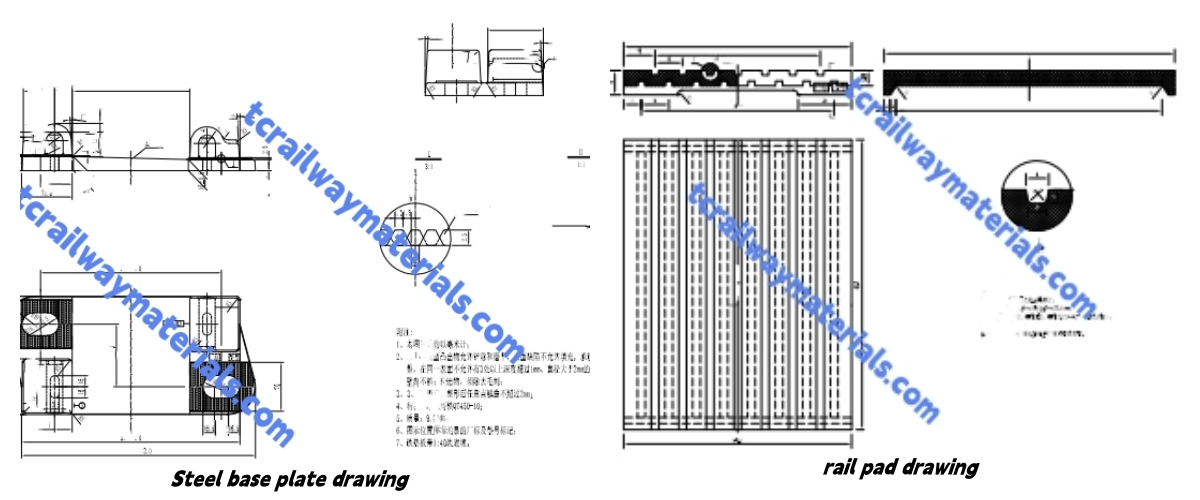

The E-clip system with iron base plates components drawings
1. steel base plate drawing 2. rail pad drawing
We are a professional railway fastener supplier

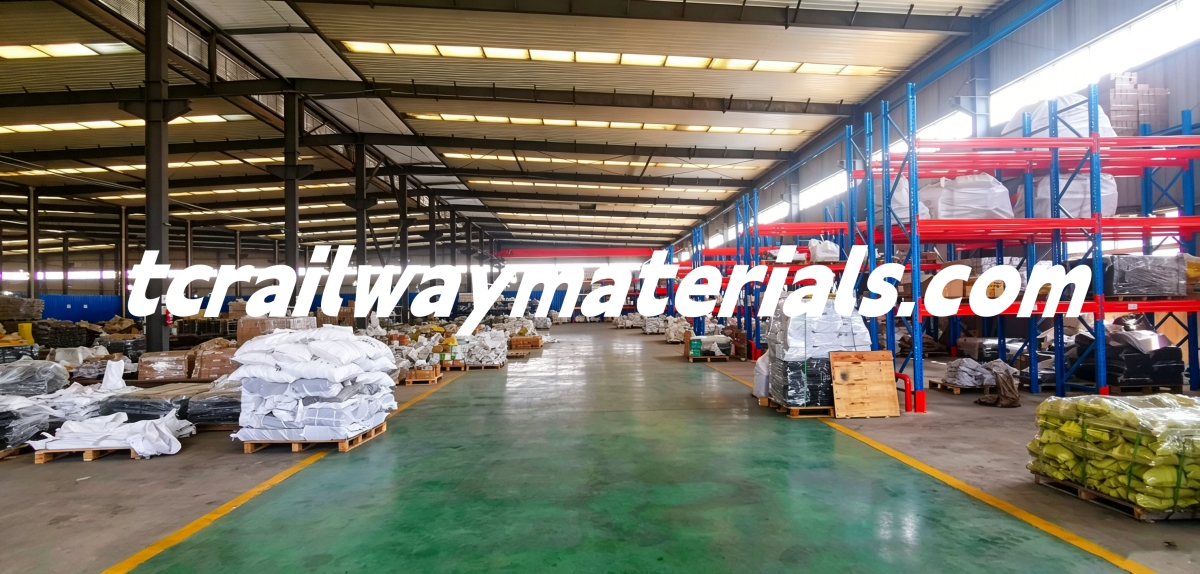

We are an professional and experienced manufacturer of railway products. We have been manufacturing railway products for 10 years. Our factory occupies 80 acres, equipped with modern production equipment and mature technology, with an annual output of 20 million pieces. We sincerely welcome customers from all over the world to visit and inspect our factory. We can produce various railway products, including Rail fasteners: rail clips, rail fish plate, Frozen joint bar, Glued joint bar, Rail brace, Gauge rods; Railway turnouts and parts: rail base plates, slide plates, spacer blocks, machined Turnout Parts, complete turnout. We also supply rail milling trains and railway maintenance tools. We can also customize railway products as your needs. Feel free to contact us anytime.
