SKL Rail Clip

SKL Rail Clip

SKL rail clip is also known as SKL tension clamp. It is a classic elastic fastening component that was developed by Vossloh Germany, and it is widely used in railway projects worldwide. We specialize in manufacturing SKL tension clamps that comply with European standard EN 13481. Our SKL tension clamps are made of premium spring steel 60Si2MnA / 60Si2CrA. They feature excellent anti-fatigue performance, easy installation and maintenance as well as adjustable track gauge. They are widely applicable to high‑speed, conventional, metro and heavy‑haul railway lines.

As a professional manufacturer of railway fasteners, we can supply the full range of SKL-series rail clips, including SKL1, SKL3, SKL12 and SKL14. We can recommend suitable rail‑clip models according to customers’ actual service conditions, especially for Africa and Southeast Asia. We can provide a full range of solutions, enabling customers to strike a balance between cost‑effectiveness and operational stability. Custom solutions can be provided for your specific project requirements. Please do not hesitate to contact us for more details.

Our SKL Rail Clip Material

Our SKL-type rail clips are manufactured from 60Si2Mn, 60Si2Cr or Φ13 mm hot-rolled spring steel of equivalent or higher performance, granting them excellent fatigue resistance, high elastic limit and good hardenability. This enables them to maintain stable clamping force under long-term service conditions, effectively resist repeated alternating loads, and reduce the risk of fracture.

Our SKL Rail Clip Technical Parameter

SKL Rail Clip Types

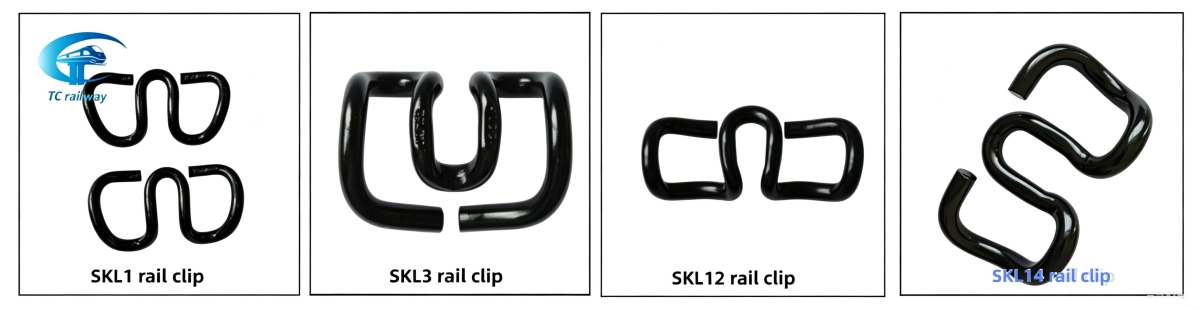

We are an experienced and reliable manufacturer of railway fasteners, supplying the full series of SKL type spring rail clips including core models SKL1, SKL3, SKL12 and SKL14. With our large‑volume production capacity, our SKL‑type spring rail clips feature consistent and stable performance. They have been exported to many countries, such as Kazakhstan, Myanmar, Mexico and Malaysia. Please refer to the product pictures of SKL‑type spring rail clips below for details.

1. SKL1 Rail Clip

We specialize in manufacturing SKL‑1 spring rail clips. Our SKL1 rail clip features moderate clamping force, compact lightweight construction and superior anti‑fatigue performance. And they are suitable for various track types including metro and tram lines. We offer customization to meet your specific requirements. Below are the relevant technical drawings and specifications for your detailed review.

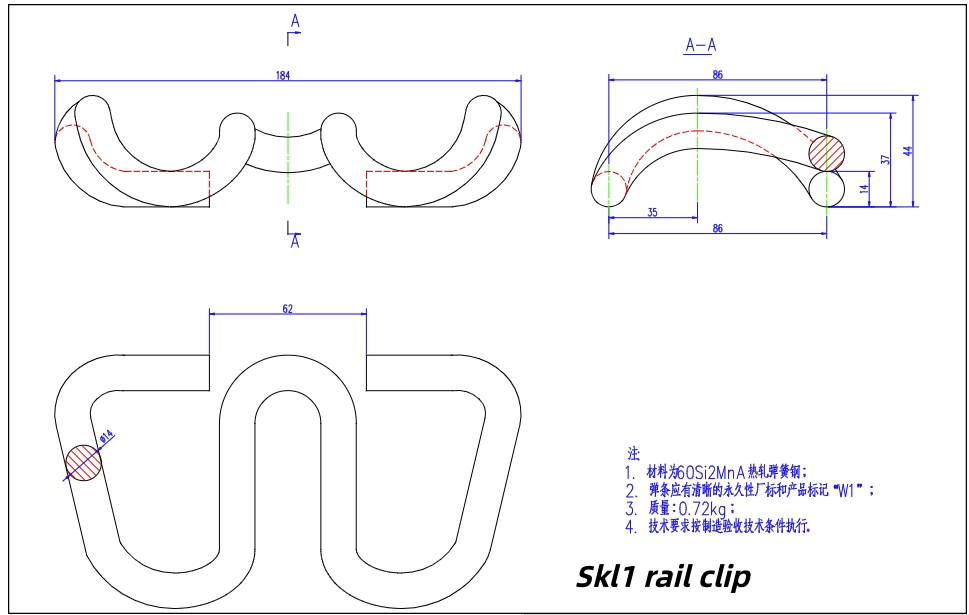

SKL1 Rail Clip Drawing:

SKL1 Technical Specifications:

Material: Hot‑rolled spring steel 60Si2MnA.

The rail clip shall be marked with clear permanent manufacturer’s logo and product mark "SKL1".

Weight: 0.72 kg.

Technical requirements shall be implemented in accordance with manufacturing and acceptance technical specifications.

2. SKL12 Rail Clip

We are dedicated to manufacturing SKL‑12 spring rail clips. They are made of high‑strength spring steel, they deliver balanced and stable clamping force, as well as outstanding anti‑fatigue performance. They are suitable for ballasted main‑line tracks for mixed passenger‑freight traffic, and compatible with 43‑60 kg/m rails. Therefore, they are a mainstream choice for general‑purpose railway projects.

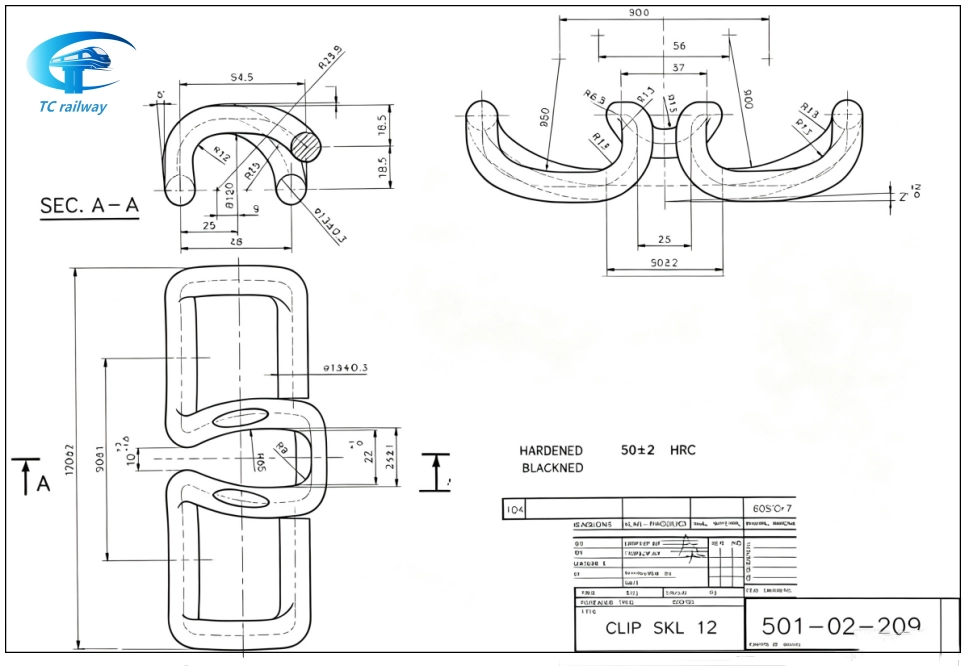

SKL12 Rail Clip Drawing:

SKL12 Rail Clip Technical Specifications:

Material: Hot‑rolled spring steel 38Si7

The rail clip shall be marked with clear permanent manufacturer’s logo and product mark "SKL12".

Weight: 0.53 kg.

Surface Treatment: Plain oiled, Electrostatic spraying, Black Oxide, Darcomet, or as per customer’s requirements

Technical requirements shall be implemented in accordance with manufacturing and acceptance technical specifications.

3. SKL14 Rail Clip

We specialize in manufacturing SKL14 spring rail clips. They feature high impact resistance, excellent anti-rail-turnover performance and superior anti-fatigue properties. They are applicable to heavy-haul freight lines, high-speed lines and small-radius curve sections under complex stress, and they are compatible with 60-75 kg/m heavy rails. Therefore, they are the preferred choice for railway lines for demanding service conditions.

SKL14 Rail Clip Drawing:

SKL14 Rail Clip Technical Specifications:

Material Grade: 60Si2CrA

Hardness: HRC 42‑47

All dimensions shall conform to drawing

Actual decarburized depth: ≤0.30 mm

Fatigue property: clip displacement 9.1 mm, swing 1.42 mm, pass 5‑million‑cycle test

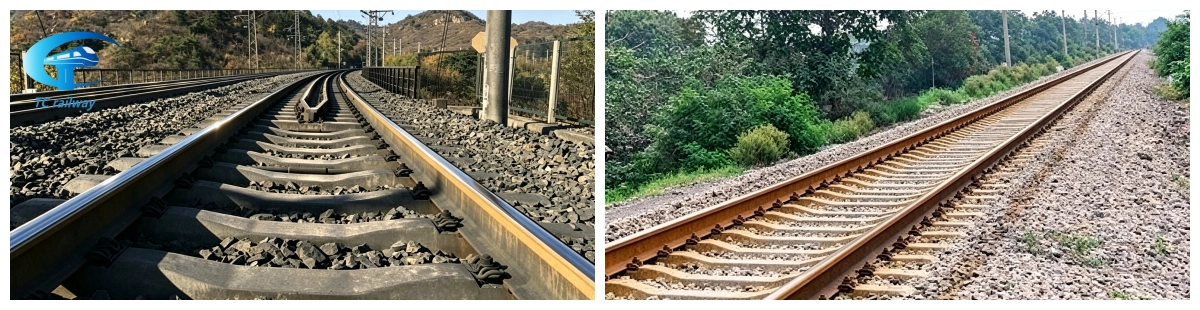

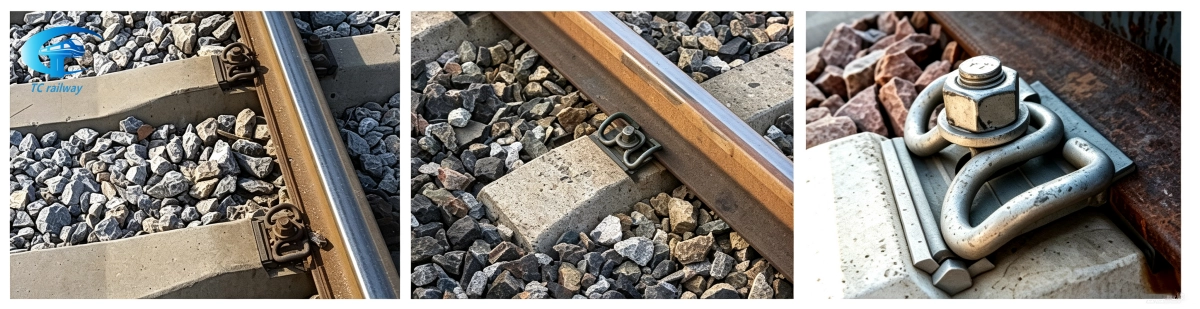

Our SKL Rail Clips Application

Our SKL Rail Clip Quality Inspection

We focus strictly on product quality. Every rail clip goes through complete standard inspections. Below are our SKL1 rail clip sample has completed third‑party quality inspection. The required hardness range is HRC 42‑47. The tested hardness of the sample is 44.9 HRC, which meets the hardness requirement. All dimensions are within standard tolerance. The overall sample test result is Pass. The table below shows main product parameters and sample test results for your reference.

Note: Above are test results of representative sample. Actual data shall be subject to mass‑production inspection report.

Our SKL Rail Clip Overseas Railway Cases

As a dedicated manufacturer of railway elastic rail clips, we have gained wide popularity in international markets with consistent premium quality and favorable pricing. We have successfully delivered E-type rail clips for key railway construction projects across Myanmar and Namibia, DE clips for Ukraine, and SKL14 clips for Kazakhstan Copper Company, etc. Detailed purchasing parameters such as unit price and total quantity for the Yangon Railway Project in Myanmar are presented in the following table. Do not hesitate to get in touch with our team if you have any procurement plans.

Professional and Reliable Manufacturer of SKL Rail Clips

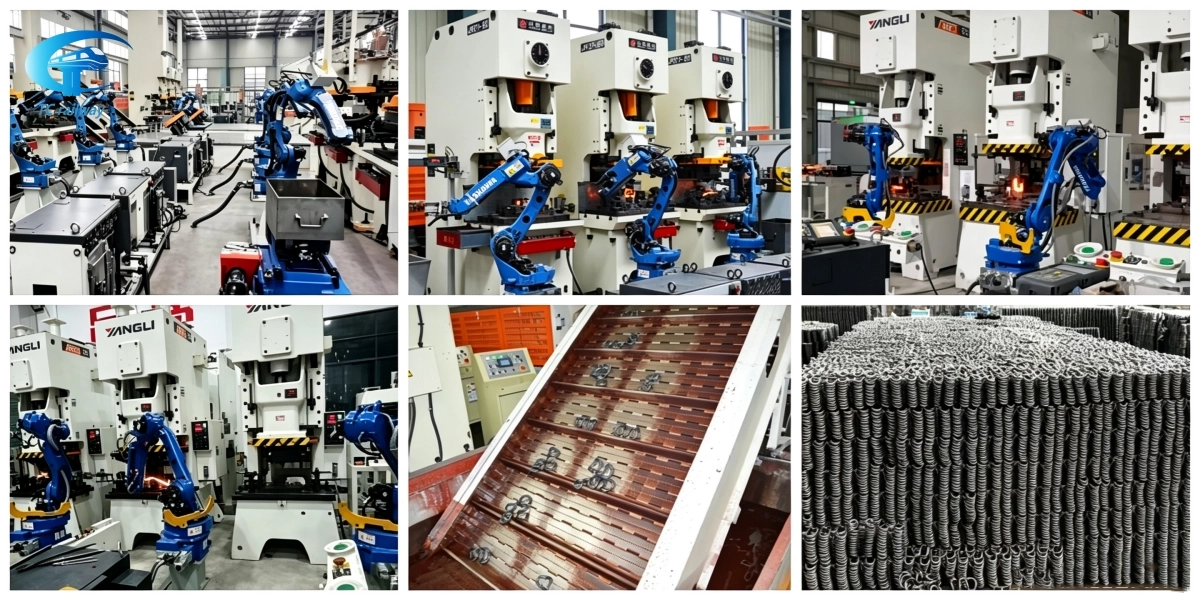

We have multiple automated elastic rail clips production lines, they can produce various spring‑clip models with different interchangeable mold sets. Our daily production capacity reaches up to 30,000 pieces. Therefore, we can supply all the rail clips that you need for the rail fastening system, like E‑type clips, PR clips, SKL rail clips, Fastclip, Deenik clips, Nabla clips, Russian GOST rail clips, Korean rail clips, and custom rail clips made per clients’ drawings and specifications.

We pay close attention to quality inspections throughout production. We test raw‑material performance, verify clip dimensions, and assess finished‑product overall performance. Multiple inspections ensure compliance with strict quality standards and stable performance of all rail clips. Please contact us for your needs.
