E1805 Anti-theft Elastic Rail Clip
E1805 Anti-theft Elastic Rail Clip
We supply high-performance E1805 anti-theft elastic rail clips that are customized E-type fasteners for overseas railway upgrading and improvement projects in Myanmar, Zimbabwe and other countries. And we are a professional manufacturer specializing in the production of premium E1805 anti-theft elastic rail clips for railway fastening systems. We can produce customized rail clips in line with your technical demands or design drawings.

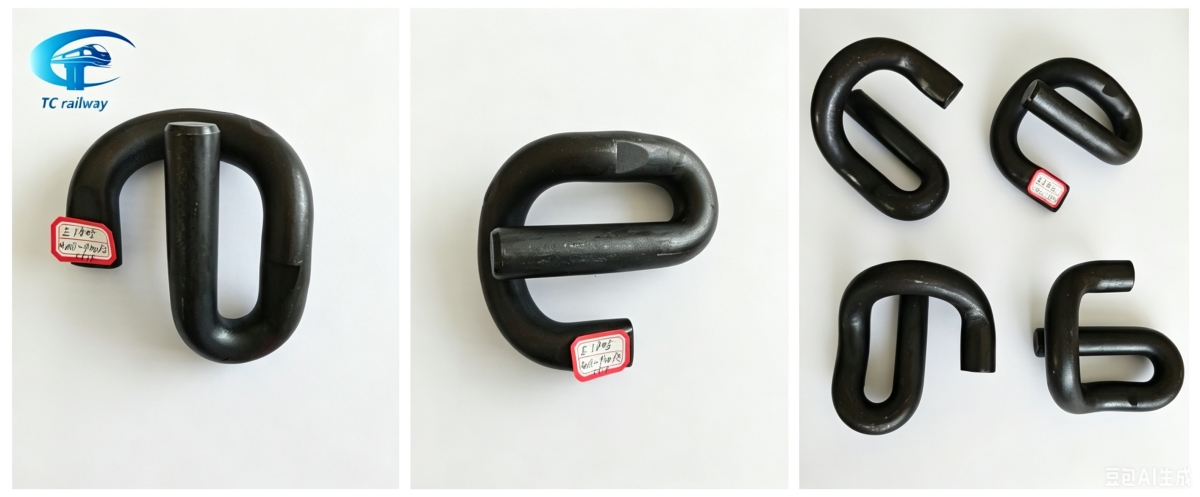

Our E1805 anti-theft elastic rail clips shown below have supplied for the Myanmar Yangon-Mandalay Railway Improvement Project. And All our E1805 elastic rail clips strictly comply with all dimensional tolerances and technical specifications. Please refer to the relevant tender drawings and complete technical specifications shown below. And we can produce customized rail clips in line with your technical demands or design drawings. If you have any needs, please do not hesitate to reach out to us.
E1805 Anti-theft Elastic Rail Clip Specification
Product: E1805 Anti-theft Elastic Rail Clip
Material: 60Si2MnA, 60Si2Cr, 55Si2Mn, 38Si7 spring steel
Hardness: HRC 42–47
Surface: Bare anti-rust oil finish, colored paint coating, or customized per client’s requirements
Quality: 100% brand new and fully compliant with Myanmar Railways technical specifications
Warranty: 12 months from the date the buyer receives the goods
Anti-theft E1805 Elastic Rail Clip Drawing
Geometric Dimensions and Outline Parameters of E1805 Anti-theft Elastic Rail Clip
| No. | Inspection Item | Tolerance Requirement (mm) |
|---|---|---|
| 1 | Elastic deformation of clipping toe | 11±1 |
| 2 | Rear arch dimension | 27.75⁺¹₋₂ |
| 3 | Distance from anti-vandal lip to rear arch end | 55⁺¹·⁵₋₂ |
| 4 | Front arch dimension | 54±4 |
| 5 | Mid-toe length | 90±3 |
| 6 | Side toe length | 61⁺⁴₋₁ |
| 7 | Clip width | 89⁺²·³₋₁·⁵ |
| 8 | Overall clip length | 104⁺³₋₂ |
| 9 | Parallelism of middle toe | ≥ 50 |
Mechanical Properties of E1805 Anti-theft Elastic Rail Clip
| No. | Item | Technical Requirement |
|---|---|---|
| 1 | Hardness | HRC 42–47 |
| 2 | Fastening force (at 11 mm deformation) | 8330N–9310N |
Our E1805 Anti-theft Elastic Rail Clip
Anti-theft E1805 Elastic Rail Clip Inspection and Test Requirements
The table below shows our complete sampling inspection and acceptance criteria specified in the Yangon-Mandalay Railway tender standard, covering sampling quantities, judgment rules and mandatory metallurgical tests, which ensures full compliance with the project’s technical specifications and seamless on-site acceptance inspection.
| Sample Group No. | Serial No. | Checking Item | Allowable Size (mm) | Sample Quantity | Acceptance Limit (Defective Allowed) | Reject Limit |
|---|---|---|---|---|---|---|
| Ⅰ | 1 | Elastic deformation of clipping toe | 11±1 | 32 | 5 (6) | 6 (7) |
| Ⅰ | 2 | Rear arch | 27.75⁺¹₋₂ | 32 | 5 (6) | 6 (7) |
| Ⅰ | 3 | Distance from anti-vandal lip to end of rear arch | 55⁺¹·⁵₋₂ | 32 | 5 (6) | 6 (7) |
| Ⅱ | 4 | Appearance | Refer to drawing description | 32 | 7 (8) | 8 (9) |
| Ⅱ | 5 | Front arch | 54±4 | 32 | 7 (8) | 8 (9) |
| Ⅱ | 6 | Length of mid-toe | 90±3 | 32 | 7 (8) | 8 (9) |
| Ⅱ | 7 | Length of side toe | 61⁺⁴₋₁ | 32 | 7 (8) | 8 (9) |
| Ⅱ | 8 | Width of a clip | 89⁺²·³₋₁·₅ | 32 | 7 (8) | 8 (9) |
| Ⅱ | 9 | Length of a clip | 104⁺³₋₂ | 32 | 7 (8) | 8 (9) |
| Ⅱ | 10 | Parallelism of middle toe | ≥50 | 5 | 0 | 1 |
| Ⅲ | 11 | Hardness | HRC42~47 | 5 | 0 | 1 |
| Ⅳ | 12 | Fastening force (at 11mm deformation) | 8330N~9310N | 5 | 0 | 1 |
| Ⅴ | 13 | Depth of de-carbonized layer | ≤0.3 | 5 | 0 | 1 |
| Ⅴ | 14 | Metallurgical structure | Evenly fine tempered troostite | 5 | 0 | 1 |
Notes: 1. The numbers in the judgement column of the above table represent the total defective samples allowed for each test. Digits in brackets stand for the re-inspection sampling quantity and acceptance limit for secondary testing. 2. In the above table, Items 13 and 14 shall be tested routinely. Extra tests on these two items are needed when adjusting production processes, launching new batches, or using raw materials from a new heat.
Successful Overseas Railway Projects of Our Elastic Rail Clips
As a dedicated manufacturer of railway elastic rail clips, we have gained wide popularity in international markets with consistent premium quality and favorable pricing. We have successfully delivered E-type rail clips for key railway construction projects across Myanmar and Namibia, DE clips for Ukraine, and SKL14 clips for Kazakhstan Copper Company, etc. Detailed purchasing parameters such as unit price and total quantity for the Yangon Railway Project in Myanmar are presented in the following table. Do not hesitate to get in touch with our team if you have any procurement plans.
Anti-theft E1805 Elastic Rail Clips for Yangon-Mandalay Railway Improvement Project
| DESCRIPTION | UNIT PRICE (USD) | Q'TY (PCS) | AMOUNT (USD) |
|---|---|---|---|
| Elastic Rail Clips... | 2 | 1,200,000 | 1,020,000.00 |
| TOTAL AMOUNT | — | 1,200,000 | 1,020,000.00 |
| In Words (Full Amount) | CIF Yangon, United State Dollar One Million Twenty Thousand only. |
We Are A Specialized Elastic Rail Clip Manufacturer
We specialize in manufacturing all types of rail spring clips, and we have multiple automated production lines for elastic rail clips. Meanwhile, we independently develop tailor-made forming dies for elastic rail clips in various specifications. Our daily production capacity reaches 30,000 pieces. Please get in touch with us for all purchasing inquiries.
And we have supplied over 10 million rail spring clips to international clients. Our major overseas projects cover the Laos section of the China-Laos Railway, anti-theft E clips for Myanmar railways, DE clips for Ukraine, and SKL14 clips for Kazakhstan Copper Company. Please feel free to contact us if you have any requirements.
Certification
We are an experienced and reliable manufacturer of railway products, we emphasize quality control, and we have our own professional inspection center and a comprehensive quality management system. Also, our products have passed the ISO9001 quality management system, ISO14001 environmental management system and ISO45001 occupational health and safety management system triple certification, and we have also passed the product certification of China CRCC.
