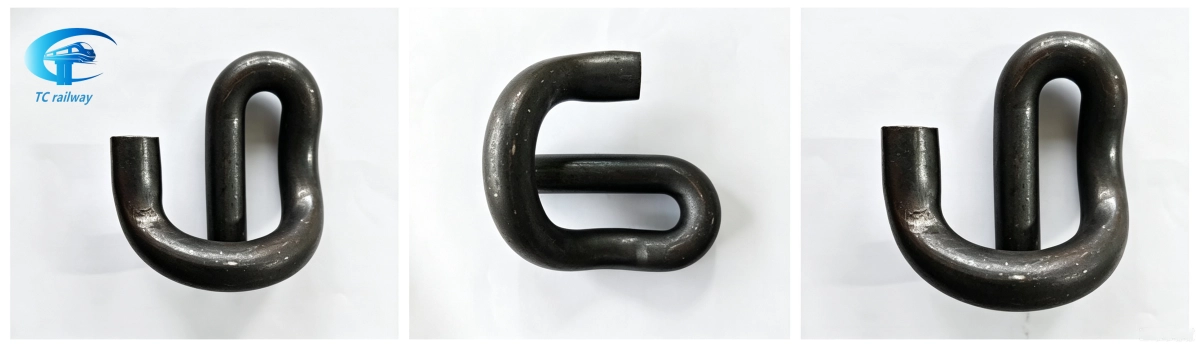

E‑type elastic rail clip is also known as E‑type rail clip and E‑clip. It is a core component of railway and urban track fastening systems, and it has features of high elasticity and easy installation and maintenance. Therefore, it is applied worldwide for nearly all types of track-fastening applications, such as main-line railways, heavy-haul lines and urban metro systems. Although it is small, it has a direct impact on the stability of the whole track structure and train operational safety.
As a professional rail clip manufacturer, we strongly emphasize the quality inspection for our e type rail clip production. We strictly control every rail clip production steps, from raw material selection to heat-treatment processes, thus ensuring the good elasticity and anti-fatigue service life of them. We offer the full range of E type rail clip such as E1809, E2055, E1805 and E2003, etc. Rail clips can be tailor‑made to satisfy your individual project requirements. And we have exported our E type rail clips to many countries around the world. Feel free to contact us.
Our E-Type Rail Clip Material
Our E‑type rail clips are manufactured from 60Si2Mn, or 20 mm hot‑rolled spring steel of equivalent or superior performance, all the raw materials meet relevant specifications. Therefore, our rail clips can deliver excellent elastic recovery, fatigue resistance and deformation‑resistance properties. They can withstand alternating track loads, and effectively reduce track maintenance and replacement costs.
Our E-Type Rail Clip Specification
| Item | E‑type rail clip |
|---|---|
| Chemical Composition | 60Si2MnA: C:0.56‑0.64, Mn:0.60‑0.90, Si:1.50‑2.00, Cr:≤0.35, P:≤0.03, S:≤0.0355Si2Mn: C:0.52‑0.60, Mn:0.60‑0.90, Si:1.50‑2.00, Cr:≤0.35, P:≤0.03, S:≤0.03 |
| Hardness | 44‑48 HRC |
| Fatigue Life | 3‑5 million cycles without breaking |
| Surface Treatment | Plain Oiled, Oxygen Black, Zinc Plated, Hot Dip Galvanized, Dacro coating, Color Painting |
| Standard | UIC, AREMA, BS, RDSO, DIN, JIS, ISCR, VALEC, GOSTR‑EASC, GB/T or other upon requirements |
| Package | Woven Bag, Pallet |
| Delivery | Depends on order quantity |
Our E-Type Rail Clip Technical Parameters
| No. | Clip Name | Model & Specification | Wire Diameter | Clamping Force | Hardness | Application Scenario |
|---|---|---|---|---|---|---|
| 1 | Type‑E Rail Clip | TB, Type‑III | Φ20 | ≥11KN | 44‑48HRC | Heavy‑Haul Freight Lines |
| 2 | Type‑E Anti‑Theft Rail Clip | DI, Anti‑Theft Clip | Φ18 | ≥8.2KN | 42‑47HRC | Passenger & Heavy‑Haul Lines |
| 3 | E2005 Anti‑theft Elastic Rail Clip | Anti‑theft Elastic Rail Clip | Φ20 | ≥11.0 kN | 44‑48HRC | Passenger & Heavy‑Haul Lines |
| 4 | E1813 | E, Elastic Rail Clip | Φ18 | ≥8.5KN | 44‑48HRC | Passenger & Heavy‑Haul Lines |
| 5 | Elastic Rail Clip Mk‑V | Mk‑V, Elastic Rail Clip Mk‑V | Φ20.63 | ≥11.0 kN | 42‑47 HRC | Mainline Passenger & Freight Lines (for 60Kg UIC / 52KG Rail) |

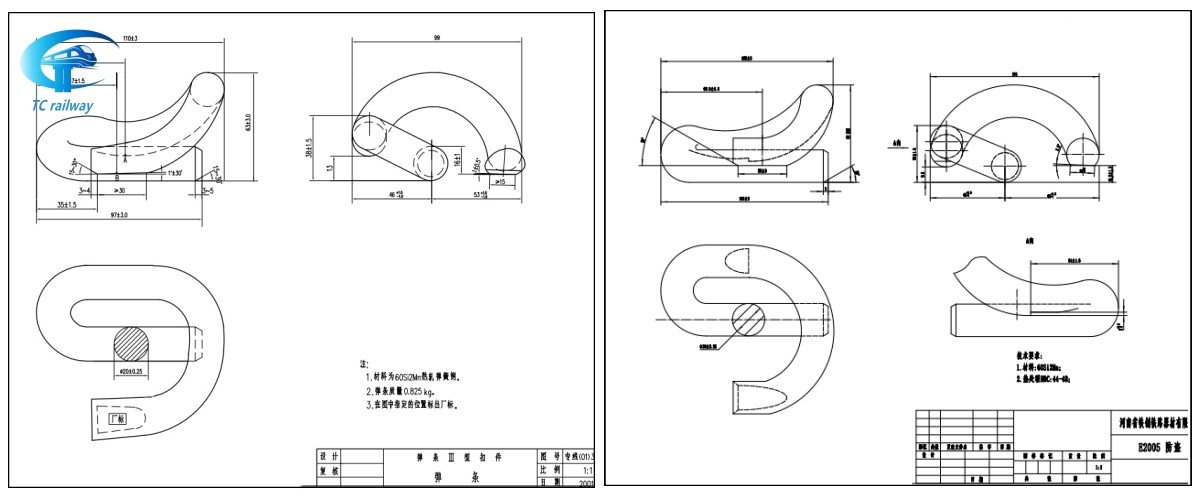

Our E-Type Rail Clip Drawing
Our E-Type Rail Clip Technical Requirements
Appearance and Cracks: The clips shall have no burrs or scratches affecting assembly, and no cracks on the surface.
Hardness: 44-48 HRC.
Metallographic structure: The metallographic structure shall consist of uniform tempered troostite and tempered sorbite, with minor discontinuous ferrite permissible in the core.
Total decarburized layer depth: ≤0.20 mm.
Fastening force: ≥11.0 kN.
Fatigue performance: No fracture after fatigue test, residual deformation ≤1.0 mm.
Anti-rust performance: The clip shall meet dimensional accuracy and performance requirements after anti-rust treatment, and anti rust indexes shall comply with requirements for the service area.

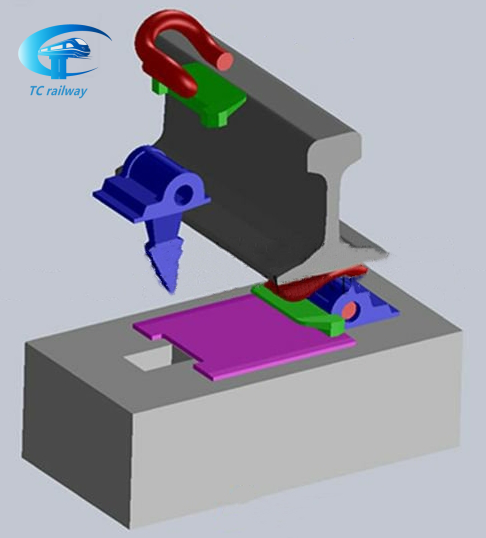

E-Type Rail Clip Fastening System
Our E-Type Rail Clip Quality Inspection
We focus strictly on product quality. Every rail clip goes through complete standard inspections, including size, appearance, hardness, metallographic structure, clamping force, fatigue and anti‑rust performance. This table shows key test data of our E‑Clip rail clips from third‑party laboratory tests. It covers material, size, hardness and anti‑corrosion performance. All test results satisfy the specified technical requirements.
| Item | Unit / Details | Technical Requirement | Test Result | Verdict |
|---|---|---|---|---|
| Product Name | E‑Clip Rail Clip (Intermediate DI Spring Clip) | — | — | — |
| Specification | φ18 mm | — | — | — |
| Material Grade | 60Si2Mn Spring Steel | — | — | — |
| Sample Quantity | 2 pcs | — | — | — |
| Testing Institute | National Quality Inspection & Test Center for Metal Products, Zhonggang Group Zhengzhou Metal Products Research Institute Co., Ltd. | — | — | — |
| Hardness | HRC | 44–48 | 44.4; 44.5 | Pass |
| Anti‑corrosion Performance | / | After 24‑h neutral salt‑spray test, surface protection rating ≥ Grade 5 | No corrosion on both samples; protection rating reaches Grade 10 | Pass |

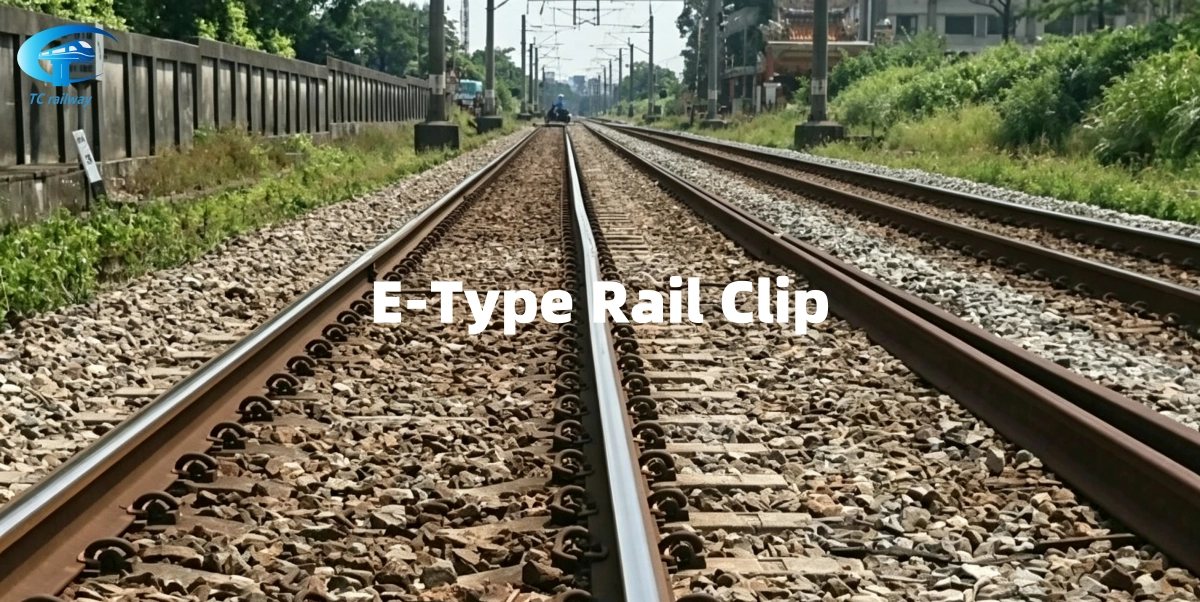

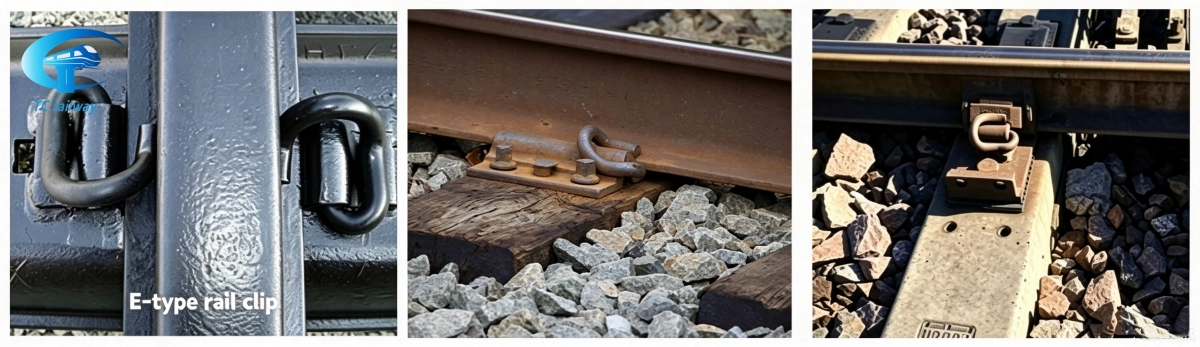

E-Type Rail Clip Application
Our E-Type Rail Clip Overseas Railway Cases
As a dedicated manufacturer of railway elastic rail clips, we have gained wide popularity in international markets with consistent premium quality and favorable pricing. We have successfully delivered E-type rail clips for key railway construction projects across Myanmar and Namibia, DE clips for Ukraine, and SKL14 clips for Kazakhstan Copper Company, etc. Detailed purchasing parameters such as unit price and total quantity for the Yangon Railway Project in Myanmar are presented in the following table. Do not hesitate to get in touch with our team if you have any procurement plans.
Our E-Type Rail Clip Manufacturing Process

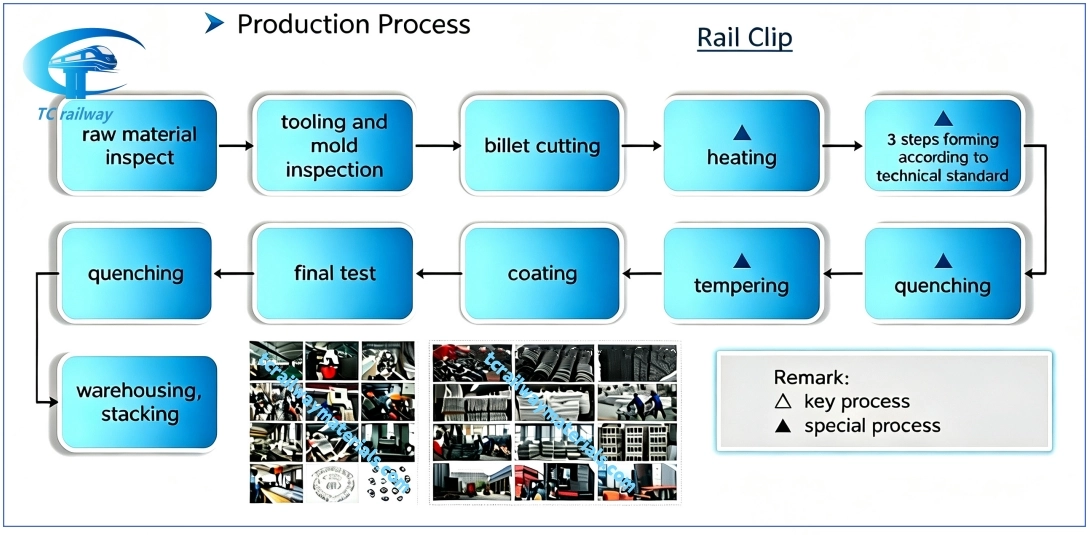

Raw Material Inspection → Shearing → Heating → Forming → Quenching → Tempering → Anti-rust Surface Treatment → Finished Goods Inspection → Packaging & Warehousing
Specialized and Experienced Manufacturer of E‑Type Rail Clips

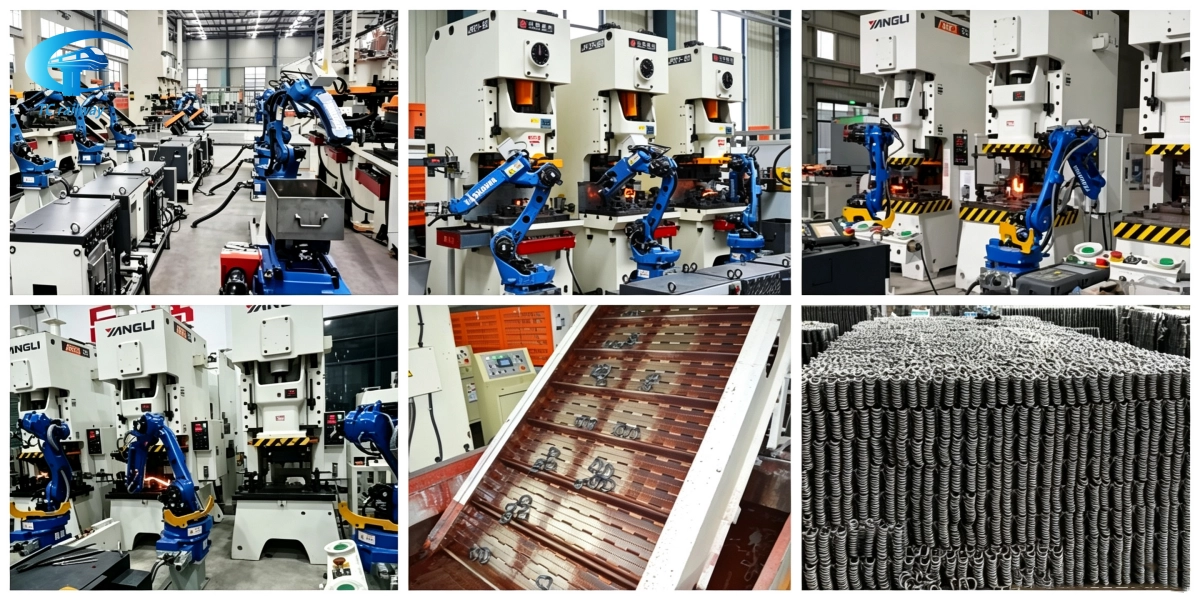

We have multiple automated elastic rail clips production lines, they can produce various spring‑clip models with different interchangeable mold sets. Our daily production capacity reaches up to 30,000 pieces. Therefore, we can supply all the rail clips that you need for the rail fastening system, like E‑type clips, PR clips, SKL rail clips, Fastclip, Deenik clips, Nabla clips, Russian GOST rail clips, Korean rail clips, and custom rail clips made per clients’ drawings and specifications.
We pay close attention to quality inspections at every production step. We fully tests raw material performance before processing, verifies clip dimensions after forming, and tests finished product overall performance after heat treatment and anti-corrosion treatment. Multiple rounds of inspections ensure we comply with strict quality standards, to guarantee stable performance of all rail clips. Please feel free to contact us if you have any requirements.
Certificate

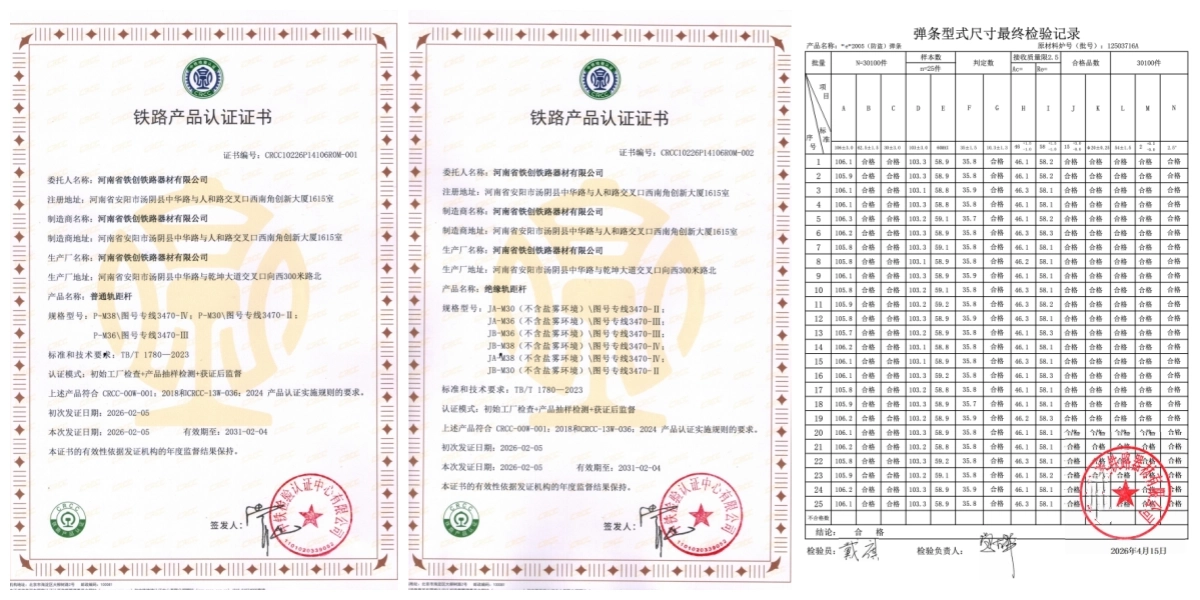

We conduct thorough quality inspection across all production stages for elastic rail clips, with full testing of raw material composition, metallurgical structure, hardness and finished clip geometric dimensions. And all our railway products are approved by official CRCC railway certification. We can provide complete test reports of raw materials and finished geometric dimensions for every batch, so you can fully trust the quality of our rail clips for your railway projects. Please feel free to contact us for further details.
