Introduction
W14 rail fastener system is one of the most widely used type worldwide. And our W14 rail fastener system has been widely used worldwide on heavy‑haul, high‑speed and conventional ballasted railway lines. It has been applied in projects across countries including Kazakhstan and Mexico. Below is the table of main components for our W14 Rail Fastening System. And our W14 rail fastening system offers numerous core competitive benefits. To be mentioned, we have achieved full in‑house manufacturing of all components of the W14 rail fastening system, from raw materials to finished parts. Our annual capacity reaches 20 million pieces, and we can offer outstanding cost‑competitiveness. Please see the details below.
Our W14 Rail Fastening System Components
W14 Rail Fastening System Technical Parameters
| No. | Component | Model | Material | Unit Weight(kg) |
|---|---|---|---|---|
| 1 | Plastic Dowel | Sdu 25(31×165 mm) | PA6 | 0.045 |
| 2 | Rail Pad | ZW692‑6(199×158×6 mm) | EVA | 0.162 |
| 3 | Angled Guide Plate | Wfp‑14k | Reinforced PA66 | 0.166 |
| 4 | Tension Clamp | SKL‑14 | 60Si2Mn / 60Si2Cr / 38Si7 | 0.52 |
| 5 | Sleeper Screw with Washer | Ss35(24×161 mm) | 35# / Q235 | 0.65 |
Core Competitive Benefits of Our W14 Rail Fastening System
Complete Supply of W14 Fastening Components
As a professional railway fastening manufacturer, we can produce all components for the W14 Rail Fastening System, including SKL‑14 tension clamp, rail pad, angled guide plate, sleeper screw with washer and plastic dowel.
Integrated In‑house Manufacturing & Large Production Capacity
We have realized integrated production from raw materials to finished assemblies. Our annual capacity reaches 20 million pieces, and we can offer outstanding cost-competitiveness.
ISO 9001‑Compliant Quality Control System
All our railway products are manufactured in strict compliance with the ISO 9001 quality management system to ensure consistent and reliable product quality performance.
Reliable Lead‑time Commitment for Projects
And we guarantee consistent lead times for your railway projects, whether for your both new‑build construction and emergency‑maintenance assignments.
Wide Compatibility for Varied Track Lines
Our W14 Rail Fastening System features reliable performance, easy installation & maintenance and high cost‑efficiency. It adapts to diverse track conditions, so it is one of the most widely used systems on conventional, high-speed and heavy-haul railways. And our W14 rail fastening system has been applied in overseas projects in Kazakhstan and Mexico. We look forward to cooperating with more overseas clients worldwide.
Comprehensive One-stop Railway Project Solutions

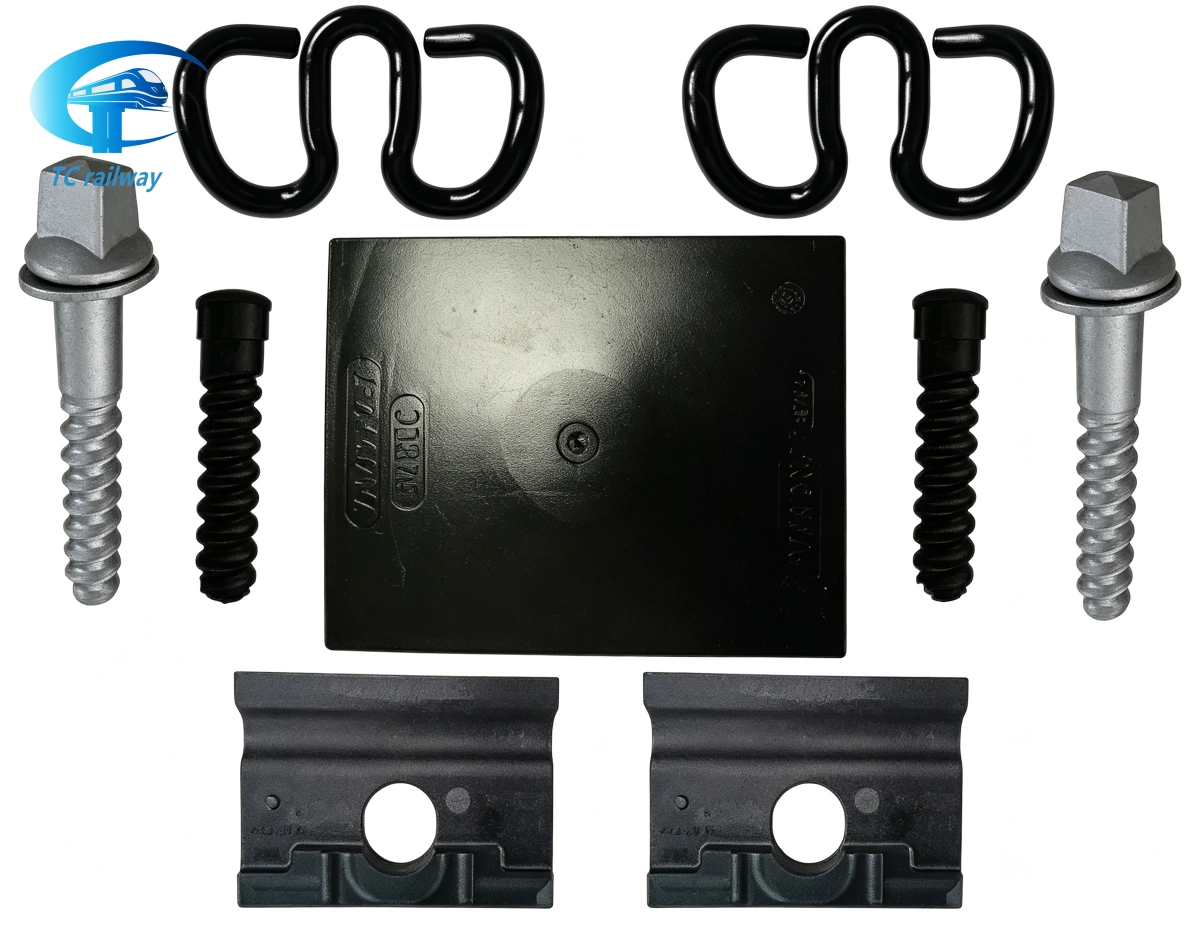

We are one of the most dedicated and experienced railway fasteners manufacturers in China. As shown in the figure below, we can manufacture all components of the W14 rail fastening system: SKL‑14 tension clamp, rail pad, sleeper screw and W14 angled guide plate. We can offer one stop service for your railway new project and maintenance projects. Feel free to contact us.

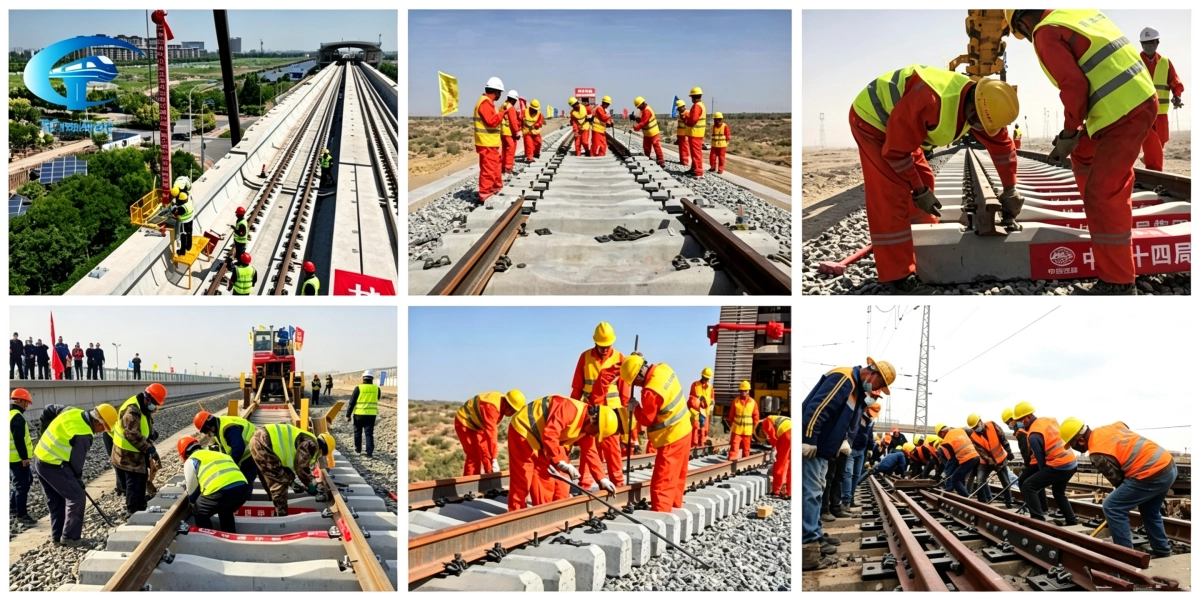

W14 Rail Fastening System: Overseas Application in Kazakhstan and Mexico
The W14 rail fastening system that we offered has many advantages, such as reliable performance, easy installation and maintenance and high cost efficiency. And our W14 rail fastening system has been applied in overseas projects in Kazakhstan and Mexico. They fully complying with local climatic conditions and various ballasted track specifications for new railway lines and track maintenance projects. We are among China’s most professional and experienced manufacturers of railway fasteners. We provide comprehensive one‑stop solutions for both new railway projects and maintenance assignments. We look forward to cooperating with more overseas clients worldwide. Please feel free to contact us for more details.
Why Choose Us

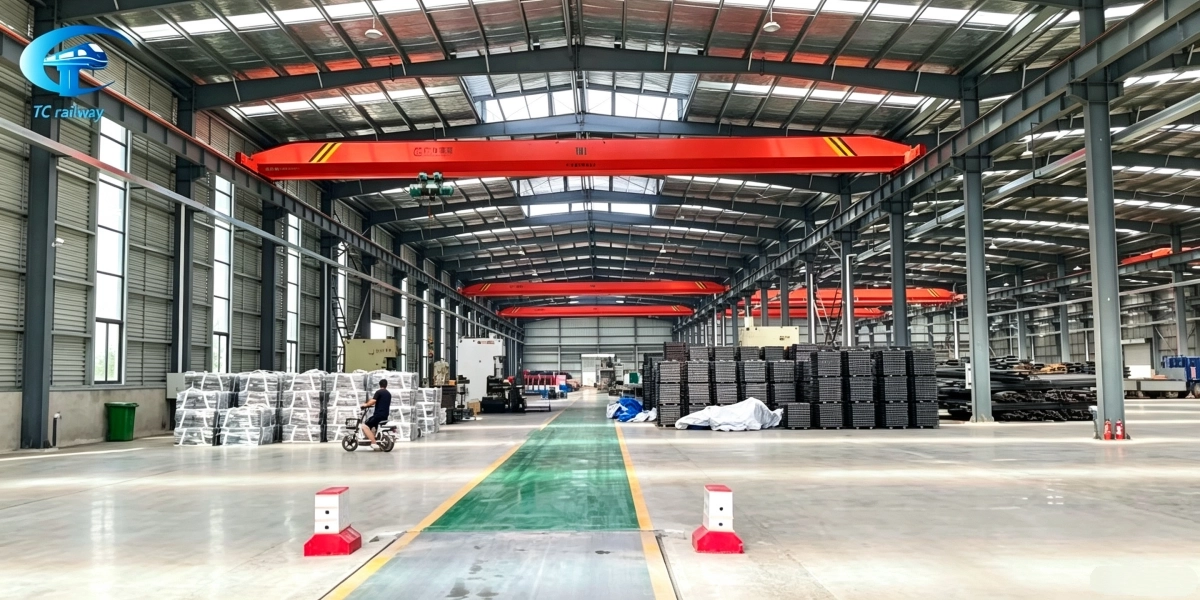

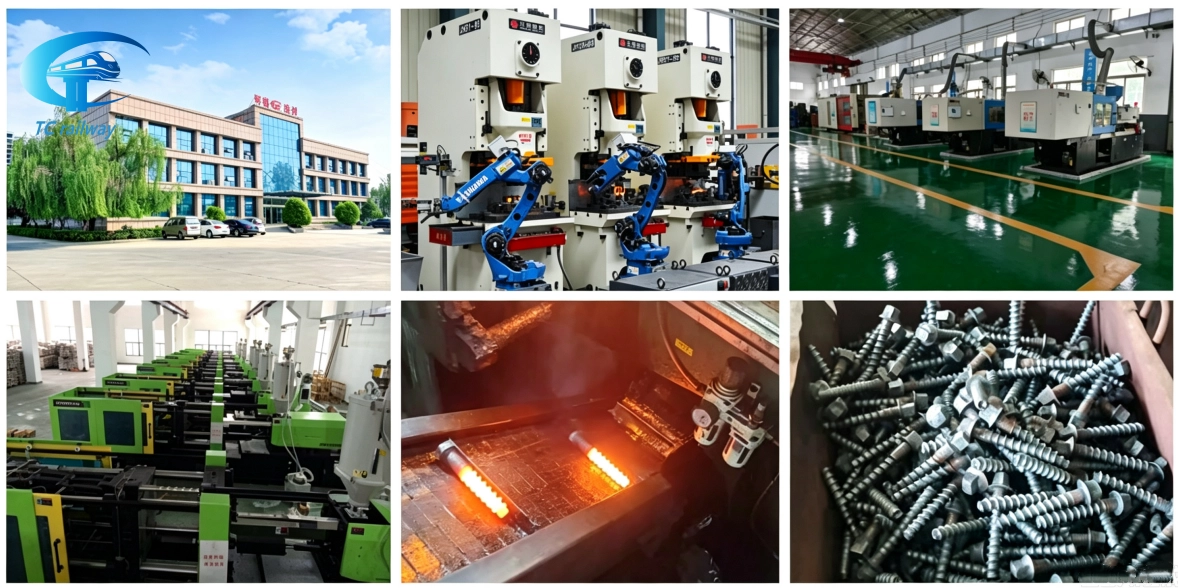

Founded in 2015, Henan Tiechuang Railway Equipment Co., Ltd. is a professional manufacturer specializing in railway fasteners and customized railway system solutions. Our manufacturing facility spans 80 mu (5.33 hectares), with an annual production capacity of 20 million pieces for railway fasteners. We are certified to ISO 9001, ISO 14001 and ISO 45001 management systems, and hold CRCC certification for railway products. And we hold a total of 45 product patents.
Our railway products are sold both domestically and globally. Over the years, we have serviced key national high‑speed and heavy‑haul lines including Daqin and Shuohuang, and supplied customized railway products to customers worldwide. Main product range: Rail Clips, Fish Plates, Frozen/Glued Rail Joints, Rail Turnouts, Railway Maintenance Equipment. To be mentioned, we commissioned a new production line for UIC fish plates in May this year, so we can better supply customers in Europe and global markets.
