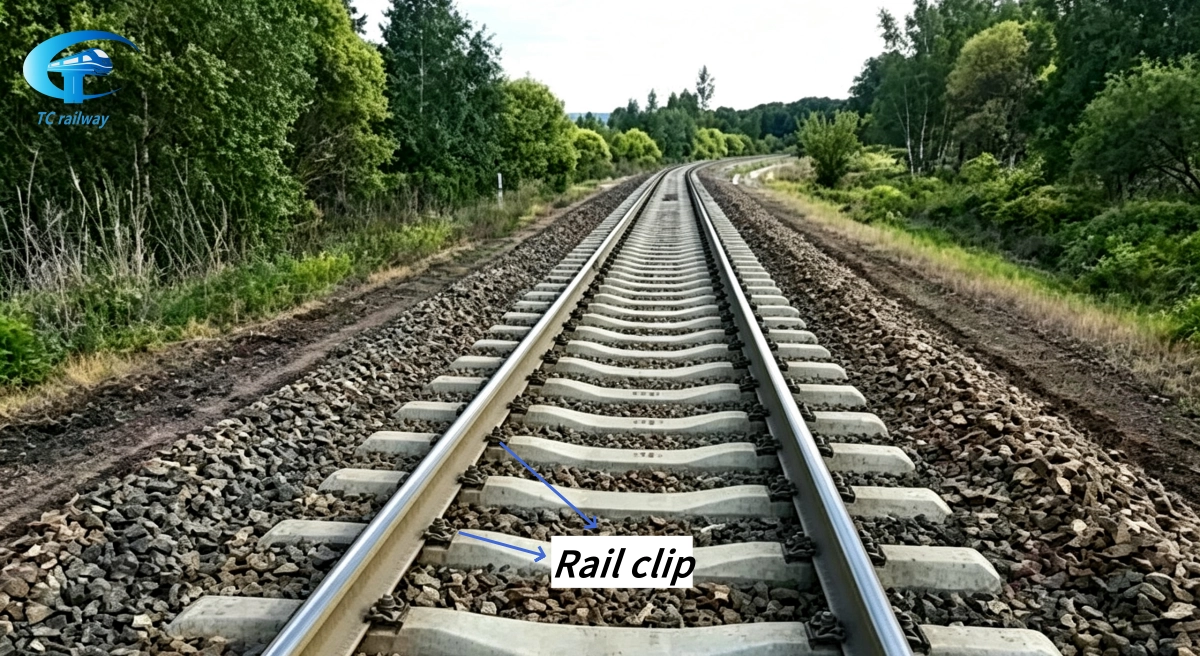

What Is a Rail Clip

The elastic rail clip serves as the core component of the rail fastening system. It delivers stable clamping force through precise elastic deformation to firmly secure the rail onto sleepers or base plates. When trains pass and create impact and vibration, the elastic rail clip bears vertical, lateral and longitudinal forces transferred from the rail. It undergoes combined bending and torsional deformation to maintain restraint upon the rail, and ensure stable track position. Therefore, the elastic rail clip is an indispensable component for the safe operation of railway tracks. As a specialist manufacturer of rail fasteners in China, we supply elastic rail clips in diverse profiles, which comply with a wide range of international standards. Below, we have listed our available elastic rail clip types for global markets and domestic markets. See the following sections for details.

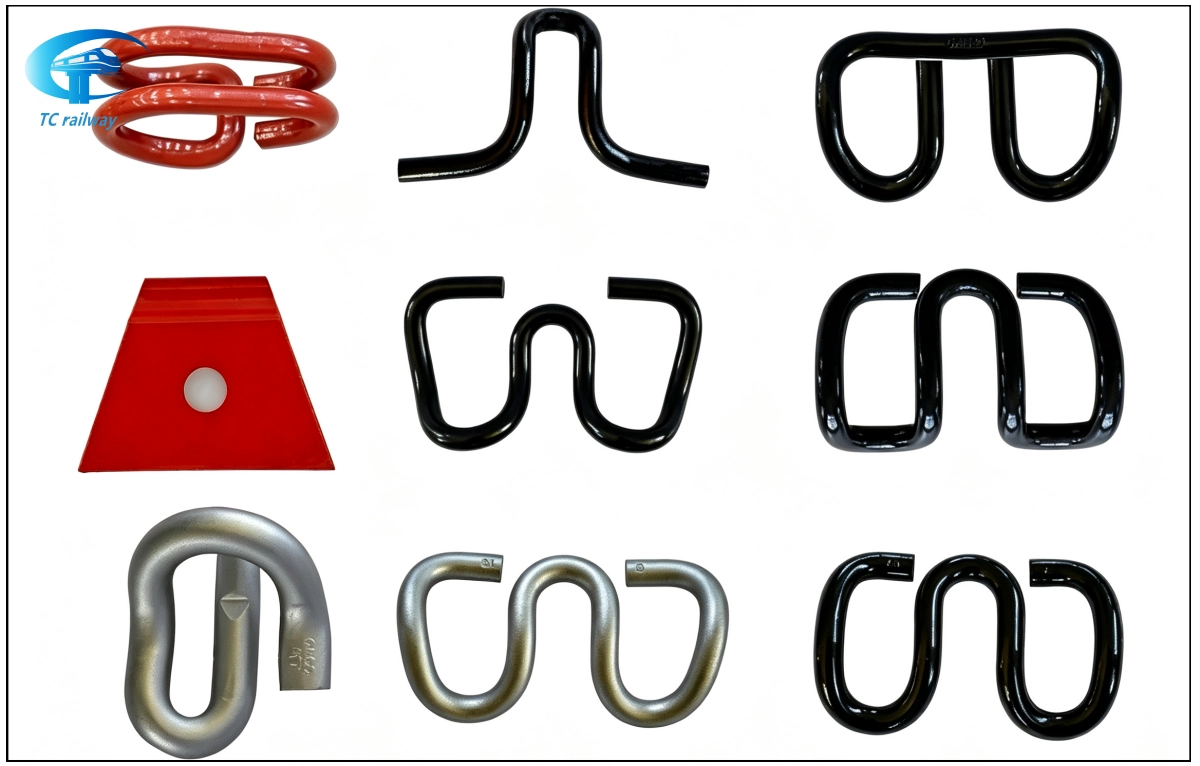

Rail Clip Types

1. Elastic Rail Clip Types Available from Our Factory for Global Markets

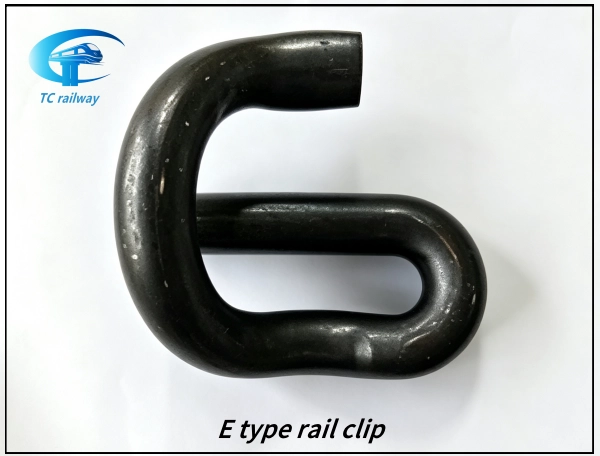

a. E-Type Rail Clip

Our E‑type rail clips are made of high‑quality spring steel, providing stable, long‑lasting clamping force. Their unique spring structure firmly secures the rail, allows minor controlled displacement, effectively absorbs operational vibration and impact, maintains stable track geometry, and prolongs rail service life. And our E‑type rail clips have the features of simple structure, low manufacturing cost, high fracture resistance, excellent vibration‑damping performance, reliable gauge stability and low maintenance cost.

They also withstand complex working conditions including extreme temperature variations, heavy loads, moisture and corrosion, delivering consistent and reliable performance. They are compatible with various types of railway sleepers and are one of the most widely‑used, highly cost‑effective elastic rail fasteners worldwide. We supply various E‑type rail clips, including E1609, E1809, E1813, E2001, E2007, E2009, E2055, E2056, E2063, as well as custom elastic rail clips manufactured to clients’ drawings and specifications.

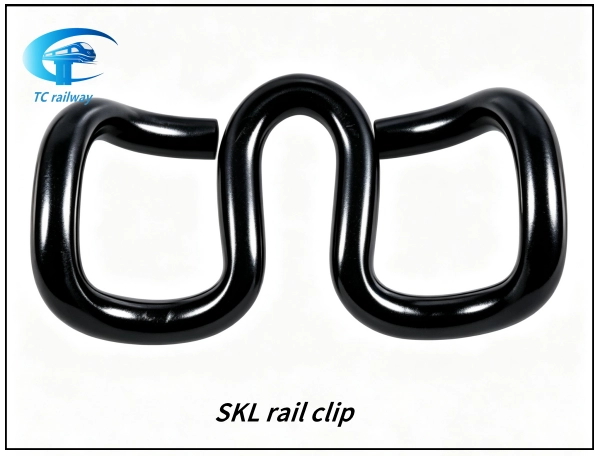

b. SKL Tension Clamp

Our SKL tension clamps are mainly used for railway concrete sleepers and concrete switch sleepers compared with E‑type rail clips. SKL tension clamps are kind of Ω‑ring‑shaped elastic fasteners. They exert clamping force on the rail foot via spring tension, damp train‑induced vibration and shock, and accommodate minor rail displacement.

In combination with plastic dowels, they achieve electrical isolation, sustain a consistent track gauge, and resist lateral rail forces and overturning moments. They find wide application in turnouts under complex stress conditions, high‑speed railways, heavy‑haul lines and metro lines. Anti‑corrosion treatments such as hot‑dip galvanizing and protective coatings can be provided according to customer requirements for our SKL elastic rail clips. We supply various E‑type rail clips, including SKL1, SKL3, SKL12, SKL14, SKL21, SKL30, and custom SKL rail clips manufactured to clients’ drawings and specifications.

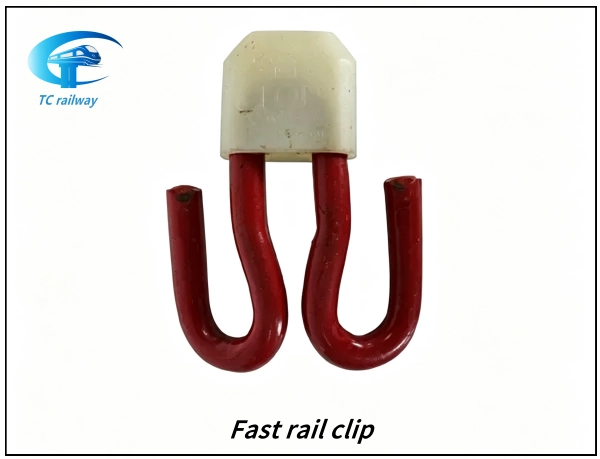

c. Fast Rail Clip

Fast rail clips that we manufactured require no bolt‑tightening, and they are snapped directly into place with dedicated tools. They feature rapid assembly and disassembly, high installation efficiency, and track‑gauge adjustment capability. These Fast rail clips are compatible with railway concrete sleepers as well as steel sleepers. They find wide application in high‑speed railways, metro lines and heavy‑haul lines, and are ideal for large‑scale mechanized track‑laying. And we can manufacture custom SKL rail clips manufactured to clients’ drawings and specifications.

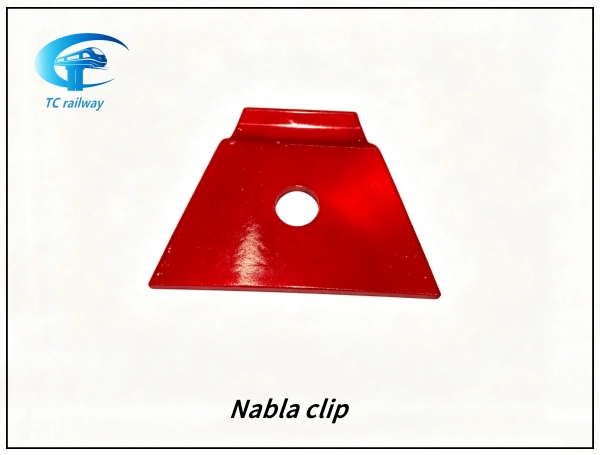

d. Nabla Clip

Nabla Clip manufactured by us is a V‑shaped elastic spring‑steel fastener. When bolts are tightened, its spring plate generates elastic clamping pressure to secure the rail foot. It enables dual adjustment of track gauge and rail height, delivers superior electrical insulation and offers high resistance to lateral forces. Our Nabla clip is especially suited for small‑radius curved tracks. It also finds wide application in concrete‑sleeper high‑speed railways, metro, tram, bridge and tunnel lines. It dampens vibration and noise, keeps consistent track gauge and requires low-maintenance operation. And we can manufacture custom nabla clips manufactured to clients’ drawings and specifications.

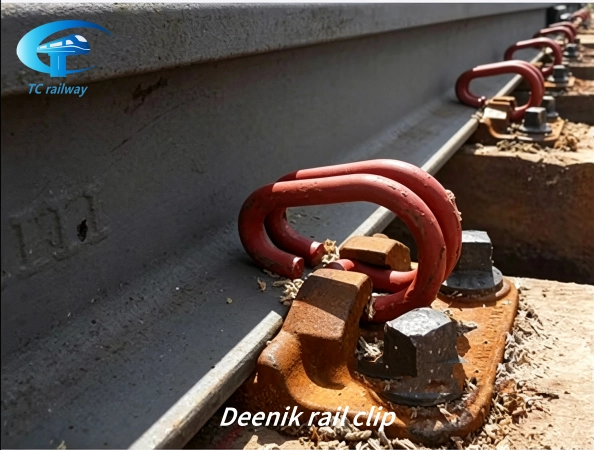

e. Deenik Clip

Deenik clips manufactured by us feature an asymmetrical bending structure: one end applies clamping pressure to the rail foot, while the other locks into the slot of the pre-embedded iron chair. They are typically assembled with cast-iron shoulders and ribbed base plates. It features uniform stress distribution, excellent elasticity, long anti‑fatigue service life, as well as easy installation and maintenance.

It delivers outstanding gauge‑holding performance under high‑temperature conditions, and effectively absorbs vibration and impact generated by running trains. They are mainly suitable for concrete sleepers and find wide application on railway lines across Europe (the Netherlands, Germany) and South America. And we can manufacture custom deenik clips manufactured to clients’ drawings and specifications.

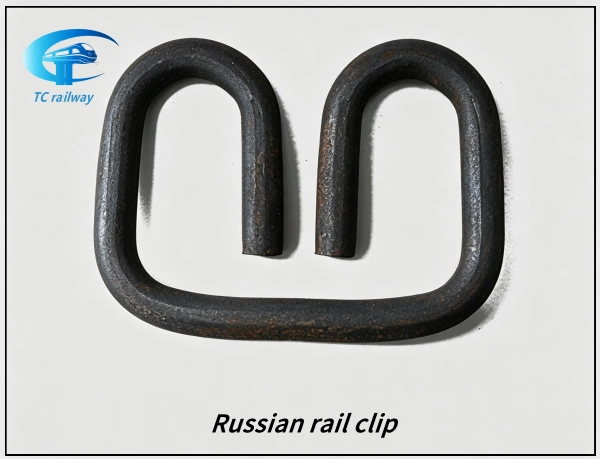

f. Russian Rail Clip

Russian rail clips are elastic rail clips mainly used for Russian railway lines. All our Russian rail clips are manufactured in full compliance with Russian GOST standards. They deliver outstanding durability and reliable performance. Its advantages include high reliability, guaranteed track‑gauge stability, simple structure, low material consumption, and easy installation.

And its core advantage lies in excellent low‑temperature resistance and stable elasticity under extreme cold conditions. It is mainly suited for concrete sleepers applications. As a professional manufacturer and supplier of elastic rail clip for Russia railway fastener system, we can supply clients with high‑quality, reliable and durable railway elastic strip products to guarantee the stability and safety of railway systems. Feel free to contact us.

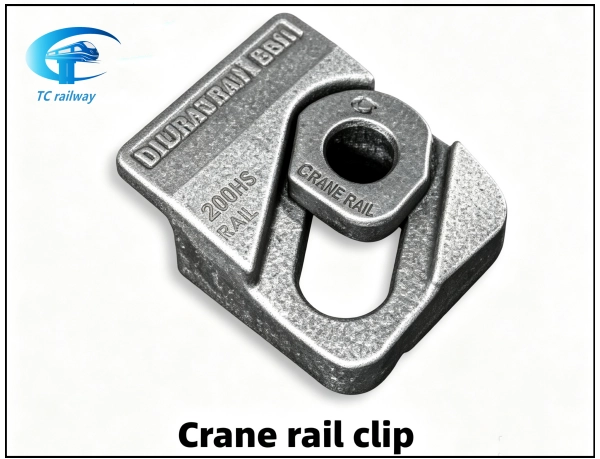

g. Crane Rail Clip

Crane rail clips manufactured by us are a type of rail fastener within the rail fastening system. They fix rails to sleepers or sleeper pads, maintain rail spacing and prevent rail displacement. The core component‑our crane rail clamp plates are manufactured by forging or casting. These plates generate rigid clamping force upon bolt tightening to hold the rail firmly in position. Featuring good cost‑efficiency and consistent performance, they are extensively applied in crane rail fastening systems. They find wide use across multiple industries including container‑handling cranes, power‑plant coal unloaders, steel‑mill cranes, workshop overhead cranes and shipyard gantry cranes.

2. Elastic Rail Clip Types Available from Our Factory for China Market

a. Type A and Type B Rail Clips for Type I Fastening System

We manufacture the rail clips for Type I fastening system, they are available in two variants: Type A and Type B.

b. Rail Clips for Type II Fastening System

We manufacture the rail clip for Type II fastening system, they deliver a fastening force of 10 kN, and a deflection of 10 mm.

c. Rail Clips for Type III Fastening System

We manufacture the spring clips for the Type‑III fastening system from 60Si2Mn, or 620 mm hot‑rolled spring steel, with performance equal or superior to 60Si2Mn.

d. W1‑type and X2‑type Rail Clip

We manufacture spring clips for high speed WJ‑7 and WJ‑8 rail fastening systems, they are available in two variants: W1‑type and X2‑type. The W1‑type is used for general sections, while the X2‑type is used for low‑resistance sections.

e. W2‑type and X3‑type Rail Clip

We manufacture spring clips for the high speed V‑type rail fastening system, they are available in two variants: W2‑type and X3‑type. The W2‑type rail clip is used for general sections, while the X3‑type rail clip is used for low‑resistance sections.

f. W4‑Type Rail Clip

We manufacture W4‑type spring clips, which are suitable for Type‑VI and Type‑VII rail fastening systems.

g. W5‑Type Rail Clip

We manufacture W5‑type spring clips, which are applicable on conventional tracks, viaduct seamless tracks and other scenarios.

h. Intermediate DI Spring Clip

Our intermediate DI spring clips feature a fastening force of 12‑13 kN, and a minimum fatigue life of 3 million cycles for each single clip.

Reliable Rail Clip Manufacturer

a. High‑efficiency Production Capacity

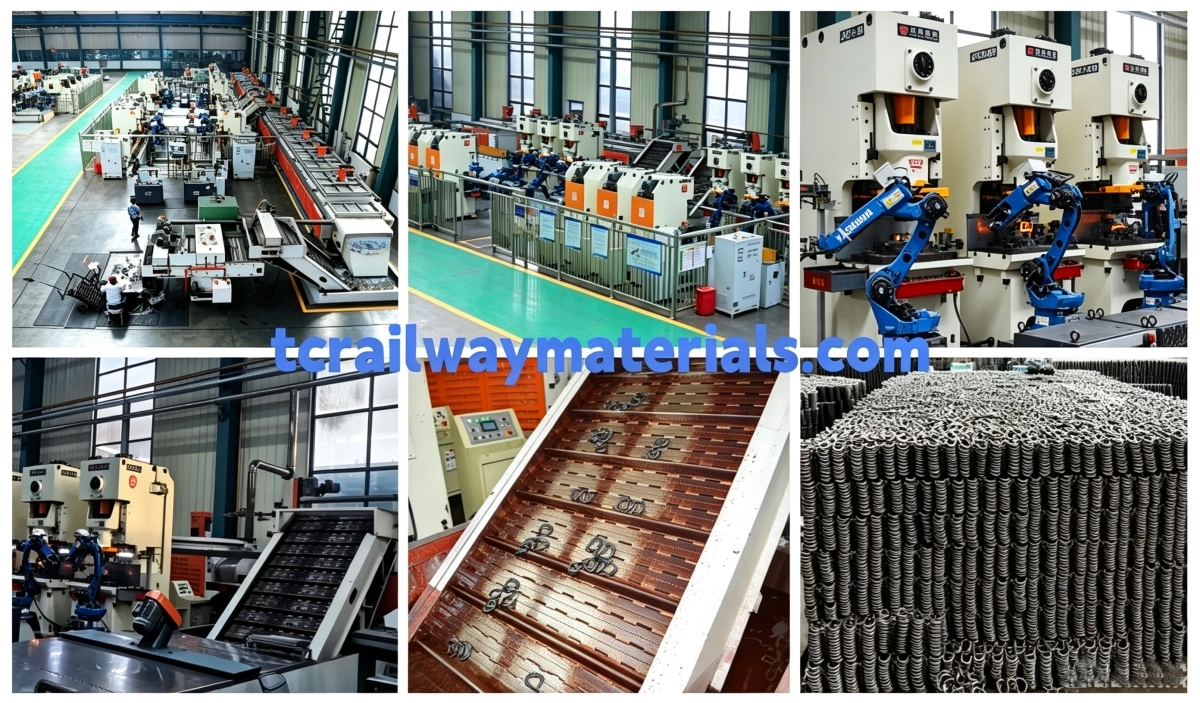

We have multiple automated elastic rail‑clip production lines, which can manufacture a wide variety of spring‑clip models via interchangeable mold sets. Our daily production capacity is up to 30,000 pieces.

b. Full Range of Rail Elastic Clips

We are capable of supplying a full range of rail clips for rail fastening systems, including E‑type clips, PR clips, SKL rail clips, Fastclip, Deenik clips, Nabla clips, Russian GOST rail clips, Korean rail clips, and custom rail clips manufactured per clients’ drawings and specifications.

c. Strict Fatigue Performance Verification

We are also equipped with dedicated rail‑clip fatigue testing machines; they simulate cyclic loads on actual railway tracks to verify fatigue life and clamping‑force attenuation, ensuring that each batch of rail clips withstands long‑term railway service.

d. Authoritative Enterprise Certifications

We are ISO 9001, ISO 14001 and OHSAS 18001‑certified. And we carry out strict inspections for each product, and all production steps follow the specifications of the ISO quality management system.

e. Comprehensive Quality Assurance

We attach great importance to quality inspections throughout every production stage. We conduct full testing of raw‑material performance prior to processing, check clip dimensions after forming, and evaluate the overall performance of finished products following heat treatment and anti‑corrosion treatment. Multiple inspection rounds ensure our compliance with stringent quality standards and guarantee stable performance for all rail clips. Do not hesitate to reach out for any of your requirements.
